| UHF Satelliten-Frequenzliste |
Autor: Maik Hermenau |
|
HF-Satliste | VHF-Satliste | UHF-Satliste | S-Band-Satliste | Bemannte Raumfahrt und Trägersysteme |
| Frequenz in MHz | Objekt Nr. | Satellit | Signalparameter | Hör-Status |
| 300.345 | - | unbk. Satellit | 1,7s Durchgänge | |
| 306.775 | 22698 | RADCAL / P92-1 | ||
| 25551 | MightySat-1 / P99-1 | 9600bps BPSK | ||
|
|
||||
| 324.000 | 31 | Transit-1B | ||
| 45 | Transit-2A | 50mW | ||
| 87 | Transit-3B / Lofti-1 | |||
| 202 | Transit-4B / TRAAC | |||
| 446 | Anna-1B | 225mW | ||
| 670 | Transit-5B-1 / SN-39 | |||
| 705 | Transit-5E-3 / SN-41 | |||
| 899 | Explorer-22 / BE-2 | Ionospheric Beacon 100mW | ||
| 1726 | Explorer-29 / GEOS-1 | Ionospheric Beacon 450mW | ||
| 3093 | Explorer-36 / GEOS-2 | Ionospheric Beacon 400mW | ||
| 7734 | GEOS-3 | 400mW | ||
| 11604 | Magsat | |||
|
|
||||
| 328.250 | 20561 |
Stacksat
TEX / USA 57 /
P87-2 (Transceiver EXperiment) |
Sender
für Studien der Ionosphäre BW:38kHz, 1,8s aktiv -> 72s Pause |
|
| 328.325 | - | unbk. Satellit im HEO | ||
| 335.000 | 7369 | NNTS-1 / Timation-3 | ||
|
|
||||
| 360.000 | 2195 | OGO-3 | Ionospheric Beacon | |
| 360.090 | 899 | Explorer-22 / BE-2 | Ionospheric Beacon 100mW | |
| 1328 | Explorer-27 / BE-3 | Ionospheric Beacon 100mW | ||
|
|
||||
| 378.000 | DeepSpace | Pioneer-5 | 5/150W | |
| 380.9633 | DeepSpace | Viking Landers Mars | ||
|
387-390 MHz Satellitenband |
||||
| 387.100 | 28493 | NanoSat-1 | 24kBit/s GMSK 5W | |

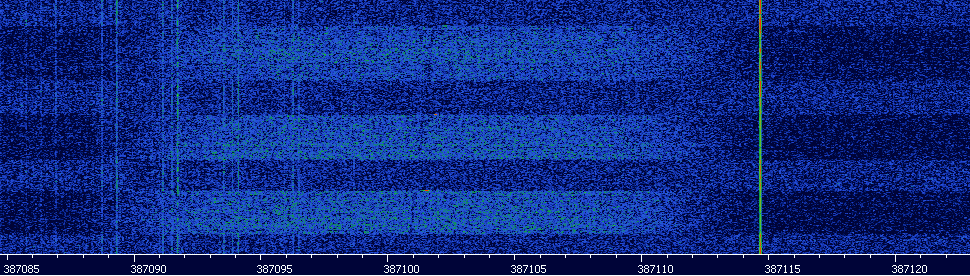

| 35685 | NanoSat-1B | 40kBit/s 4,5W | 03.04.15 gehört | |
| 387.175 | - | Gonez M/Strela 3M/Rodnik-Serie | 2400bps BPSK ID-Beeps 10W | |

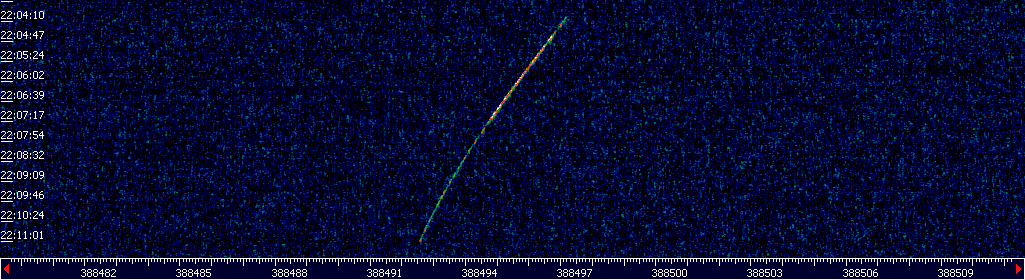

| 388.495 | 2013-072 | unbk. Satellit des Starts 2013-072 | stiller Träger mit Durchgängen von ~7min | 16.03.17 gehört |
| 387.609 | 8860 | Wideband / P76-5 | Beacon Experiment 400mW | |

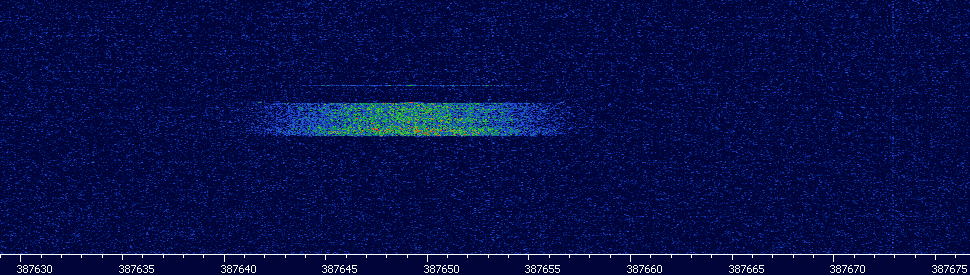

| 387.6525 | 40553 | Gonez D1M-12 | 2400/4800/9600bps GMSK 10W | 13.10.15 gehört |
| 388.6875 | - | Gonez M/Strela 3M/Rodnik-Serie | 2400bps BPSK ID-Beeps 10W | 07.08.12 gehört |
| 35499 | Kosmos-2452 (Strela 3M/Rodnik-Serie) | |||
| 37153 | Kosmos-2467 (Strela 3-Serie) | 07.08.12 gehört | ||
| 37154 | Kosmos-2468 (Strela 3M/Rodnik-Serie) | 06.08.12 gehört | ||
| 38734 | Gonez D1M-3 | 07.08.12 gehört | ||
| 38736 | Gonez D1M-4 | 07.08.12 gehört | ||
| 389.075 | - | LatinSat | ||
| 389.125 | - | |||
| 389.175 | - | |||
| 389.225 | - | |||
| 389.300 | 39761 | Kosmos 2496 (Strela 3M/Rodnik-Serie) | Tracking Beacon | |
| 39762 | Kosmos 2497 (Strela 3M/Rodnik-Serie) | |||
| 39763 | Kosmos 2498 (Strela 3M/Rodnik-Serie) | |||
| 40920 | Kosmos 2507 (Strela 3M/Rodnik-Serie) | |||
| 40921 | Kosmos 2508 (Strela 3M/Rodnik-Serie) | |||
| 40922 | Kosmos 2509 (Strela 3M/Rodnik-Serie) | |||
| 389.325 | - | LatinSat | ||
| 389.375 | - | |||
| 389.425 | - | |||
| 389.475 | - | |||
|
|
||||
| 390.082 | 8860 | Wideband / P76-5 | Beacon Experiment 200mW | |
| 14154 | HiLat (High Latitude Reseach Satellite) / P83-1 | Beacon Experiment | ||
| 17070 | Polar BEAR (Beacon Experiment and Auroral Research) / P87-1 | Beacon Experiment | ||
|
380-410 MHz chinesischer Bereich für Weltraumfunk |
||||
| 393.675 | - | FSW (Fanhui Shi Weixing) | TLM (Rückkehrfähiger Spionage-Foto-Satellit mit Filmkapsel) | |
|
399.70-400.05 / 400.05-400.15 / 400.15-402.00 MHz Satellitenbänder |
||||
| 399.550 | 36519 | Kosmos-2463 (Parus-Serie) | Tracking Beacon Seitenbänder auf ±143; ±286; ±429kHz | 10.06.12 gehört |
| 399.760 | 21937 | Kosmos-2184 (Parus-Serie) | Tracking Beacon | |
| 399.840 | 13033 | Kosmos-1333 (Parus-Serie) | Tracking Beacon | |
| 21666 | Kosmos-2154 (Parus-Serie) | |||
| 21875 | Kosmos-2180 (Parus-Serie) | |||
| 22207 | Kosmos-2218 (Parus-Serie) | |||
| 22590 | Kosmos-2239 (Parus-Serie) | |||
| 22888 | Kosmos-2266 (Parus-Serie) | |||
| 35635 | Kosmos-2454 (Parus-Serie) | |||
| 36519 | Kosmos-2463 (Parus-Serie) | |||
| 399.920 | 2016 | D-1A / Diapason | Tracking Beacon 100mW | |
| 2674 | D1-C / Diademe-1 | |||
| 2680 | D1-D / Diademe-2 | |||
| 22006 | Kosmos-2195 (Parus-Serie) | Tracking Beacon | ||
| 22825 | Eyesat-A / AO-27 | 600mW/2/4W | ||
| 28380 | Kosmos-2407 (Parus-Serie) | Tracking Beacon | ||
| 28521 | Kosmos-2414 (Parus-Serie) | |||
| 42844 | NanoACE | 9600bps GMSK 2W | ||
| 399.940 | 19826 | Kosmos-2004 (Parus-Serie) | Tracking Beacon | |
| 22207 | Kosmos-2218 (Parus-Serie) | |||
| 399.942 | 18362 | Transit O-29 / NIMS-29 | Tracking Beacon 1,25W | |
| 19071 | Transit O-32 / NIMS-32 | Tracking Beacon 2W | ||
| 399.968 | 6173 | TRIAD | Tracking Beacon 6W | |
| 8361 | TIP-2 (Transit Improvement Program) | Tracking Beacon 6W | ||
| 9403 | TIP-3 (Transit Improvement Program) | |||
| 12458 | NOVA-I | Tracking Beacon 5W | ||
| 15362 | NOVA-III | Tracking Beacon 5W | ||
| 18361 | Transit O-27 / NIMS-27 | Tracking Beacon 1,25W | ||
| 19070 | Transit O-23 / NIMS-23 | Tracking Beacon 1,25W | ||
| 19223 | NOVA-II | Tracking Beacon 5W | ||
| 19419 | Transit O-25 / NIMS-25 | Tracking Beacon 1,25W | ||
| 19420 | Transit O-31 / NIMS-31 | Tracking Beacon 2W | ||
| 399.970 | 20804 | Kosmos-2100 (Parus-Serie) | Tracking Beacon | |
| 21796 | Kosmos-2173 (Parus-Serie) | |||
| 400.000 | - | Kosmos (Parus-Serie) | Tracking Beacon | |
| 2195 | OGO-3 | TLM 500mW, Tracking Beacon 4W | ||
| 14450 | Kosmos-1506 (Parus-Serie) | Tracking Beacon | ||
| 14973 | Kosmos-1553 (Parus-Serie) | |||
| 15055 | Kosmos-1574 (Parus-Serie) | |||
| 15595 | Geosat | Tracking Beacon | ||
| 15751 | Kosmos-1655 (Parus-Serie) | Tracking Beacon | ||
| 17480 | Astro-3 / Ginga | TLM | ||
| 20103 | Nadeshda-1 (Zikada-Serie) | Tracking Beacon | ||
| 20508 | Nadeshda-2 (Zikada-Serie) | |||
| 21152 | Nadeshda-3 (Zikada-Serie) | |||
| 23179 | Nadeshda-4 (Zikada-Serie) | |||
| 25567 | Nadeshda-5 (Zikada-Serie) | |||
| 26384 | Nadeshda-6 (Zikada-Serie) | |||
| 27534 | Nadeshda-7 (Zikada-Serie) | |||
| 25735 | Terriers | |||
| 23463 | Zikada (Zikada-Serie) | Tracking Beacon | ||
| 400.020 | - | Kosmos | Tracking Beacon | |
| 400.025 | 22825 | Eyesat-A / AO-27 | 600mW/2/4W | |
| 400.030 | - | KH-11 | Tracking Beacon | |
| 42793 | CICERO-6 | TT&C 9600bps GMSK 1W | ||
| 42827 | CICERO-1 | |||
| 42836 | CICERO-3 | |||
| 42849 | CICERO-2 | |||
| 400.032 | - | CERTO (Coherent Electromagnetic Radio Tomography) | ||
| 26930 | Picosat-9 / P97-1 | Tracking Beacon 1W | ||
| 29047 | FormoSat-3A / COSMIC-3A | |||
| 29048 | FormoSat-3B / COSMIC-3B | |||
| 29049 | FormoSat-3C / COSMIC-3C | |||
| 29050 | FormoSat-3D / COSMIC-3D | |||
| 29051 | FormoSat-3E / COSMIC-3E | |||
| 29052 | FormoSat-3F / COSMIC-3F | |||
| 25157 | GFO 1 / Geosat Follow-On | |||
| 22698 | RADCAL / P92-1 | |||
| 32765 | C/NOFS / P00-3 | |||
| 30775 | STPSat-1 | |||
| 25991 | DMSP F15 / USA 147 | 31.10.17 gehört | ||
| 39265 | Cassiope-1 | 23.10.18 gehört | ||
| 400.033 | 25634 | Argos / P91-1 | 720-2560bps | |
| 400.0375 | 31122 | CSTB-1 (CubeSat TestBed) | 1200bps AFSK AX.25 1W | |
| 400.080 | 22487 | Kosmos-2233 (Parus-Serie) | Tracking Beacon | |
| 32052 | Kosmos-2429 (Parus-Serie) | |||
|
400.100 (400.075 - 400.125) |
23545 | Orbcomm FM-1 | Tracking Beacon 1W | |
| 25159 | Orbcomm FM-4 | 05.08.12 gehört | ||
| 25119 | Orbcomm FM-7 | |||
| 25114 | Orbcomm FM-11 | |||

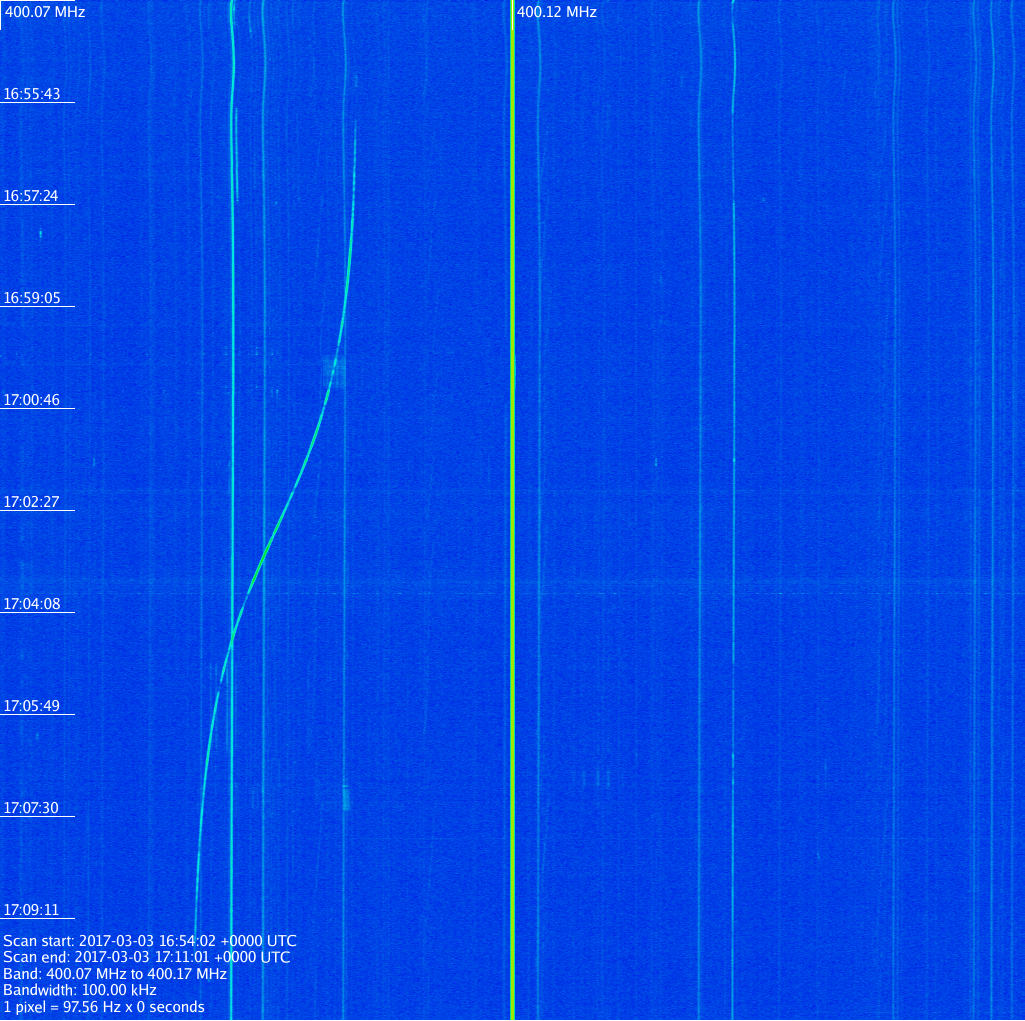

| 25984 | Orbcomm FM-36 | 31.10.17 gehört | ||
| 400.150 | 39404 | Firefly | ||

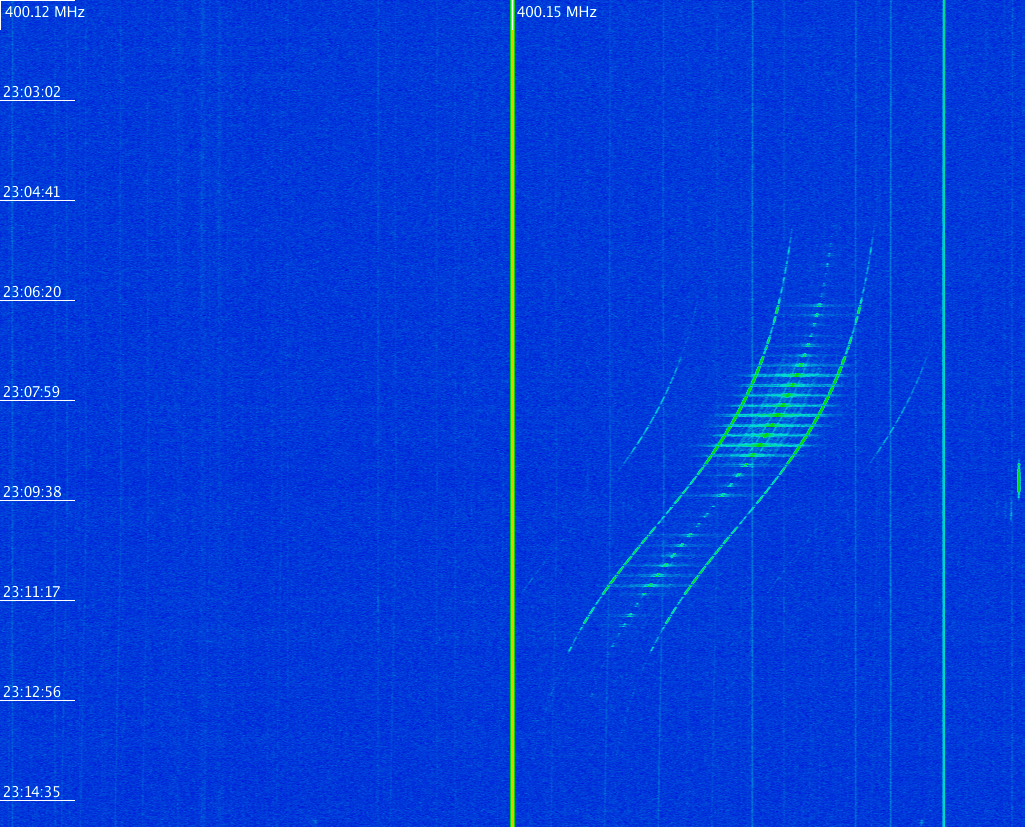

| 400.160 | 2018-102 | ??? | 14.12.18 gehört | |
| 400.170 | 40039 | Perseus-M1 | 9600bps GFSK (G3RUH-Standard) 1W im 21s Intervall | 23.10.18 gehört |
| 400.175 | 25019 | DSCS 3-F10 / USA 135 | ||
| 42846 | Corvus BC-2 | 19,2kBit/s (38400bps GMSK 2W) | ||
| 42847 | Corvus BC-1 | |||
| 400.180 | 37222 | STPSat-2 / USA 217 | ODTML (Ocean Data Telemetry MicroSat Link) im 15s Intervall | 08.12.13 gehört |
| 400.190 | 4801 | Peole | 48bps 4W | |
| 400.200 | 23606 | Cerise | ||

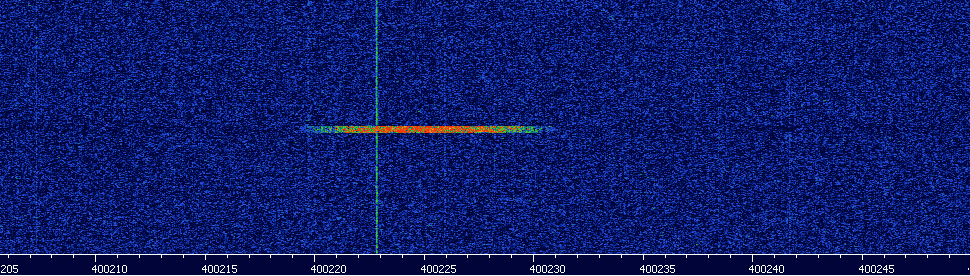

| 400.220 | 40037 | Perseus-M2 | 9600bps GFSK (G3RUH-Standard) 1W im 21s Intervall | 23.10.18 gehört |
| 400.240 | 24292 | Magion-5 | ||
| 400.249 | 3138 | OGO-5 | TLM 4W | |
| 3986 | OGO-6 | |||
| 400.250 | 879 | OGO-1 | TLM 4W | |
| 1620 | OGO-2 | |||
| 2195 | OGO-3 | |||
| 2895 | OGO-4 | |||

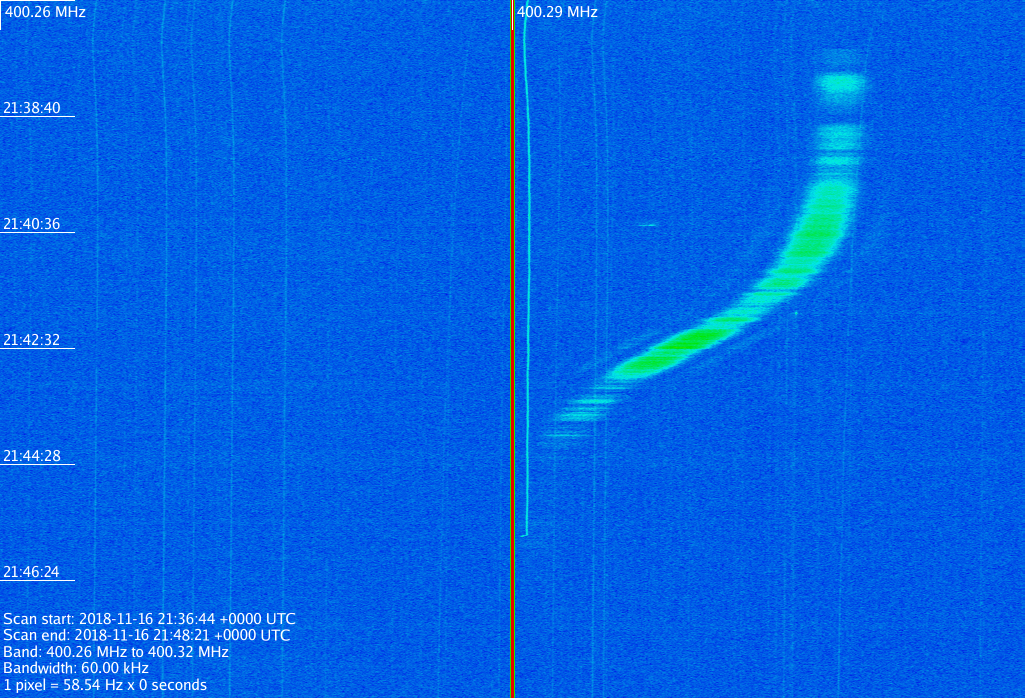

| 400.300 | 42000 | DIDO-2 | 16.11.18 gehört | |
| 42834 | MKA-N1 | 23.10.18 gehört | ||
| 400.326 | 25394 | Resurs O1-N4 | LLMS (Little Leo Messaging System) | |
|
400.328 (400.150 - 400.505) |
25991 | DMSP F15 / USA 147 | RDS (Real-time Data Smooth) | |
| (400.385 - 400.415) | 27598 | FedSat-1 | ||
| 400.400 | 27945 | KaistSat-4 / Kitsat-4 | 1000bps BPSK (Backup für das S-Band) | |
| 400.450 | 7122 | MS-T2 / Tansei-2 | TLM 100mW | |
| 7671 | Taiyo / SRATS | TLM 100mW | ||
| 10664 | EXOS-A / Kyokko | TLM 100mW | ||
| 11272 | CORSA-B / Hakucho | 100mW | ||
| 11706 | MS-T4 / Tansei-4 | TLM | ||
| 12307 | Astro-1 / Hinotori | TLM | ||
| 19822 | EXOS-D / Akebono | Tracking Beacon, TLM Seitenbänder auf ±5 und ±10kHz | 10.10.12 gehört | |
| 400.470 | 26064 | FalconSat | 9600bps GMSK 5W | |
| 400.4971 | 4952 | MS-T1 / Tansei-1 | TLM 45mW | |
| 400.500 | 4690 | OFO-1 | Daten 10W | |
| 6152 | Denpa / REXS | TLM 45mW | ||
| 9841 | MS-T3 / Tansei-3 | TLM | ||
| 11027 | EXOS-B / Jikiken | TLM PCM 500mW/2W | ||
|
400.5225 (400.505 - 400.540) |
- | AprizeSat | 2400bps FSK 5W | |
| 400.550 | 2142 | OAO-1 | 50kBit/s BW:300kHz 8W | |
| 3597 | OAO-2 / Stargazer | Daten 7W | ||
| 6153 | OAO-3 / Copernikus | Daten 10W | ||
| 22161 | Freja | 1200bps | ||
| 24954 | Faisat-2V / Vitasat-1R | 4800/9600bps GMSK 5-15W | ||
| 23464 | Astrid-1 | 8000bps BPSK 2W | ||
| 26621 | Munin | 3W | ||
| 22827 | HealthSat-2 | 9600/38400bps CPFSK AX.25 | 30.11.04 gehört | |

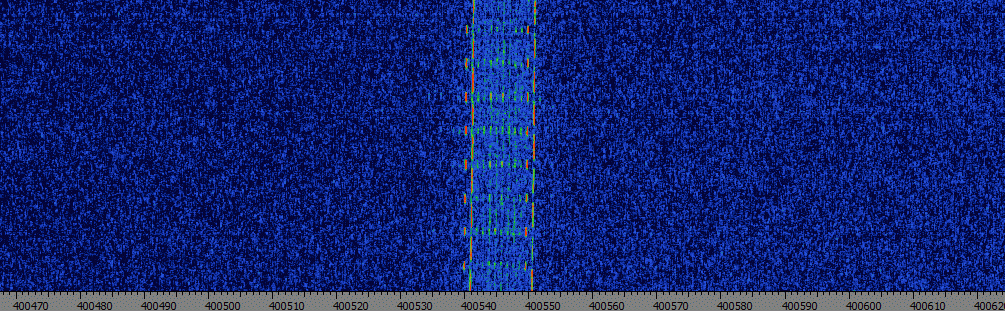

| 36599 | PRISMA (Mango) | Inter-Satellite-Link zwischen beiden Satelliten 9600bps 2W | 29.05.12 gehört | |
| 36827 | PRISMA (Tango) | |||
| 36519 | Kosmos-2463 (Parus-Serie) | Tracking Beacon, Seitenbänder auf ±143; ±286; ±429kHz | 10.06.12 gehört | |
|
400.5575 (400.540 - 400.575) |
- | AprizeSat | 2400bps FSK 5W | |
| 39425 | AprizeSat-8 | 2400bps FSK 5W | ||
| 40018 | AprizeSat-9 | 2400bps FSK 5W | ||
| 400.570 | 11110 | Magion-1 | TLM 1.5W | |
| 23646 | Magion-4 | |||
| 24292 | Magion-5 | |||
| 400.575 | 41605 | M3MSat | LDRS (Low Data Rate Service), Backup Downlink | |
| 400.586 | - | unbk. Satellit | 2400bps FSK (~99min pro Umlauf) | |
|
400.5925 (400.575 - 400.610) |
- | AprizeSat | 2400bps FSK 5W | |
| 37792 | AprizeSat-5 | 2400bps FSK 5W | 27.02.17 gehört | |
| 37793 | AprizeSat-6 | 2400bps FSK 5W | ||

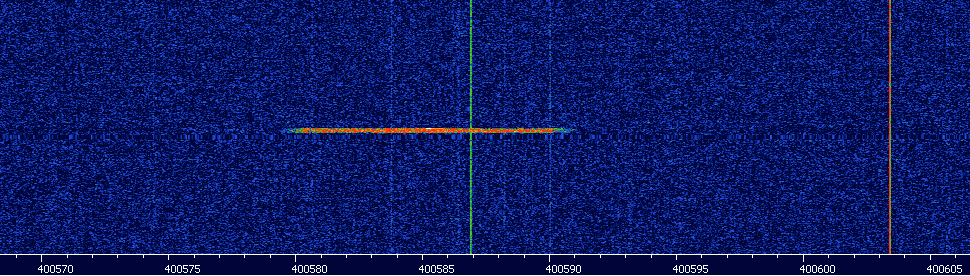

| 39416 | AprizeSat-7 | 2400bps FSK 5W | 15.10.15 gehört | |
| 40019 | AprizeSat-10 | 2400bps FSK 5W | ||
| 400.594 | 28366 | AprizeSat-2 | 2400bps FSK 5W | 09.08.10 gehört |
| 400.596 | 28372 | AprizeSat-1 | 2400bps FSK 5W | 09.01.10 gehört |
| 400.600 | 23465 | Faisat-1 | ||
| 400.620 | 24954 | Faisat-2V / Vitasat-1R | 4800/9600bps GMSK 5-15W | |
|
400.6275 (400.610 - 400.645) |
- | AprizeSat | 2400bps FSK 5W | |
| 400.650 | 3338 | Explorer-40 / Injun-5 | 800mW | |
| 7325 | Explorer-52 / Hawkeye | TLM 100bps 1W | ||
| 400.680 | 26064 | FalconSat | 9600bps GMSK 5W | |
| 400.695 | 5485 | Shinsei / MS-F2 | TLM 45mW | |
| 400.775 | 2018-099 | SeaHawk-1 | 600bps GMSK CCSDS 4-10W | |
|
400.800 (400.750 - 400.850) |
25399 |
SAFIR-R02 (SAtellite For Information Relay) |
300/2400bps FSK | |
| 25167 | Kosmos-2349 (Kometa-Serie) | Tracking Beacon (Rückkehrfähiger Spionage-Foto-Satellit mit Filmkapsel, Funktionsende nach ca.45 Tagen) | ||
| 26552 | Kosmos-2373 (Kometa-Serie) | |||
| 28841 | Kosmos-2415 (Kometa-Serie) | 14.10.05 gehört | ||
| 38047 | VesselSat-2 | BW:250kHz 6W | ||
| 43157 | Kepler-1 / KIPP | 9600bps GFSK | ||

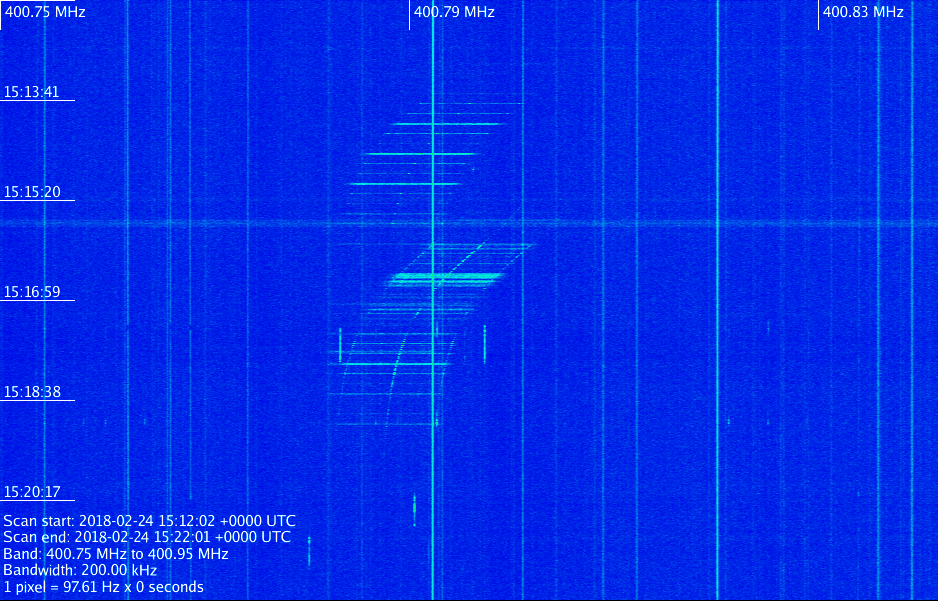

| 43196 | GOMX-4B | 19.10.18 gehört | ||
| 43197 | GOMX-4A | 19.10.18 gehört | ||

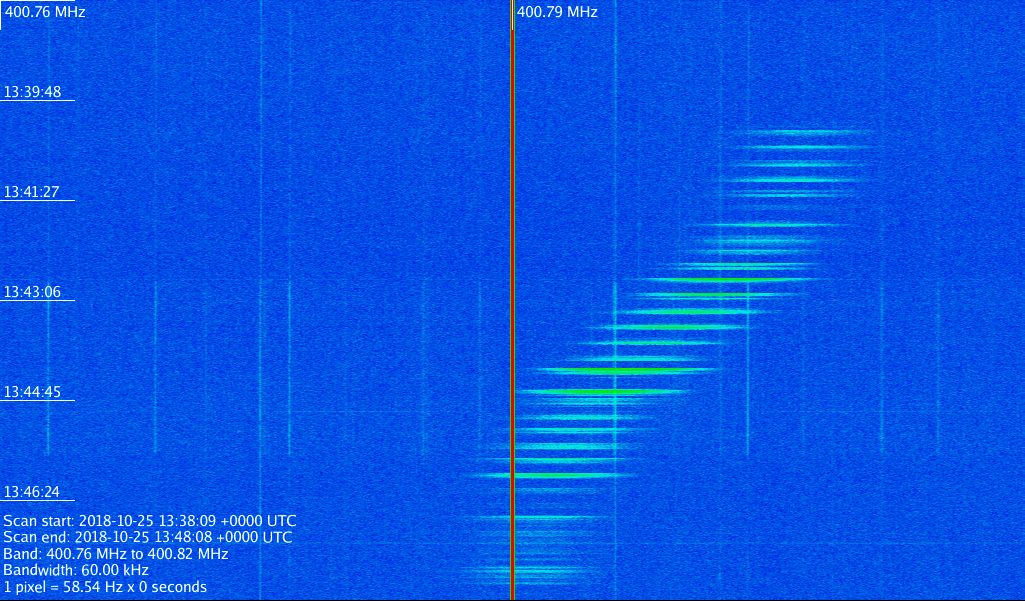

| 43548 | Raincube | 9600bps GFSK (G3RUH-Standard) | 10.12.18 gehört | |
|
400.822 (400.645 - 401.000) |
25991 | DMSP F15 / USA 147 | RDS (Real-time Data Smooth) | |
| 400.848 | 3986 | OGO-6 | TLM 500mW | |
| 400.849 | 3138 | OGO-5 | TLM 500mW | |
| 400.850 | 879 | OGO-1 | TLM 500mW | |
| 1620 | OGO-2 | TLM 500mW | ||
| 2895 | OGO-4 | TLM 500mW | ||
| 400.900 | 8709 | ISS-A / UME | TLM 700mW, Tracking Beacon 70mW | |
| 400.9008 | 10674 | ISS-B / UME-2 | 700mW | |
| 400.930 | 23646 | Magion-4 | ||
| 400.950 | 24291 | Microsat / MuSat-1 | ||
| 400.959 | 6686 | Explorer-49 / RAE-2 | TLM 3,6W | |
| 400.965 | 26889 | SimpleSat-1 | ||
| 401.000 | 37675 | Rassad-1 (Iran's zweiter Satellit) | ||
| 401.0125 | - | IDCSP | TLM 250mW | |
| 401.035 | 43144 | Tyvak-61C | 9600bps FSK | 25.10.18 gehört |
| 401.0375 | - | IDCSP | TLM 250mW | |
| 401.040 | 43729 | Hiber-1 ??? | 1200bps BPSK | 07.12.18 gehört |
| 401.0625 | - | IDCSP | TLM 250mW | |
| 401.070 |
2017-042 Objekt Q oder R |
MKA-N1 oder MKA-N2 | ||
| 401.0875 | - | IDCSP | TLM 250mW | |
| 401.1125 | - | IDCSP | ||
| 401.120 | 43737 | CICERO-8 | TT&C 9600bps GMSK 1W | 04.12.18 gehört |
| 401.130 |
2017-042 Objekt Q oder R |
MKA-N1 oder MKA-N2 | ||
| 401.1375 | - | IDCSP | TLM 250mW | |
| 401.150 | 28891 | TopSat | 12.08.10 gehört | |
| 42783 | Diamond Red | 25.02.18 gehört | ||
| 42785 | Diamond Green | 25.02.18 gehört | ||
| 42786 | Diamond Blue | 25.02.18 gehört | ||
| 401.160 | 43690 | CICERO-10 | TT&C 9600bps GMSK 1W | 14.11.18 gehört |
| 401.1625 | - | IDCSP | TLM 250mW | |
| 401.172 | 42015 | PEASSS | 1200bps BPSK im 12,5s Intervall [Heatmap] | 27.02.17 gehört |
| 401.1875 | - | IDCSP | TLM 250mW | |
|
401.200 (401.140, 401.175) |
43143 | CICERO-7 | TT&C 9600bps GMSK 1W | 06.11.18 gehört |
| 401.2125 | - | IDCSP | TLM 250mW | |
| 401.2375 | - | IDCSP | ||
| 401.300 | - | Flock | 2400bps (gemessen 2850bps, Shift 2500Hz) FSK 1.6W | |
| 39143 | Dove-1 | 2400bps FSK 1.6W sekundär TT&C | ||
| 39132 | Dove-2 | |||
| 39429 | Dove-3 | 27.12.13 gehört | ||
| 39434 | Dove-4 | |||
| 401.330 | - | Flock | 4800bps GFSK 1W | |
| 401.375 | 25756 | KitSat-3 | 1200bps AFSK | |
| 401.440 | 43440 | OVS-2A | 04.11.18 gehört | |
| 43761 | Hiber-2 ??? | 1200bps BPSK | 17.12.18 gehört | |
| (401.470 - 401.530) | 27838 | OrbView-3 | ||
| 401.500 | 25736 | MublCom | 5W | |
| 25123 | Earlybird | |||
| 3890 | Nimbus-3 | |||
| 4690 | OFO-1 | Daten 10W | ||
| 43130 | Arkyd-6A | 25.10.18 gehört | ||
| 2018-096 | BlackSky Global-1 | 440kBit/s 2W | 01.12.18 gehört | |
| 43812 | BlackSky Global-2 | |||
| 401.5275 | Fehlstart | Cosmos-1 / Solar Sail | ||
| 401.555 | 8860 | Wideband / P76-5 | Beacon Experiment 200mW | |
| 401.565 | 24920 | FORTE / P94-1 (Fast On-Orbit Recording of Transient Events) |
256-1024bps bi-phase BW:16kHz 1W Tracking Beacon |
30.10.12 gehört 23.10.18 gehört |
| 26102 |
MTI / P97-3 (Multispectral Thermal Imager) |
1W Seitenbänder auf ±248, ±496, ±744, +992kHz |
03.08.15 gehört | |
| 401.585 | DeepSpace | MRO (Mars Reconnaissance Orbiter) | 10W | |
| 401.600 | 40016 | SaudiSat-4 | ||
| 401.620 | 22490 | SCD-1 | ||
| 401.650 | 22490 | SCD-1 | ||
| 2018-102 | SaudiSat-5 ??? | 15.12.18 gehört | ||
| 401.715 | 22078 | S80/T | TLM 5W | |
| 401.7196 | 5435 | Eole-1 / CAS-A | ||
| 401.750 | 3669 | ISIS-1 | 4W | |
| 5104 | ISIS-2 | 4W | ||
| 401.850 | 2018-102 | SaudiSat-5 ??? | ||
| 402.000 | 39420 | OPTOS | 5kBit/s PM/PBSK | 15.10.15 gehört |
|
|
||||
| ~402.460 | 41873 | Lemur-2 Anubhavthakur | TLM (Health Beacon Signal) im 10s Intervall, Backup Downlink 9600bps GMSK 2W | |
| ~402.462 | 41596 | Lemur-2 Bridgeman | 28.07.16 gehört | |
| ~402.464 | 41485 | Lemur-2 TheresaCondor | 28.07.16 gehört | |
| ~402.490 | 41489 | Lemur-2 MeganKane | 28.07.16 gehört | |
| 41595 | Lemur-2 DrMuzz | 28.07.16 gehört | ||
| ~402.520 | 41872 | Lemur-2 Sokolsky | ||
| ~402.522 | 41598 | Lemur-2 CubeCheese | 28.07.16 gehört | |
| ~402.549 | 41488 | Lemur-2 NickAllain | 28.07.16 gehört | |
| ~402.575 | 41597 | Lemur-2 Nate | 08.08.16 gehört | |
| ~402.582 | 41874 | Lemur-2 Wingo | ||
| ~402.584 | 41490 | Lemur-2 JeffKuehne | 28.07.16 gehört | |
|
|
||||
| 412.080 | 3029 | ATS-3 | Ionospheric Beacon 150mW | |
| 413.028 | 8860 | Wideband / P76-5 | Beacon Experiment 400mW | |
| 14154 | HiLat (High Latitude Reseach Satellite) / P83-1 | Beacon Experiment | ||
| 17070 | Polar BEAR (Beacon Experiment and Auroral Research) / P87-1 | Beacon Experiment | ||
|
|
||||
| 421.000 | 87 | Transit-3B | ||
|
|
||||
| 422.135 | 31118 | SaudiSat-3 | 1200/9600bps AFSK AX.25 | |
|
|
||||
| 424.501 | 8860 | Wideband / P76-5 | Beacon Experiment 200mW | |
|
429-430 MHz Surrey Satellitenband |
||||
| 429.950 | 22829 | PoSat-1 / PO-28 | 9600bps FSK AX.25 | 31.05.06 gehört |
| 429.985 | 20437 | HealthSat-1 / UO-14 / UoSat-3 | 9600bps FSK AX.25 | |
|
|
||||
| 431.928 | 1902 | Oscar-4 | Beacon | |
| 431.933 - 431.943 | 1902 | Oscar-4 | Lineartransponder 3W | |
|
435.00-438.00 MHz 70-cm AFu Satellitenband |
||||
| (434.975 - 435.025) | 40071 | DX-1 | ||
| 435.000 | 34808 | ANUSAT | 1200bps AFSK 4W | |
| 40043 | TigriSat | 9600bps FSK | ||
| 435.020 | 38083 | PW-Sat | Morse-Kode 12wpm, 1200bps BPSK AX.25 | |
| 435.025 | 12888 | UO-9 / UoSat-1 | 1200bps AFSK Bell-202 ASCII 7Bit 650mW | |
| 14781 | UO-11 / UoSat-2 | |||
|
435.070 (435.067) |
20437 | UO-14 / UoSat-3 / HealthSat-1 |
9600bps FSK AX.25 FM-Phonie-Transponder 2-3W |
04.06.03 gehört |
| 435.080 | 43116 | INS-1C | 1200bps AFSK-Manchester | |
| 435.095 | 10703 | AO-8 | Morse-Kode, RTTY 100mW | |
| 435.100 | 6236 | AO-6 | Beacon 300mW | |
| 7530 | AO-7 | Morse-Kode 10/400mW | ||
| 30776 | FalconSat-3 | 9600/38400/76800bps GMSK AX.25, FM-Phonie-Transponder 7W | ||
| 435.100 - 435.200 | 10703 | AO-8 | Lineartransponder 1,5W | |
| 435.120 | 20438 | UO-15 / UoSat-4 | Beacon 10W | |
| 21575 | UO-22 / UoSat-5 |
1200bps AFSK Bell-202 ASCII 7Bit 9600bps FSK AX.25 2W |
||
| 22077 | KO-23 / Kitsat-A | 1200bps AFSK ASCII, 9600bps FSK AX.25 | ||
| 435.138 | 24305 | MO-30 / Unamsat-B | 1200bps BPSK AX.25 | |
| 435.153 | 28375 | AO-51 / Amsat Oscar-Echo |
9600/38400/57600bps FSK AX.25 1-6W FM-Phonie-Transponder (Sekundär) |
05.03.05 gehört 15.10.05 gehört |
| 435.175 | 22077 | KO-23 / Kitsat-A | 1200bps AFSK ASCII, 9600bps FSK AX.25 | |
| 22828 | KO-25 / Kitsat-B | 1200bps AFSK ASCII, 9600bps FSK AX.25 | ||
| 435.1755 | 39569 | LO-78 / LituanicaSat-1 | FM-Phonie-Transponder 150mW | |
| 435.200 | 2018-099 | Eaglet-1 | 9600bps TT&C | |
| 435.200 - 435.250 | 39152 | TurkSat-3USat | Lineartransponder | |
| 435.215 | 28523 | RS-23 / Tatiana | 2400bps Datenpakete ähnlich wie die vom RS-22 nur doppelt so schnell | 05.09.06 gehört |
| 32953 | RS-30 / Jubilee-Sputnik | Morse-Kode im 9s Intervall | 26.05.08 gehört | |
| 38051 | RS-39 / Tschibis-M | Morse-Kode, Datenpakete in DOKA-B | 26.01.12 gehört | |
| 39133 | RS-43 / AIST-2 | Morse-Kode, Datenpakete in DOKA-B | 22.04.13 gehört | |
| 435.225 | 25397 | GO-32 / Techsat-1B | 1200bps BPSK AX.25, 9600bps FSK AX.25 | 26.09.05 gehört |
| 26931 | NO-44 / PCSat |
1200bps AFSK AX.25, 9600bps FSK AX.25 APRS und TLM |
||
| 28375 | AO-51 / Amsat Oscar-Echo | FM-Phonie-Transponder 1-6W | ||
| 435.245 | 31130 | CAPE-1 (Cajun Advanced Picosatellite Experiment) |
Morse-Kode im 60s Intervall 400mW 9600bps FSK AX.25 1W |
|
| 435.250 | 22829 | PO-28 / PoSat-1 | 9600/38400bps FSK AX.25 | |
| 435.260 - 435.280 | DeepSpace | FO-82 / Shin-En-2 | Lineartransponder 400mW | |
| 435.265 | 35868 | RS-28 / Tatiana-2 | Morse-Kode, 2400bps Datenpakete | 26.09.09 gehört |
| 38735 | RS-40 / MiR / Jubilee-2 | Morse-Kode, Datenpakete in DOKA-B | 28.07.12 gehört | |
| 39492 | RS-41 / AIST-1 | Morse-Kode | 31.12.13 gehört | |
| 39133 | RS-43 / AIST-2 | Morse-Kode, Datenpakete in DOKA-B | 22.04.13 gehört | |
| 435.273 | 25544 | PCSat-2 / ISS | 1200bps AFSK AX.25, 9600bps FSK AX.25 im 10s Intervall, PSK-31 (max. bis 7min) 2W | 05.09.06 gehört |
| 435.275 | 27422 |
BO-48 / IDEFIX CU-2 (befindet sich an einer Ariane 42P Oberstufe) |
400bps BPSK, digitalisierte Sprachbotschaften 1,2W | 18.05.02 gehört |
| 31126 | MAST | 1200bps AFSK AX.25 1,5W | ||
| 37794 | SICH-2 | |||
| 2018-099 | PW-Sat-2 | 1200/9600bps BPSK (G3RUH-Scrambler) AX.25 | ||
| 435.280 | 22829 | PO-28 / PoSat-1 | 9600/38400bps FSK AX.25 | |
| 28373 | UniSat-3 | 9600bps GMSK 3W | 30.01.05 gehört | |
| 435.300 | 35870 | SO-67 / SumbandilaSat | Digitalker für max. 15s Wiedergabe 5W | |
| 435.302 | 28375 | AO-51 / Amsat Oscar-Echo |
FM-Phonie-Transponder 1-6W FM-PSK31 |
05.01.10 gehört 16.03.05 gehört |
| 435.315 | 32953 | RS-30 / Jubilee-Sputnik |
Morse-Kode im 9s Intervall 4800bps Datenpakete in DOKA-B |
29.01.12 gehört 05.01.10 gehört |
| 38051 | RS-39 / Tschibis-M |
Morse-Kode 9600bps Datenpakete in DOKA-B |
25.01.12 gehört 12.03.12 gehört |
|
| 41465 | RS-48 / AIST-2D | Morse-Kode, Datenpakete in DOKA-B | 29.04.16 gehört | |
| 435.319 (435.325) | 27560 | RS-20 / Moshaez-3 | Morse-Kode, Datenpakete in DOKA-B 2W | 11.01.03 gehört |
| 435.325 | 25397 | GO-32 / Techsat-1B | 1200bps BPSK AX.25, 9600bps FSK AX.25 | |
| 28893 | RS-25 / Sinah-1 |
Morse-Kode Datenpakete in DOKA-B |
26.12.05 gehört 07.02.06 gehört |
|
| 435.337 | 27394 | RS-21 / Kolibri-2000 | Morse-Kode, Datenpakete in DOKA-B | 03.05.02 gehört |
| 435.343 | 35870 | SO-67 / SumbandilaSat | FM-Phonie-Transponder, Parrot-Transponder (Papagei) für max. 20s Wiedergabe 5W | 13.04.11 gehört |
| 435.345 | 28893 | RS-25 / Sinah-1 | Morse-Kode, Datenpakete in DOKA-B | |
| 435.350 | 27939 | RS-22 / Moshaez-4 |
Morse-Kode Datenpakete in DOKA-N |
01.04.15 gehört 14.01.07 gehört |
| 40652 | USS Langley | FM-PSK31 | ||
| 40654 | NO-84 / PSat (ParkinsonSat) | FM-PSK31 | ||
| 43155 | Xiaoxiang-2 / TianYi-2 | 9600bps GMSK | ||
| 43192 | FengMaNiu-1 / FMN-1 | 9600bps BPSK | ||
| 435.353 | 28893 | RS-25 / Sinah-1 | Morse-Kode, Datenpakete in DOKA-B | 27.05.06 gehört |
| 435.365 | 35868 | RS-28 / Tatiana-2 | Morse-Kode, 2400bps Datenpakete | 19.09.09 gehört |
| 38735 | RS-40 / MiR / Jubilee-2 | Morse-Kode, Datenpakete in DOKA-B | 06.08.12 gehört | |
| 41465 | RS-48 / AIST-2D | Datenpakete in DOKA-B | 29.04.16 gehört | |
| 435.400 | Mond-Orbit | LO-94 / DSLWP-A2 (B) / LongJiang-2 | 500bps GMSK und JT4 | |
| 435.425 | Mond-Orbit | LO-93 / DSLWP-A1 (A) / LongJiang-1 | 500bps GMSK und JT4 | |
| 435.438 | 26609 | AO-40 / Phase-3D | Beacon | |
| 435.440 | 35869 | RS-38 / UGATU-Sat | Morse-Kode, Datenpakete in DOKA-B | 04.11.09 gehört |
| 435.465 | 39497 | RS-46 / Kosmos-2491 | Morse-Kode, Datenpakete in DOKA-B | 07.12.14 gehört |
| 39765 | RS-47 / Kosmos-2499 | Morse-Kode, Datenpakete in DOKA-B | 07.12.14 gehört | |
| 435.475 - 435.725 | 26609 | AO-40 / Phase-3D | Lineartransponder | |
| 435.490 | 35869 | RS-38 / UGATU-Sat | Morse-Kode, Datenpakete in DOKA-B | 05.01.10 gehört |
| 435.500 | 22828 | KO-25 / Kitsat-B | 1200bps AFSK ASCII, 9600bps FSK AX.25 | |
| 37794 | SICH-2 | |||
| 42016 | Al-Farabi-1 | 4800bps GMSK | ||
| 2018-099 | AISTECHSAT-2 oder Corvus-BC-4 ??? | |||
| 435.504 | 24744 | RS-16 / Seja | Morse-Kode 1,6W | |
| 435.515 | 39497 | RS-46 / Kosmos-2491 | Morse-Kode, Datenpakete in DOKA-B | 07.02.17 gehört |
| 435.525 | 43131 | PicSat | 1200bps BPSK Beacon, 9600bps BPSK AX25 Daten, FM-Phonie | |
| 43188 | D-Star One v.1.1 Phoenix | D-STAR-Phonie-Transponder 800mW | ||
| 43879 | D-Star ONE | D-STAR Parrot Repeater 800-1200mW | ||
| 435.548 | 24744 | RS-16 / Seja | Morse-Kode 1,6W | |
| 435.550 | 40017 | TabletSat-Aurora | 9600bps GMSK, D-STAR (4,8kBit/s GMSK) | |
| 43552 | EQUISat | Morse-Kode, 9600bps FSK AX.25 | ||
| 435.565 | 39497 | RS-46 / Kosmos-2491 | Morse-Kode, Datenpakete in DOKA-B | |
| 39765 | RS-47 / Kosmos-2499 | Morse-Kode, Datenpakete in DOKA-B | 07.12.14 gehört | |
| 435.570 | 43595 | RS13S / SiriusSat-1 | 4800bps GMSK (G3RUH-Standard) AX.25 | |
| 435.588 | 26609 | AO-40 / Phase-3D | Beacon | |
| 435.600 | 43880 | UWE-4 | 9600bps FSK AX.25 Digipeater | |
| 435.615 | 41847 | CAS-2T | FM-Phonie-Transponder | |
| 435.635 | 2018-099 | KNACKSAT | Morse-Kode, 1200/9600bps GFSK | |
| 435.645 | 40926 | TW-1C (Tian Wang-1C) / NJFA-1 | 4800/9600bps GMSK CSP im 10s Interval | 26.09.15 gehört |
| 40928 | TW-1A (Tian Wang-1A) / Shankeda-2 | 26.09.15 gehört | ||
| 435.651 | 26609 | AO-40 / Phase-3D | Beacon | |
| 435.670 | 43596 | RS14S / SiriusSat-2 | 4800bps GMSK (G3RUH-Standard) AX.25 | |
| 435.675 | 36122 | HO-68 / XW-1 (Xi Wang-1) | FM-Phonie-Transponder, 1200bps AFSK 1W | |
| 435.677 | 19216 | AO-13 / Phase-3C | Ingenieur Beacon | |
| 435.700 | 43188 | D-Star One v.1.1 Phoenix | TLM | |
| 43879 | D-Star ONE | 4800bps GMSK Mobitex (CMX990 Mobitex Format) | ||
| 435.7094 | 41847 | CAS-2T | Morse-Kode | |
| 435.715 - 436.005 | 19216 | AO-13 / Phase-3C | Lineartransponder 50W | |
| 435.715 - 435.765 | 36122 | HO-68 / XW-1 (Xi Wang-1) | Lineartransponder 1W | 25.12.09 gehört |
| 435.750 | 37788 | EDUSAT | 9600bps GMSK | |
| 435.765 | 42716 | UPSat / QB50 GR02 | Morse-Kode, 9600bps GMSK | |
| 435.780 | 43134 | SIGMA / KHUSat-3 | ||
| 435.790 | 22826 | IO-26 / Itamsat-A | 1200bps BPSK AX.25 | 11.04.11 gehört |
| 36122 | HO-68 / XW-1 (Xi Wang-1) | Morse-Kode 200mW | 25.12.09 gehört | |
| 435.795 | 20480 | FO-20 / JAS-1B | Morse-Kode 100mW | |
| 24278 | FO-29 / JAS-2 | Morse-Kode 100mW | 23.07.03 gehört | |
| 435.797 | 16909 | FO-12 / JAS-1A | Morse-Kode | |
| 435.800 | 42708 | qbee50-LTU-OC / QB50 SE01 | 11500bps GFSK | |
| 2018-099 | Eaglet-1 | AIS VHF-Signal Retransmitting | ||
| 435.800 - 435.900 | 16909 | FO-12 / JAS-1A | Lineartransponder 2W | |
| 20480 | FO-20 / JAS-1B | Lineartransponder 1W | ||
| 24278 | FO-29 / JAS-2 | Lineartransponder 1W | ||
| 435.822 | 22826 | IO-26 / Itamsat-A | 1200bps AFSK ASCII, 9600bps FSK AX.25 4W | |
| 435.835 | 2018-099 | K2SAT | 9600bps BSPK AX.25 | |
| 435.836 | 26609 | AO-40 / Phase-3D | Beacon | |
| 435.867 | 22826 | IO-26 / Itamsat-A | 1200bps AFSK ASCII, 9600bps FSK AX.25 4W | |
| 435.880 | 40931 | IO-86 / LAPAN-A2 | FM-Phonie-Transponder 5W | |
| 435.880 - 435.910 | 43937 | FO-99 / NEXUS | Lineartransponder | |
| 435.900 | 42726 | nSIGHT-1 / QB50 AZ02 | 9600bps FSK oder GMSK | |
| 43937 | FO-99 / NEXUS | 1200~9600bps QPSK/FSK | ||
| 435.900 - 436.200 | 26609 | AO-40 / Phase-3D | Lineartransponder | |
| 435.910 | 16909 | FO-12 / JAS-1A | 1200bps BPSK AX.25 1W | |
| 20480 | FO-20 / JAS-1B | 1200bps BPSK AX.25 1W | ||
| 24278 | FO-29 / JAS-2 | 1200bps BPSK AX.25, 9600bps FSK AX.25, Digitalker 1W | 04.09.03 gehört | |
| 435.925 | 43669 | Changshagaoxin / TY 4-01 / Tianyi-4-01 | 9600bps GMSK | |
| 435.940 - 435.990 | 19216 | AO-13 / Phase-3C | Lineartransponder | |
| 435.950 | 25396 | TO-31 / TMSat-1 / Thai-Paht-1 | 9600bps FSK AX.25, 38400bps FSK AX.25 | |
| 39135 | BeeSat-3 | 4800bps GMSK 500mW | ||
| 41619 | BeeSat-4 | Morse-Kode, 4800bps GMSK 500mW | ||
| 42733 | SNUSat-1B / QB50 KR03 | 9600bps BPSK | ||
| 42776 | URSA MAIOR / QB50 IT02 | 9600bps FSK | ||
| 42829 | TechnoSat / Tubsat-12 | FM-Morse-Kode DPØTBA, 4800/9600bps GMSK 1W | 24.07.17 gehört | |
| 43186 | S-Net A | 1200/2400bps | ||
| 43187 | S-Net B | |||
| 43188 | S-Net C | |||
| 43189 | S-Net D | |||
| 435.974 | 8860 | Wideband / P76-5 | Beacon Experiment 200mW | |
| 14154 | HiLat (High Latitude Reseach Satellite) / P83-1 | Beacon Experiment | ||
| 17070 | Polar BEAR (Beacon Experiment and Auroral Research) / P87-1 | Beacon Experiment | ||
| 435.975 | 25396 | TO-31 / TMSat-1 / Thai-Paht-1 | 9600bps FSK AX.25, 38400bps FSK AX.25 | |
| 42765 | UCLSat / QB50 GB03 | 9600bps GMSK | ||
| 436.000 | 35933 | BeeSat |
Morse-Kode 100mW 4800/9600bps GMSK 500mW |
26.09.09 gehört |
| 39136 | BeeSat-2 | 4800bps GMSK 500mW | ||
| 42766 | NIUSat | 1200bps FSK | ||
| 436.020 | 14129 | AO-10 / Phase-3B | Beacon 2W | |
| 436.030 | 42714 | LINK / QB50 KR01 | 9600bps BPSK | |
| 436.040 | 14129 | AO-10 / Phase-3B | Ingenieur Beacon 2W | |
| 436.060 | 42770 | InflateSail / QB50 GB06 | 1200bps BPSK | |
| 436.075 | 25757 | DLR-TUBSAT | 1200bps FFSK ASCII | 21.03.05 gehört |
| 27004 | TUBSAT-C / MAROC | 1200bps FFSK ASCII 5W | 10.06.02 gehört | |
| 436.090 | 42727 | SNUSat-1 / QB50 KR02 | 9600bps BPSK | |
| 436.100 | 40017 | TabletSat-Aurora | 9600bps GMSK, D-STAR (4,8kBit/s GMSK) | |
| 43157 | QTT-1 / TianYi-6 | 9600bps GMSK | ||
| 436.150 | 42735 | Aoxiang-1 / QB50 CN04 | 9600bps BPSK | |
| 436.200 | 41909 | BY70-1 |
FM-Phonie-Transponder 9600bps BPSK |
07.02.17 gehört |
| 43666 | CubeBel-1 / BSUSat-1 | 9600bps GMSK Digipeater | ||
| 436.225 | 2018-099 | K2SAT | FM-Phonie-Transponder | |
| 436.250 | 25636 | SO-35 / Sunsat | FM-Phonie-Transponder, Parrot-Transponder (Papagei), 9600bps FSK 10W | |
| 35690 | AggieSat-2 / DragonSat-2 | 19,2kBit/s 1W | ||
41314 |
AggieSat-4 | 9600bps FSK LDR (low-data-rate), 153,6kBit/s FSK HDR (high-data-rate) | ||
| 436.270 | 42788 | NUDTSat / QB50 CN06 | 9600bps BPSK | |
| 436.300 | 25636 | SO-35 / Sunsat | FM-Phonie-Transponder, Parrot-Transponder (Papagei), 9600bps FSK 10W | |
| 436.330 | 42731 | i-INSPIRE-2 / QB50 AU03 | 9600bps GMSK | |
| 436.350 | 27608 | UniSat-2 | 9600bps GMSK 2W | |
| 436.370 | 43199 | Shaonian Xing / MXSat-1 | 9600bps BPSK | |
| 436.390 | 42737 | QBUS-2 Atlantis / QB50 US02 | 9600bps GMSK | |
| 436.400 | 41170 | Galassia | 9600bps FSK 2W | |
| Mond-Orbit | LO-94 / DSLWP-A2 (B) / LongJiang-2 | 250bps GMSK und JT4 | ||
| 436.420 | 42724 | DUTHsat / QB50 GR01 | 9600bps BPSK | |
| 436.425 | Mond-Orbit | LO-93 / DSLWP-A1 (A) / LongJiang-1 | 250bps GMSK und JT4 | |
| 436.445 | 41557 | LO-87 / NuSat-1 | 9600/19200bps GFSK | |
| 436.500 | 22828 | KO-25 / Kitsat-B | 1200bps AFSK ASCII, 9600bps FSK AX.25 | |
| 25520 | PO-34 / Pansat | 9842bps Spread-Spectrum | ||
| 26065 | AO-37 / ASUSat-1 | 9600bps GMSK | ||
| 41847 | KS-1Q | 20kBit/s FSK TT&C Transponder | ||
| 43468 | Irazu | 9600bps FSK | ||
| 2018-104 | DaVinci | 9600bps GMSK | ||
| 436.510 | 42725 | LO-90 / LilacSat-1 / QB50 CN02 | FM-Phonie-Transponder + 300bps CSP TLM, APRS 1200bps AFSK AX.25 oder 9600bps BPSK | |
| 436.525 | 42721 | UNSW-ECO / QB50 AU02 | 9600bps GMSK | |
| 436.550 | 14129 | AO-10 / Phase-3B | ||
| 436.570 | 42722 | NJUST-1 / QB50 CN03 | 9600bps BPSK | |
| 436.600 | 42732 | PolyITAN-2-SAU / QB50 UA01 | 9600bps FSK | |
| 2018-099 | KazSciSat-1 | |||
| 436.625 | 26094 | StenSat / Picosat-6 |
Morse-Kode ID im 4min Intervall 1200bps AFSK AX.25 im 5s Intervall |
|
| 436.670 | 42784 | Pegasus / QB50 AT03 | 9600bps GMSK | |
| 436.675 | 27845 | QuakeSat | 9600bps FSK AX.25 im 10s Intervall 1,2W | |
| 436.700 | 26065 | AO-37 / ASUSat-1 | 9600bps FSK AX.25 2W | |
| 436.705 | 42734 | Ex-Alta-1 / QB50 CA03 | 9600bps GMSK | |
| 436.730 | 2018-099 | AISTECHSAT-2 oder Corvus-BC-4 ??? | 4800bps GMSK | |
| 436.750 | 39267 | DANDE | 9600bps FSK im 15s Intervall 750mW | |
| 436.775 | 26545 | SO-41 / SaudiSat 1A | FM-Phonie-Transponder, 9600bps FSK AX.25 1W | 14.04.02 gehört |
| 42730 | SUSat / QB50 AU01 | Morse-Kode, 9600bps GMSK oder BPSK | ||
| 436.7925 | 27607 | SO-50 / SaudiSat 1C | FM-Phonie-Transponder 250mW | 24.08.15 gehört |
| 436.7975 | 22825 | AO-27 / Eyesat-A | FM-Phonie-Transponder, 1200bps AFSK AX.25 600mW/2/4W | 16.01.12 gehört |
| 436.810 | 42728 | QBITO / QB50 ES01 | Morse-Kode, 9600bps GMSK | |
| 436.8375 | 27844 | CO-55 / Cute-1 | Morse-Kode 50wpm 100mW | 16.07.04 gehört |
| 436.845 | 31129 | PolySat CP-3 | 1200bps AFSK AX.25 1W | |
| 42700 | HAVELSAT / QB50 TR02 | 9600bps GMSK | ||
| 436.8475 | 27848 | CO-57 / CubeSat XI-IV | Morse-Kode 50wpm 100mW | 02.03.05 gehört |
| 436.880 | 42717 | SpaceCube / QB50 FR05 | Phonie oder 9600bps G3RUH FSK | |
| 436.900 | 25396 | TO-31 / TMSat-1 / Thai-Paht-1 | 9600/38400bps FSK AX.25 Ausweich-Downlink | |
| 436.915 | 42706 | Phonix / QB50 TW01 | 9600bps GMSK | |
| 436.925 | 25396 | TO-31 / TMSat-1 / Thai-Paht-1 | 9600/38400bps FSK AX.25 Primär-Downlink | |
| 436.950 | 25396 | TO-31 / TMSat-1 / Thai-Paht-1 | 9600/38400bps FSK AX.25 Ausweich-Downlink | |
| 43156 | Zhou Enlai / HA-1 | FM-Phonie-Transponder, SSTV | ||
| 436.975 | 25396 | TO-31 / TMSat-1 / Thai-Paht-1 | 9600/38400bps FSK AX.25 Ausweich-Downlink | |
| 436.990 | 43666 | CubeBel-1 / BSUSat-1 | 9600bps GMSK TLM | |
| 437.000 | 39571 | ArduSat-2 | 9600bps MSK CCSDS | |
| 2018-099 | ESEO / FUNcube 4 | 4800/9600bps GMSK AX25 | ||
| 437.020 | 42707 | X-CubeSat / QB50 FR01 | Phonie oder 9600bps G3RUH FSK | |
| 437.025 | 25693 | UO-36 / UoSat-12 | 9600/38400bps FSK AX.25 11W | |
| 40117 | Chasqui-1 / HC-1 | 1200bps AFSK AX.25, 9600bps GMSK | ||
| 42910 | RS4S / Tomsk TPU-120 | Sprachbotschaften in 11 Sprachen im 55s Intervall, 9600bps FSK | ||
| 41607 | Swayam | Morse-Kode, 1200bps BPSK | ||
| 42832 | Ecuador-UTE-YuZGU | |||
| 437.026 | 24305 | MO-30 / Unamsat-B | 1200bps BPSK AX.25 | |
| 437.02625 | 20439 | AO-16 / PACSAT | 1200bps BPSK AX.25 4W | 25.08.06 gehört |
| 437.050 | 40017 | TabletSat-Aurora | 9600bps GMSK, D-STAR (4,8kBit/s GMSK) | |
| 42911 | RS6S / Tanjuscha JuSGU-1 | Sprachbotschaften in 4 Sprachen im 3min Intervall, 9600bps FSK | ||
| 42912 | RS7S / Tanjuscha JuSGU-2 | |||
| 43551 | EnduroSat One | Morse-Kode, 9600bps GFSK | ||
| 43597 | RS8S / Tanjuscha JuSGU-3 | Sprachbotschaften, 1200bps AFSK | ||
| 43598 | RS9S / Tanjuscha JuSGU-4 | |||
| 43551 | EnduroSat | Morse-Kode, 9600bps GFSK | ||
| 437.05130 | 20439 | AO-16 / PACSAT | 1200bps BPSK AX.25 4W | |
| 437.055 | 42702 | QBUS-4 Columbia / QB50 US04 | 9600bps GMSK | |
| 437.060 | 43897 | LUME-1 | 4800bps GMSK 30s Interval | |
| 437.065 | 29655 | GeneSat-1 | 1200bps AFSK AX.25 im 5s Intervall | |
| 437.070 | 26061 | WO-39 / JAWSat / P98-1 | 9600bps FSK 1,6W | |
| 437.075 | 42704 | CXBN-2 | 9600bps oder 28400bps GFSK | |
| (437.0732) | 43937 | FO-99 / NEXUS | Morse-Kode, 1200bps AFSK, 9600bp GMSK AX.25 | |
| 437.0751 | 20441 | WO-18 / Webersat | 1200bps BPSK AX.25 | |
| 26549 | SO-42 / SaudiSat 1B | FM-Phonie-Transponder, 9600bps FSK AX.25 1W | ||
| 437.095 | 26932 | NO-45 / Sapphire | 9600bps FSK AX.25, Sprach-Synthesizer 2W | 17.11.03 gehört |
| 43019 | EcAMSat | 1200bps AFSK AX.25 im 5s Intervall | ||
| 437.100 | DeepSpace | Mars Global Surveyor | 8-128kBit/s 1,3W | |
| DeepSpace | MRO (Mars Reconnaissance Orbiter) | 10W | ||
| 26063 | OO-38 / Opal | 9600bps FSK AX.25 im 10s Intervall 1,7W | ||
| 26093 | JAK / Picosat-5 | Morse-Kode | ||
| 26092 | Thelma / Picosat-7 | 1200bps FSK | ||
| 26091 | Louise / Picosat-8 | 1200bps FSK | ||
| 39681 | SporeSat | 1200bps AFSK AX.25 | ||
| 41338 | ChubuSat-2 | Morse-Kode, 9600bps GMSK KISS | ||
| 41477 | Nodes-1 | 1200bps AFSK | ||
| 41478 | Nodes-2 | 1200bps AFSK | ||
| 42789 | skCUBE | 9600bps GMSK AX.25 | ||
| 43133 | CNUSail-1 | 9600bps GMSK | ||
| 437.104 (437.102) | 20441 | WO-18 / Webersat | 1200bps BPSK AX.25 4W | |
| 437.12580 | 20442 | LO-19 / Lusat | Morse-Kode 60wpm, 1200bps BPSK AX.25 750mW | 20.11.04 gehört |
| 437.138 | 24305 | MO-30 / Unamsat-B | 1200bps BPSK AX.25 | |
| 437.150 | 39575 | OPUSAT | Morse-Kode, 1200bps AFSK, 9600bps GMSK | |
| 43616 | CP-7 (DAVE) | Morse-Kode, 9600bps FSK | ||
| 2018-099 | RANGE A | 0.1-115.2kBit/s FSK/MSK/GFSK/GMSK | ||
| 2018-104 | CP-11 (ISX) | 9600bps FSK 1W | ||
| 437.15355 | 20442 | LO-19 / Lusat | 1200bps BPSK AX.25 | |
| 437.175 | 26061 | WO-39 / JAWSat / P98-1 | 38400bps FSK/GMSK AX.25 2W | |
| 39421 | UniSat-5 | 9600bps GMSK | ||
| 2018-099 | Astrocast 0.1 | |||
| 437.195 | 42713 | ZA-AeroSat / QB50 AZ01 | 1200bps AFSK oder 9600bps GMSK | |
| 437.200 | 39577 | CO-77 / INVADER | 1200bps AFSK AX.25, Digitalker | |
| 40908 | LilacSat-2 / CAS-3H |
FM-Phonie-Transponder 1200/9600bps BPSK NRZ-M CSP 1200bps AFSK AX.25 200mW |
||
| 41931 | Tancredo-1 | 1200bps AFSK AX.25 | ||
| 2018-004 | Canyval-X 1 | 9600bps MSK | ||
| 2018-004 | Canyval-X 2 | 9600bps MSK | ||
| 43679 | Stars-AO | 115kBit/s GMSK | ||
| 435.200 - 435.250 | 43466 | UBAKUSat | Lineartransponder | |
| 437.220 | 39403 | Ho‘oponopono-2 | 9600bps FSK | |
| 39442 | PUCP-Sat-1 | 1200bps AFSK | ||
| Nicht Erfasst | Pocket-PUCP | Morse-Kode, 1200bps AFSK | ||
| 42775 | Aalto-1 | Morse-Kode, 9600bps FSK | ||
| 437.225 | 39152 | TurkSat-3USat | Morse-Kode, 9600bps FSK | |
| 39577 | CO-77 / INVADER | Morse-Kode | ||
| 40908 | LilacSat-2 / CAS-3H | 1200/4800bps GMSK CSP | 24.09.15 gehört | |
| 43466 | UBAKUSat | Morse-Kode | ||
| 2019-003 | AOBA-VELOX-4 | 9600bps GMSK AX.25 | ||
| 437.229 | 42787 | Suchai-1 | Morse-Kode 20wpm, 1200bps MSK | |
| 437.230 | 39464 | Firebird-B / FU-2 | 9600bps GMSK AX.25 1W | |
| 40314 | SpinSat | 9600bps GFSK AX.25 2W | ||
| (437.219) | 40378 | Firebird-D / FU-4 | 19,2kBit/s FSK | |
| 437.240 | Nicht Erfasst | KickSat / Sprites | 125bps MSK 10mW | |
| 42790 | VZLUSat-1 / QB50 CZ02 | Morse-Kode, 9600bps MSK | ||
| 437.245 |
39579 |
STARS-II (Space Tethered Autonomous Robotic Satellite) | Morse-Kode | |
| 33493 | PRISM / HITOMI | Morse-Kode 80mW | 02.02.09 gehört | |
| 38853 | FITSat-1 / NIWAKA | Morse-Kode | 15.10.12 gehört | |
| 41895 | STARS-C (Mother) | Morse-Kode | ||
| 43640 | STARS-Me (Mother) | Morse-Kode | ||
| 437.250 | 28894 | XO-53 / SSETI-Express | 9600bps FSK AX.25 3W | 27.10.05 gehört |
| 39161 | ESTCube-1 | Morse-Kode 18wpm 100mW | ||
| 39413 | PicoDragon | Morse-Kode 100mW | ||
| 39430 | GomX-1 | 1200/2400/4800/9600bps GMSK | ||
| 40054 | AISat-1 | Morse-Kode | ||
| 40949 | GomX-3 | 1200/9600bps GMSK CSP | ||
| 2018-096 | 3Cat-1 | Morse-Kode, 9600bps FSK 2W | ||
| 2018-099 | CSIM-FD | 19200bps GMSK | ||
| 2018-099 | MinXSS-2 | 9600bps GMSK AX.25 | ||
| 437.255 |
39579 |
STARS-II (Space Tethered Autonomous Robotic Satellite) | Morse-Kode | |
| 41895 | STARS-C (Daughter) | Morse-Kode | ||
| 2018-073 | STARS-Me (Daughter) | Morse-Kode | ||
| 437.265 | 42768 | LithuanicaSat-2 / QB50 LT01 | 9600bps FSK | |
| 437.269 | 37361 | NanoSail-D2 | 1200bps AFSK AX.25 im 10s Intervall | |
| 39471 | IPEX | Morse-Kode "IPEX" im 45s Intervall mit 15wpm, 9600bps FSK AX.25 | ||
| 437.270 | 40380 | ExoCube / CP-10 | Morse-Kode, 9600bps FSK | |
| 437.275 | 29484 | HO-59 / HITSat | Morse-Kode im 40s Intervall 100mW | 03.10.06 gehört |
| 32787 | COMPASS-1 | Morse-Kode 15wpm 200mW | ||
| 32785 | CO-65 / Cute-1.7+APD-2 | Morse-Kode | 10.08.12 gehört | |
| 33498 | STARS | Morse-Kode | 02.02.09 gehört | |
| 37839 | Jugnu / JNU | Morse-Kode 100mW | ||
| 39569 | LO-78 / LituanicaSat-1 | Morse-Kode 100mW | ||
| 40302 | Tsubame | Morse-Kode 100mW | ||
| 43614 | SurfSat | 9600bps FSK | ||
| 2018-099 | SNUGLITE | 9600bps GMSK | ||
| 437.280 | 40034 | ANTELSat | Morse-Kode 100mW | |
| 437.290 | 39395 | Copper | 9600bps FSK AX.25 | |
| 41933 | WASEDA-Sat-3 | Morse-Kode, 1200bps PCM/FSK AX.25 | ||
| 437.300 | 26548 | MO-46 / TiungSat | 9600bps FSK AX.25 | |
| 40900 | NUDT-PhoneSat / CAS-3I | 9600bps FSK 100mW | ||
| 42777 | Compass-2 / DragSail / QB50 DE04 | 1200bps AFSK | ||
| 43467 | 1KUNS-PF | 1200/9600bps BPSK AX.25 250mW-4W | ||
| 437.302 | 37224 | O/OREOS / USA 219 | 1200bps AFSK AX.25 | 23.11.10 gehört |
| 437.305 | 28897 | nCube-2 | 9600bps FSK AX.25 1,5W | |
| 33498 | STARS | Morse-Kode | 02.02.09 gehört | |
| 36575 | Nagai-Star | Morse-Kode 50wpm 100mw, 1200bps GMSK AX.25 800mW | ||
| 36799 | TIsat-1 | Morse-Kode "HI HI HI TISAT" 16wpm 400mW | 10.08.10 gehört | |
| 38085 | UNICubeSAT | 9600bps FSK | ||
| 39266 | CUsat-1 | Cross-Link | ||
| 39271 | CUsat-2 | |||
| 39407 | Vermont Lunar CubeSat | 9600bps FSK AX.25 | ||
| 39445 | HinCube | Morse-Kode | ||
| 39572 | ShindaiSat | AX.25 | ||
| 437.318 | Fehlstart | PreSat | 1200bps AFSK AX.25 im 5s Intervall | |
| 437.320 | 39385 | TJ3Sat | Morse-Kode | |
| 437.325 | 26548 | MO-46 / TiungSat | 9600bps FSK AX.25 | |
| 29709 | Lapan-Tubsat | 1200bps FFSK ASCII 3,5W | 10.10.12 gehört | |
| 31132 | PolySat CP-4 | 1200bps AFSK AX.25 1W | ||
| 35690 | BEVO-1 / DragonSat-1 | Morse-Kode 20wpm 200mW, 1200bps Bell-202 AX.25, 9600bps GMSK AX.25 1W | ||
| 35935 | ITU-pSat | Morse-Kode 100mW, 19,2kBit/s GFSK 1W | 26.09.09 gehört | |
| 38084 | Robusta | 1200bps im 3min Intervall | ||
| 38340 | Horyu-2 | Morse-Kode 20wpm, 1200bps GMSK AX.25 | ||
| 39412 | ArduSat-1 | 9600bps MSK CCSDS | ||
| 39382 | LO-75 / CAPE-2 | Morse-Kode, 1200bps AFSK | ||
| 39433 | Humsat-D | Morse-Kode, 1200bps MSK | ||
| DeepSpace | FO-81 / DESPATCH / ARTSAT-2 | Morse-Kode 7W | ||
| 41314 | Bevo-2 | Morse-Kode, 38,4kBit/s FSK | ||
| 41603 | LAPAN-A3 | 1200bps FFSK 3.5W | ||
| 42791 | Venta-1 | Morse-Kode, 9600bps | ||
| 42792 | Robusta-1B | Morse-Kode, 1200bps AFSK | ||
| 43466 | UBAKUSat | 9600bps GMSK | ||
| 437.335 | 42729 | Aalto-2 / QB50 FI01 | 9600bps FSK | |
| 437.345 | 28895 | CO-58 / CubeSat XI-V | 1200bps AFSK AX.25 800mW | |
| 35004 | HawkSat-1 | 1200bps AFSK | ||
| 37227 | FO-69 / FASTRAC 1 "Sara Lily" / USA 222 | 1200bps AFSK AX.25 | ||
| 37853 | RAX-2 | 9600bps GMSK 500mW | 31.10.11 gehört | |
| 38081 | MO-72 / MaSat-1 | Morse-Kode, 625/1250bps GFSK | ||
| 38085 | UNICubeSat | 9600bps FSK | ||
| 39414 | ArduSat-X | 9600bps MSK CCSDS | ||
| 39417 | ZACube-1 | 1200/9600bps | ||
| 39398 | Black Knight | |||
| 41474 | MinXSS | 9600bps GMSK | ||
| 2018-111 | ZACube-2 | 9600bps FSK | ||
| 437.349 | 38761 | CSSWE | 9600bps GMSK AX.25 500mW | |
| 437.350 | 26548 | MO-46 / TiungSat | 9600bps FSK AX.25 | |
| 43156 | Zhou Enlai / HA-1 | 9600bps BPSK | ||
| 1998-067 | MemSat | 9600bps GMSK 1.5-3W | ||
| 43679 | Stars-AO | Morse-Kode | ||
| 2018-096 | FacSat-1 | |||
| (437.300 - 437.400) | 37791 | RASAT | ||
| 437.365 | 35003 | PolySat CP-6 | 1200bps AFSK AX.25 1W | |
| 38082 | XaTcobeo | Morse-Kode 20wpm, 1200bps FFSK/MSK AX.25 | ||
| 39413 | PicoDragon | 1200bps AFSK 800mW | ||
| 40897 | Serpens | Morse-Kode, 1200bps MSK CSP | ||
| 437.370 | 42736 | BeEagleSat / QB50 TR01 | 9600bps GMSK | |
| 437.372 | 42820 | BIRD-J / Toki | Morse-Kode | |
| 42821 | BIRD-G / GhanaSat-1 / ANUSAT-1 | |||
| 42822 | BIRD-M / Mazaalai / NUMSAT-1 | |||
| 42823 | BIRD-B / BRAC Onnesha | |||
| 42824 | BIRD-N / EduSat-1 | |||
| 437.375 | 26548 | MO-46 / TiungSat | 9600bps FSK AX.25 | |
| 33495 | Kagayaki | Morse-Kode, 9600bps FSK AX.25 | ||
| 38340 | Horyu-2 | Morse-Kode 20wpm, 1200bps AFSK AX.25 1W | 22.05.12 gehört | |
| 40743 | Centennial-1 | 1200/9600bps GFSK | ||
| 40968 | BisonSat | 9600bps GMSK AX.25 | ||
| 41340 | Horyu-4 | Morse-Kode 20wpm, 1200bps AFSK, 9600bps GMSK, FM-Digi-Singer | ||
| 41935 | AOBA-Velox-3 | Morse-Kode, 1200bps AFSK | ||
| 42820 | BIRD-J / Toki | 1200bps AFSK, 9600bps FSK, digitale Sprache | ||
| 42821 | BIRD-G / GhanaSat-1 / ANUSAT-1 | |||
| 42822 | BIRD-M / Mazaalai / NUMSAT-1 | |||
| 42823 | BIRD-B / BRAC Onnesha | |||
| 42824 | BIRD-N / EduSat-1 | |||
| 43589 | BIRD-MY / UiTMSat-1 | Morse-Kode Beacon | ||
| 43590 | BIRD-PH / MAYA-1 | |||
| 43591 | BIRD-BT / BHUTAN-1 | |||
| 43880 | UWE-4 | 9600bps FSK AX.25 Digipeater | ||
| 437.380 | 28941 | CO-56 / Cute-1.7+APD-1 | Morse-Kode | 02.03.06 gehört |
| 437.385 | 29667 | NO-62 / ANDE-1 (Atmospheric Neutral Drag Experiment) / FCal (Fence Calibration) | 1200bps AFSK AX.25 | 02.01.07 gehört |
| 33499 | KKS-1 | Morse-Kode | 02.02.09 gehört | |
| 35934 | UWE-2 | Morse-Kode, 1200bps AFSK, 9600bps FSK AX.25 500mW | ||
| 39402 | SwampSat | 9600bps FSK AX.25 1W | ||
| 39446 | UWE-3 | 9600bps GMSK | ||
| 39568 | UAPSat | AX.25 | ||
| DeepSpace | FO-82 / Shin-En-2 | WSJT 800mW | ||
| 2018-084 | AUTcube-2 | 1200bps AFSK, 9600bps FSK | ||
| 43880 | UWE-4 | 9600bps FSK AX.25 Digipeater | ||
| 437.390 | 43677 | Ten-Koh | 9600bps GMSK | |
| 437.400 | 25693 | UO-36 / UoSat-12 | 9600/38400bps FSK AX.25 3W | |
| 42715 | CSUNSat-1 | 9600bps GMSK | ||
| 43679 | Stars-AO | 1200bps AFSK | ||
| 437.405 | 31128 | Libertad-1 | 1200bps AFSK AX.25 400mW | |
| 32787 | COMPASS-1 | 1200bps AFSK AX.25 | ||
| 38763 | PolySat CP-5 | 1200bps AFSK AX.25 2min Íntervall 1W | ||
| 39266 | CUsat-1 | |||
| 39384 | KySat-2 | 9600bps GFSK AX.25 | ||
| 39405 | ChargerSat-1 | 9600bps FSK AX.25 | ||
| 39435 | Wren | Morse-Kode, 1200bps FSK | ||
| 39463 | Firebird-A / FU-1 | 9600bps GMSK AX.25 1W | ||
| 39579 | STARS-II (Space Tethered Autonomous Robotic Satellite) | 1200bps AFSK AX.25 | ||
| 40377 | Firebird-C / FU-3 | 19,2kBit/s FSK | ||
| 41895 | STARS-C (Mother) | 1200bps | ||
| 42701 | SOMP-2 / QB50 DE02 | Morse-Kode, 9600bps GMSK | ||
| 43640 | STARS-Me (Mother) | 1200bps AFSK, 9600bps GMSK | ||
| 437.410 (437.405) | 40028 | POPSAT-HIP-1 | Morse-Kode, 1200/9600bps CCSDS | |
| 437.425 | 29484 | HO-59 / HITSat | 1200bps AFSK 100mW | |
| 33493 | PRISM / HITOMI | 1200bps AFSK 800mW, 9600bps GMSK 2W | ||
| 37841 | SRMSat | Morse-Kode | ||
| 39087 | AAUSat-3 | 1200/19200bps | ||
| 39146 | PhoneSat-v1a / Graham | 1200bps AFSK | ||
| 39145 | PhoneSat-v1b / Bell | AX.25 | ||
| 39144 | PhoneSat-v2a / Alexander | |||
| 39381 | PhoneSat-v2.4 | 1200bps AFSK | ||
| 39400 | Trailblazer | 9600bps FSK, AX.25 1W | ||
| 39421 | UniSat-5 | 9600bps GMSK | ||
| 39579 | STARS-II (Space Tethered Autonomous Robotic Satellite) | 1200bps AFSK AX.25 | ||
| 39684 | PhoneSat-v2.5 | 1200bps AFSK | ||
| 40012 | UniSat-6 | 9600bps GMSK | ||
| 40948 | AAUSat-5 | Morse-Kode 30wpm, 9600bps GMSK | ||
| 40931 | IO-86 / LAPAN-A2 | 1200bps FFSK 5W | ||
| 41339 | ChubuSat-3 | Morse-Kode, 9600bps GMSK KISS | ||
| 41460 | AAUSat-4 | Morse-Kode 30wpm, 1200-19200bps FSK CSP | ||
| 41895 | STARS-C (Daughter) | 1200bps | ||
| 41936 | TuPOD | Morse-Kode, 1200bps GMSK | ||
| 1998-067 | RadSat-g | 9600bps GMSK / 19.2kBit/s | ||
| 2018-073 | STARS-Me (Daughter) | 1200bps AFSK, 9600bps GMSK | ||
| 2018-099 | SeeMe | |||
| 2018-099 | VisionCube | 9600bps GMSK | ||
| 437.425 - 437.525 | 40074 | UKube-1 / UKSEDS | myPocketQub spread spectrum | |
| 437.430 | 32788 | AAUSat-2 | Morse-Kode, 1200bps AFSK, 9600bps FSK AX.25 | |
| 437.435 | 40661 | LightSail-1 | 9600bps GMSK AX.25 | |
| 41939 | OSNSat | GMSK | ||
| 437.445 | 33499 | KKS-1 | AFSK | |
| 38079 | e-st@r | Morse-Kode, 1200bps AFSK | ||
| 38853 | FITSat-1 / NIWAKA | AX.25 | ||
| 39153 | CubeBug-1 | 9600bps GMSK | ||
| 39440 | LO-74 / CubeBug-2 | 1200bps AFSK AX.25, 9600bps GFSK | ||
| 40014 | BugSat-1 / Tita | 9600bps GMSK AX25 | ||
| 41558 | NuSat-2 | 9600/19200bps GFSK | ||
| 41783 | Pratham | 1200bps AFSK AX.25 60mW | ||
| 437.450 (437.475) | 27846 | AAUSat-1 | 9600bps GMSK AX.25 500mW | |
| 39087 | AAUSat-3 | 1200/19200bps | ||
| 39576 | TeikyoSat-3 | Morse-Kode | ||
| 42703 | SGSAT | 9600bps GMSK AX.25 | ||
| 43617 | ELFIN-A | 19200bps GFSK | ||
| 2018-099 | Irvine-02 | 9600bps FSK AX.25 | ||
| 437.462 | 40458 | LambdaSat | 1200bps AFSK 1W | |
| 437.463 | 28895 | CO-58 / CubeSat XI-V | Morse-Kode 50wpm im 13s Intervall 80mW | 03.11.05 gehört |
| 437.465 | 33498 | STARS | AFSK | |
| 35002 | PharmaSat-1 | 1200bps AFSK AX.25 | ||
| 38078 | ALMASat-1 | 1200bps FSK | ||
| 38854 | TechEdSat-1 | 1200bps AFSK 1W | ||
| 39415 | TechEdSat-3P | 1200bps AFSK 1W | ||
| 39437 | Beakersat-1 / Eagle-1 | 9600bps GFSK AX.25 | ||
| 40455 | TechEdSat-4 / TES-4 | Morse-Kode, 1200bps AFSK | ||
| 43135 | KAUSat-5 | 9600bps FSK | ||
| 437.470 | 27844 | CO-55 / Cute-1 | 1200bps AFSK AX.25 350mW | |
| 437.475 | 27842 | DTUsat | Morse-Kode 13wpm im 2min Intervall, 2400bps AFSK AX.25 400mW | |
| 32785 | CO-65 / Cute-1.7+APD-2 | 1200bps AFSK AX.25, 9600bps GMSK SRLL | ||
| 37854 | AO-71 / AubieSat-1 | Morse-Kode 20wpm 800mW | ||
| 40652 | USS Langley | 9600bps AX.25 | ||
| 43615 | ELFIN-B | 19200bps GFSK | ||
| 2018-099 | RANGE B | 0.1-115.2kBit/s FSK/MSK/GFSK/GMSK | ||
| 437.478 | 32790 | CanX-2 | 4kBit/s GMSK AX.25 1W | |
| 437.480 | 40379 | GRIFEX | 9600/19200bps FSK | |
| 437.485 | 32791 | CO-66 / SEEDS-2 | Morse-Kode 90mW, 1200bps AFSK AX.25, Digitalker, SSTV 450mW | 11.09.12 gehört |
| 33498 | STARS | AFSK | ||
| 36574 | WasedaSat-2 | Morse-Kode, 9600bps PCM-FSK | ||
| 37855 | M-Cubed / COVE | 9600bps FSK, GMSK AX.25 1W | ||
| 38080 | Goliat | 1200bps AFSK 100-300mW | ||
| 38756 | PROITERES | Morse-Kode, AFSK 10W | 11.09.12 gehört | |
| 38855 | F-1 | FM-Morse-Kode 10wpm im 30s Intervall 100/300mW | ||
| 39134 | SOMP | Morse-Kode 12/240wpm, 1200bps AFSK, 9600bps Q/BPSK 500mW | ||
| 39271 | CUsat-2 | 1200bps AFSK | ||
| Nicht Erfasst | E-Star-2 | 1200bps AFSK | ||
| 39469 | M-Cubed-2 / COVE-2 | 9600bps GMSK | ||
| 39572 | ShindaiSat | Morse-Kode | ||
| 40022 | PACE | 1200bps AFSK | ||
| 40300 | ChubuSat-1 / Kinshachi-1 | Morse-Kode, 9600bps AX.25 | ||
| 41168 | Athenoxat-1 | Morse-Kode, 2400bps MSK | ||
| 41459 | e-st@r-2 | Morse-Kode, 1200bps AFSK AX.25 500mW | ||
| 41475 | CADRE | 9600bps GMSK | ||
| 43138 | STEP Cube Lab | Morse-Kode, 9600bps FSK | ||
| 437.490 | 27848 | CO-57 / CubeSat XI-IV | 1200bps AFSK AX.25 600mW | |
| (437.450 - 437.550) | 37791 | RASAT | ||
| 437.505 | 28892 | UWE-1 | 1200bps AFSK AX.25 im 60s Intervall 1W | |
| 28941 | CO-56 / Cute-1.7+APD-1 | 1200bps AFSK AX.25, 9600bps GMSK AX.25/SRLL | ||
| 33496 | SOHLA-1 | Morse-Kode, 1200bps AFSK | ||
| 35932 | SwissCube | Morse-Kode 120mW, 1200bps AFSK AX.25 1W | ||
| 36796 | StudSat | Morse-Kode 18wpm, 1200bps FSK | ||
| 37223 | RAX (Radio Aurora Explorer) / USA 218 | 9600bps GMSK im 20s Intervall 750mW | ||
| 37839 | Jugnu / JNU | 9600bps 1W | ||
| 37855 | E1P F2 (Explorer 1 Prime) / HRBE | 1200bps AFSK KISS Custom | 31.10.11 gehört | |
| 38856 | WE-WISH | Morse-Kode, 1200bps AFSK AX.25 | ||
| 39161 | ESTCube-1 | 9600bps AX.25 500mW | ||
| 39436 | MO-76 / 50$Sat / Eagle-2 | 9600bps GFSK | ||
| 39470 | CUNYSat-1 | Morse-Kode, 9600bps GMSK | ||
| 39685 | KickSat-1 | 1200bps AFSK | ||
| 40302 | Tsubame | 1200bps AFSK AX.25 500mW | ||
| DeepSpace | FO-82 / Shin-En-2 | Morse-Kode 100mW | ||
| 42794 | D-Sat | Morse-Kode, 4800bps GMSK | ||
| 43027 | OSIRIS-3U | 38400bps GMSK | ||
| 2018-084 | AUTcube-2 | WSJT | ||
| 2018-104 | CubeSail-1 / -2 | 9600bps GMSK AX.25 | ||
| 2019-003 | FO-98 / OrigamiSat-1 | 1200bps 20K0F2D und 500HA1A | ||
| 437.510 | 42723 | QBUS-1 Challenger / QB50 US01 | 9600bps GMSK | |
| 43677 | Ten-Koh | 9600bps WSJT | ||
| 437.511 | 40054 | AISat-1 | Morse-Kode, Datenpakete | 30.01.15 gehört |
| 437.525 | 38762 | CXBN | GFSK AX.25 | |
| 39131 | OSSI-1 | 1200bps AFSK | ||
| 39389 | NPS-SCAT | 1200bps AFSK AX.25 1W | ||
| 39433 | Humsat-D | Morse-Kode | ||
| 39443 | QubeScout-S1 | 9600bps GMSK | ||
| 39573 | ITF-1 (Imagine The Future) | Morse-Kode | ||
| 39770 | SPROUT | 1200bps AFSK, 9600bps GMSK | ||
| 41604 | BIROS | 4800bps GMSK Mobitex Protokol | ||
| 41932 | TO-89 / ITF-2 | Morse-Kode, 1200bps | ||
|
437.538 (437.525 - 437.550) |
40387 |
Fajr (dt.Morgendämmerung) (Iran's vierter Satellit) |
||
| 437.550 (437.544) | 39571 | LO-78 / LituanicaSat-1 | 9600bps FSK AX.25 2W | |
| 437.560 | 2018-104 | CHOMPTT | 9600bps GMSK | |
| 437.565 | 40969 | ARC-1 | Morse-Kode, 9600bps FSK AX.25 | |
| 437.568 | 39090 | STRaND-1 | 9600/19200bps FSK AX.25 | |
| 437.575 | 40034 | AntelSat | 1200bps AFSK, SSTV | |
| 437.600 | 37252 | Mayflower-Caerus | 1200bps AFSK im 10s Intervall 900mW | |
| 38760 | AENEAS | 1200bps AFSK AX.25 im 10s Intervall | ||
| 39770 | SPROUT | Digitalker, SSTV | ||
40389 |
AESP-14 | 9600bps GFSK AX.25 500mW | ||
| 41915 | Kaidun-1 | 1200bps G3RUH BPSK | ||
| 437.625 | 2018-099 | SNUSAT-2 | 9600bps BPSK | |
| 437.644 | 43156 | Zhou Enlai / HA-1 | 9600bps BPSK | |
| 437.645 | 40927 | TW-1B (Tian Wang-1B) / NJUST-2 | 4800/9600bps GMSK CSP im 20s Interval | 29.09.15 gehört |
| 43021 | EagleSat-1 | 1200bps AFSK AX.25 | ||
| 437.650 | 40958 | LQSat | Morse-Kode 25wpm, 4800bps MSK CSP 500mW | |
| 41789 | AlSat-Nano / AlSat-1N | 9600bps FSK | ||
| 437.675 | 40042 | PolyITAN-1 | Morse-Kode, 1200bps AFSK AX25 600mW | |
| 437.740 | 42718 | Hoopoe / QB50 IL01 | 9600bps BPSK | |
| 437.775 | 2018-096 | Reaktor Hello World | Morse-Kode, 9600bps 2GFSK | |
| 2018-099 | Suomi-100 | 9600bps GMSK | ||
| 437.800 | 41476 | STMSat-1 | 9600bps GMSK, SSTV Martin-2 Mode im 30s Intervall 3W | |
| 43693 | IRVINE-01 | Morse-Kode "IRV1" im 41s Intervall, 9600bps FSK AX.25 1W | ||
| 437.850 - 438.000 | 25509 | SO-33 / Sedsat-1 | Lineartransponder | |
| 437.861 | 36796 | StudSat | Morse-Kode 18wpm | |
| 437.880 | 27847 | CanX-1 | 1200bps MSK Custom 500mW | |
| 437.915 | 25509 | SO-33 / Sedsat-1 | 9600bps FSK AX.25 | |
| 437.950 | 40912 | DCBB / CAS-3G | 9600bps GMSK | |
| 437.975 | 25544 | PCSat-2 / ISS | 1200bps AFSK, 9600bps FSK AX.25, FM-Phonie-Transponder 2W | 10.09.06 gehört |
| 40655 | NO-83 / BRICsat-P | 1200/9600bps AX.25 | ||
|
|
||||
| 438.225 | 40071 | DX-1 | 9600bps GFSK AX.25 im 30s Interval | 09.10.15 gehört |
|
|
||||
| 447.447 | 8860 | Wideband / P76-5 | Beacon Experiment 400mW | |
| 448.000 | 87 | Transit-3B | ||
| 449.000 | 2018-099 | Hamilton-1 | 9600bps GFSK 2W | |
|
460-470 MHz Meteorologisches Satellitenband (MetSat) |
||||
| ~460 | 39467 | ALiCE | GMSK | |
| 461.500 | 2695 | Kosmos-144 | ||
| 462.000 | 40971 | LMRST-Sat | TT&C | |
| 462.500 | 25940 | Zi Yuan-1A / CBERS-1 | DCS
(Data Collection System) PM 1W Backup für S-Band |
|
| 28057 | Zi Yuan-1B / CBERS-2 | |||
| 32062 | Zi Yuan-1B2 / CBERS-2B | |||
| 40336 | Zi Yuan-1E / CBERS-4 | |||
| 464.000 | 2762 | Kosmos-156 | ||
| ~465 | 37851 | DICE-1 | 1,5MBit/s FSK | |
| 37852 | DICE-2 | |||
| 465.000 | - | (Okean 01 Serie) | HRPT | |
| 23657 | Sich-1 | HRPT | ||
| 23342 | Resurs O1-N3 | 7,68MBit/s BPSK 10W | ||
| 33506 | Omid (Iran's erster Satellit) | 300bps
FSK-Manchester 1-kHz-Ton im Zyklus 21s aktiv -> 99s Pause |
05.02.09 gehört 17.02.09 gehört |
|
| 37675 | Rassad-1 (Iran's zweiter Satellit) |
4800bps FSK-Manchester 1-kHz-Ton |
06.07.11 gehört 05.07.11 gehört |
|
| 38075 | Navid (Iran's dritter Satellit) | 05.02.12 gehört | ||
| 465.500 | - | Meteor | HRPT | |
| 465.9875 | 27597 | ADEOS-2 | A-DCS (Advanced Data Collection System) 200/400bps bi-phase PM, BW:54kHz 5W | |
| 29499 | MetOp-A | 27.09.15 gehört | ||
| 33591 | NOAA-19 | |||
| 38771 | MetOp-B | 19.10.13 gehört | ||
| 39086 | SARAL | 27.09.15 gehört | ||
| 466.000 | 3890 | Nimbus-3 | ||
| 466.500 | 3010 | Kosmos-184 | ||
| 23317 | Okean 01-N7 | 80kBit/s 5W | ||
| - | (Meteor 3M Serie) | HRPT BW:±120kHz 10W | ||
| - | (Resurs O1 Serie) | HRPT | ||
| 466.50-469.50 | 2018-104 | STF-1 | ||
| 467.500 | 43546 | CubeRRT | 3MBit/s OQPSK BW:3MHz 2W | |
| 467.67-467.76 | 39423 | WNISat-1 | 4800-38400bps GMSK 3W | |
| 40299 | Hodoyoshi-1 | 1000bps 1W | ||
| 43201 | TRICOM 1R / Tasuki | |||
| 467.683 | 2018-111 | GRUS-1 | ||
| 467.700 | 24277 | ADEOS-1 | 23kBit/s BPSK BW:56kHz 6x6km Auflösung | |
| 27597 | ADEOS-2 | |||
| 468.000 | 40457 | MicroMAS-1 | 1.5MBit/s OQPSK | |
| 42705 | IceCube / Earth 1 | |||
| 43132 | MicroMAS-2 | |||
| 43547 | TEMPEST-D | OQPSK BW:3MHz 2W | ||
| 468.825 | 7298 | SMS-1 | 10/40W | |
| 7648 | SMS-2 | 10/40W | ||
| 8366 | GOES-1 / SMS-C | 10/40W | ||
| 10953 | GOES-3 | 10/40W | ||
| 135°W | GOES | DCP (Data Collection Platform) 100bps | ||
| - | Zeitsignal | BW:150kHz | ||
| 468.8375 | 105°W | GOES | DCP (Data Collection Platform) 100bps | |
| 468.850 | - | Zeitsignal | BW:200kHz | |
| 10061 | GOES-2 | 10W | ||
| 11964 | GOES-4 | |||
| 12472 | GOES-5 | |||
| 468.875 | 10143 | GMS-1 / Himawari-1 | 5,5W | |
| 10489 | Meteosat-1 | |||
| 12544 | Meteosat-2 | |||
| 20217 | GMS-4 / Himawari-4 | 4W | ||
| 27597 | ADEOS-2 | A-DCS
(Advanced Data Collection System) 200/400bps bi-phase PM BW:54kHz
5W Backup-Frequenz |
||
| - | GMS (Geostationary Meteorological Satellite) | |||
| 468.883 | 10143 | GMS-1 / Himawari-1 | 5,5W | |
| 20217 | GMS-4 / Himawari-4 | 4W | ||
| - | GMS (Geostationary Meteorological Satellite) | |||
| 468.900 | 12677 | GMS-2 / Himawari-2 | ||
| 468.924 | 10143 | GMS-1 / Himawari-1 | 5,5W | |
| 20217 | GMS-4 / Himawari-4 | 4W | ||
| - | GMS (Geostationary Meteorological Satellite) | |||
| 468.925 | 10489 | Meteosat-1 | ||
| 12544 | Meteosat-2 | |||
| 469.000 | - | Elektro-L / GOMS (Geostationary Operational Meteorological Satellite) | ||
|
|
||||
| ~470 | 39026 | KMS 3-2 / Kwangmyongsong 3-2 (dt.Glänzender Stern, Satellit aus Nordkorea) | Es sollte das "Lied von General Kim Il Sung" und das "Lied von General Kim Jong Il" sowie Messinformationen ausgesendet werden. | |
| 41332 | KMS 4 / Kwangmyongsong 4 | |||
|
470-485 MHz chinesischer Bereich für Weltraumfunk |
||||
| 479.865 | 26481 | Zi Yuan-2A / Jiang Bing 3-1 | Tracking Beacon | |
| 479.869 | 27550 | Zi Yuan-2B / Jiang Bing 3-2 | Tracking Beacon | |
| 479.970 | - | FSW (Fanhui Shi Weixing) | Tracking Beacon (Rückkehrfähiger Spionage-Foto-Satellit mit Filmkapsel) | |
| 480.017 | 25730 | Feng Yun-1C | Tracking Beacon | 24.01.02 gehört |
| 480.019 | 27431 | Feng Yun-1D | Tracking Beacon | |
| 480.020 | 24834 | Feng Yun-2A | ||
| 26382 | Feng Yun-2B | |||
| 480.025 | 25940 | Zi Yuan-1A / CBERS-1 | Tracking Beacon | |
| 480.037 | 28057 | Zi Yuan-1B / CBERS-2 | Tracking Beacon | |
|
|
||||
| 483.000 | 37212 | Meridian-3 | BW:43kHz | |
| 483.500 | 29668 | Meridian-1 | ||
| 483.750 | 37212 | Meridian-3 | Primär Kanal BW:43kHz | |
| 37398 | Meridian-4 | |||
| 38995 | Meridian-6 | |||
| 40296 | Meridian-7 | |||
| 484.000 | 35008 | Meridian-2 | BW:43kHz | |
| 484.250 | 37212 | Meridian-3 | Sekundär Kanal BW:43kHz | |
| 37398 | Meridian-4 | |||
| 38995 | Meridian-6 | |||
| 40296 | Meridian-7 | |||
|
625-650 MHz russisches Satellitenband |
||||
| ~600 | - | (Okean 01 Serie) | BITS2-7 (Bord-Informations-Telemetrie-System) 256kBit/s PCM-FM BW:±128kHz | |
|
|
||||
| 648.000 | 705 | Transit 5E-3 | ||
|
702-726 / 742-766 MHz russische Satelliten-Rundfunkbänder |
||||
| 714.000 | - | Ekran | Transponder 1 TV-Übertragung 200W | |
| 754.000 | - | Ekran | Transponder 2 TV-Übertragung 200W | |
|
|
||||
| 860.000 | 7318 | ATS-6 | TV 105W | |
|
902-928 MHz 33-cm AFu Satellitenband (IARU Region 2&3) |
||||
| 910.000 | 39151 | NEE-01 Pegaso | FM TV Signal mit BW:25MHz 3W | |
| 39441 | NEE-02 Krysaor | Morse-Kode, SSTV, live Video 900mW | ||
| 914.700 | 37752 | PSSC-2 (Pico Satellite Solar Cell) | 38,4kBit/s | |
| 2018-104 | TOMSat / AeroCube-11A / -11B | |||
| 915.000 | 29660 | MEPSI (MEMS based PICOSAT Inspector) | 100mW | |
| 31133 | AeroCube-2 | 9600bps GFSK 2W | ||
| 35005 | AeroCube-3 | |||
| 39567 | SkyCube | 57,6kBit/s | ||
| 40045 | AeroCube-6A | |||
| 40046 | AeroCube-6B | |||
|
914.80-930.80 MHz russisches Satellitenband |
||||
| 922.750 | 6498 | Kosmos-557 / DOS-3 | ||
| 922.760 | DeepSpace | Mars-1 | ||
| 922.763 | DeepSpace | Venera-5 | ||
| DeepSpace | Venera-6 | |||
| 922.800 | DeepSpace | Venera-1 | ||
| 928.400 | DeepSpace | Mars-2 | ||
| DeepSpace | Mars-3 | |||
| DeepSpace | Venera-8 | |||
| DeepSpace | Prognoz-1 | |||
| DeepSpace | Prognoz-3 | |||
| DeepSpace | Mars-4 | |||
| DeepSpace | Mars-5 | |||
| DeepSpace | Mars-6 | |||
| DeepSpace | Mars-7 | |||
| DeepSpace | Prognoz-6 | |||
| DeepSpace | Prognoz-8 | |||
| DeepSpace | Venera-13 | |||
| DeepSpace | Venera-14 | |||
| 928.429 | DeepSpace | Venera-7 | ||
|
|
||||
| 959.520 | DeepSpace | Ranger-6 | Channel F TV 60W | |
| DeepSpace | Ranger-7 | |||
| DeepSpace | Ranger-8 | |||
| DeepSpace | Ranger-9 | |||
| 960.000 | DeepSpace | Ranger-4 | 50mW | |
| DeepSpace | Ranger-5 | Lunar Kapsel 50mW | ||
| 960.050 | DeepSpace | Pioneer-3 | 180mW | |
| DeepSpace | Pioneer-4 | 180mW | ||
| DeepSpace | Ranger-1 | 3W | ||
| DeepSpace | Ranger-2 | 3W | ||
| DeepSpace | Mariner-2 | 3W | ||
| DeepSpace | Ranger-6 | 3W | ||
| DeepSpace | Ranger-7 | 3W | ||
| DeepSpace | Ranger-8 | TLM, Tracking Beacon 3W | ||
| DeepSpace | Ranger-9 | TLM, Tracking Beacon 3W | ||
| 960.100 | DeepSpace | Ranger-1 | 250mW | |
| DeepSpace | Ranger-2 | 250mW | ||
| 960.580 | DeepSpace | Ranger-6 | Channel P TV 60W | |
| DeepSpace | Ranger-7 | |||
| DeepSpace | Ranger-8 | |||
| DeepSpace | Ranger-9 | |||
|
|
||||
| 972.000 | 1726 | Explorer-29 / GOES-1 | Ionospheric Beacon 500mW | |
| 3093 | Explorer-36 / GEOS-2 | Ionospheric Beacon 500mW | ||
|
|
||||
| 1066.752 | - | CERTO (Coherent Electromagnetic Radio Tomography) | ||
| 29047 | FormoSat-3A / COSMIC-3A | Tracking Beacon 2W | ||
| 29048 | FormoSat-3B / COSMIC-3B | |||
| 29049 | FormoSat-3C / COSMIC-3C | |||
| 29050 | FormoSat-3D / COSMIC-3D | |||
| 29051 | FormoSat-3E / COSMIC-3E | |||
| 29052 | FormoSat-3F / COSMIC-3F | |||
| 25157 | GFO 1 / Geosat Follow-On | |||
| 22698 | RADCAL / P92-1 | |||
| 32765 | C/NOFS / P00-3 | |||
| 30775 | STPSat-1 | |||
| 25991 | DMSP F15 / USA 147 | |||
| 39265 | Cassiope-1 | |||
|
|
||||
| 1239.084 | 8860 | Wideband / P76-5 | Beacon Experiment 200mW | |
| 14154 | HiLat (High Latitude Reseach Satellite) / P83-1 | Beacon Experiment | ||
| 17070 | Polar BEAR (Beacon Experiment and Auroral Research) / P87-1 | Beacon Experiment | ||
|
|
||||
