| VHF Satelliten-Frequenzliste |
Autor: Maik Hermenau |
|
HF-Satliste | VHF-Satliste | UHF-Satliste | S-Band-Satliste | Bemannte Raumfahrt und Trägersysteme |
|
107.9-108.1 MHz amerikanisches Satellitenband (Nutzung bis ~1961) |
||||
| Frequenz in MHz | Objekt Nr. | Satellit | Signalparameter | Hör-Status |
| 107.940 | 10 | Score | ||
| 107.970 | 10 | Score | ||
| 49 | Echo-1 | 10mW | ||
| 107 | Explorer-11 | |||
| 107.971 | 58 | Courier-1B | TRK 50mW | |
| 107.997 | 9 | Explorer-4 | 10mW | |
| 29 | TIROS-1 | |||
| 108.000 | 4 | Explorer-1 | 10mW | |
| 5 | Vanguard-1 | 10mW | ||
| 6 | Explorer-3 | 10mW | ||
| 11 | Vanguard-2 | 10mW | ||
| 20 | Vanguard-3 | 30mW | ||
| 22 | Explorer-7 | |||
| 29 | TIROS-1 | 30mW | ||
| 46 | Solrad-1 / Greb | 40mW | ||
| 58 | Courier-1B | TLM 1,5W | ||
| 60 | Explorer-8 | 100mW | ||
| 63 | TIROS-2 | 30mW | ||
| 98 | Explorer-10 | |||
| 117 | Solrad-3 / Injun-1 | |||
| 162 | TIROS-3 | 30mW | ||
| 108.030 | 4 | Explorer-1 | 60mW | |
| (108.022) | 5 | Vanguard-1 | 5mW | |
| 6 | Explorer-3 | 50mW | ||
| 9 | Explorer-4 | 30mW | ||
| 11 | Vanguard-2 | 80mW | ||
| 20 | Vanguard-3 | 80mW | ||
| 29 | TIROS-1 | 30mW | ||
| 63 | TIROS-2 | 30mW | ||
| 162 | TIROS-3 | 30mW | ||
| 108.060 | 45 | Transit-2A | ||
| (108.058) | 107 | Explorer-11 | 20-25mW | |
| 110 | Pioneer-1 | 300mW | ||
| 108.090 | 116 | Transit-4A | ||
| 110 | Pioneer-1 | 1W | ||
|
|
||||
| 132.405 | 10 | Score |
8W (Mit einem Tonband was vor dem Start
mit der Weihnachtsansprache des US Präsidenten Eisenhower bespielt worden ist.) |
|
| 132.435 | 10 | Score | ||
|
|
||||
| 135.550 - 135.650 | 2608 | ATS-1 | Transponder 40W | |
| 3029 | ATS-3 | Transponder 50W | ||
|
136-137 MHz internationales Satellitenband (Nutzung bis ~1996) |
||||
| 136.000 | 81 | Explorer-9 / S 56A | Tracking Beacon 15mW | |
| 340 | Telstar-1 | TLM | ||
| 432 | Explorer-14 / EPE-B / Serb-53A | PFM-PM 16 Kanäle Time-Division Multiplex 2W | ||
| 4128 | Interkosmos-1 | |||
| 12848 | Aureole-3 / Oreol-3 / ARCAD-3 | |||
| 13492 | ETS-3 / Kiku-4 | 1W | ||
| 136.020 | 170 | Explorer-12 / EPE-A | PFM-PM 16 Kanäle Time-Division Multiplex 2W | |
| 740 | Echo-2 | 45mW | ||
| 2258 | Explorer-33 / AIMP-D | 7W | ||
| 136.040 | 5928 | SRET-1 / MAS-1 | 100mW | |
| 136.050 | 573 | Telstar-2 | TLM 200mW | |
| 2632 | BioSat-1 | Rückkehrkapsel Tracking Beacon 200mW | ||
| 2935 | BioSat-2 | Rückkehrkapsel Tracking Beacon 100mW | ||
| 3233 | ESRO-2 / Iris | 200mW | ||
| 4000 | BioSat-3 | Rückkehrkapsel Tracking Beacon 100mW | ||
| 5879 | TD-1A | TLM, Tracking Beacon 1W | ||
| 10064 | D-2B / Signe-3 | |||
| 136.070 | 23646 | Magion-4 | ||
| 24292 | Magion-5 | |||
| 136.080 | 424 | Alouette-1 | TLM 2W | |
| 924 | Explorer-23 | TLM 200mW | ||
| 1804 | Alouette-2 | Sweep-Sender TLM 4W (Das Frequenzband zwischen 1.6-11.5 MHz wird abgetastet und mit 67 Impulse pro Sekunde übertragen.) | 11.12.13 gehört | |
| 3669 | ISIS-1 | 4W | ||
| 3990 | Explorer-41 / IMP-5 | 4W | ||
| 5104 | ISIS-2 | 4W | ||
| 136.100 | 445 | Explorer-15 / EPE-C / Serb-53B | PFM-PM 16 Kanäle Time-Division Multiplex 2W | |
| 136.110 | 2884 | Explorer-35 / AIMP-E | 7W | |
| 136.111 | 693 | Explorer-18 / IMP-1 | 4W | |
| 136.112 | 7318 | ATS-6 | ||
| 11261 | ECS-A / Ayame-1 | 2/8W | ||
| 11715 | ECS-B / Ayame-2 | 2/8W | ||
| 12295 | ETS-4 / Kiku-3 | 1,2W | ||
| 16910 | MABES / Jindai | 1,2W | ||
| 17527 | MOS-1 / Mono-1 | 1W | ||
| 136.1123 | 9852 | ETS-2 / Kiku-2 | TLM 2W | |
| 136.120 | 17527 | MOS-1A / Momo 1A | ||
| 136.122 | 20478 | MOS-1B / Momo 1B | ||
| 136.125 | 1388 | Explorer-28 / IMP-3 | 4W | |
| 136.140 | 503 | Relay-1 | TLM, Tracking Beacon 250mW | |
| 10294 | Sirio | TLM, Tracking Beacon 6,5W | ||
| 136.141 | 737 | Relay-2 | TLM, Tracking Beacon 250mW | |
| 2817 | Explorer-34 / IMP-4 | 4W | ||
| 136.142 | 889 | Explorer-21 / IMP-2 | 4W | |
| 136.145 | 6686 | Explorer-49 / RAE-2 | Tracking Beacon 1,2W | |
| 136.150 | 24292 | Magion-5 | ||
| 136.159 | 4330 | Ohsumi (erster japanischer Satellit) | Tracking Beacon 50mW | |
| 136.170 | 740 | Echo-2 | 45mW | |
| 3459 | ESRO-1A / Aurorae | TLM 200mW | ||
| 4114 | ESRO-1B / Boreas | TLM 200mW | ||
| 5043 | Explorer-43 / IMP-6 | TLM 4W | ||
| 10818 | HCMM | TLM, Tracking Beacon 250mW | ||
| 136.171 | 899 | Explorer-22 / BE-2 | Tracking Beacon 30mW | |
| 136.200 | 117 | Solrad-3 / Injun-1 | ||
| 180 | Explorer-13 / S 55A | |||
| 506 | Explorer-16 / S 55B | 200mW | ||
| 879 | OGO-1 | Tracking Beacon 100mW | ||
| 1620 | OGO-2 | |||
| 2195 | OGO-3 | |||
| 2895 | OGO-4 | |||
| 3138 | OGO-5 | |||
| 3986 | OGO-6 | |||
| 11081 | CAMEO | 2W | ||
| 136.220 | 2142 | OAO-1 | TLM 1000bps 1,6W | |
| 136.230 | 226 | TIROS-4 | Tracking Beacon 50mW, TLM Seitenbänder auf ±10kHz, ±50kHz FM-AM-Zeitmultiplex | |
| 309 | TIROS-5 | |||
| 397 | TIROS-6 | |||
| 604 | TIROS-7 | |||
| 716 | TIROS-8 | |||
| 978 | TIROS-9 | |||
| 1430 | TIROS-10 | |||
| 1982 | ESSA-1 / OT-3 | Tracking Beacon 50mW | ||
| 4327 | SERT-2 | |||
| 7318 | ATS-6 | TLM 2W | ||
| 136.250 | 7802 | D-5B / Castor | TLM, Tracking Beacon 250mW | |
| 136.260 | 2768 | ERS-20 / OV5-3 | ||
| 3597 | OAO-2 / Stargazer | TLM 1,6W | ||
| 6153 | OAO-3 / Copernikus | TLM 2W | ||
| 136.275 | 963 | Explorer-26 / EPE-D | 2W | |
| 136.290 | 932 | Explorer-25 / Injun-4 | Tracking Beacon 70mW, TLM Real-Time-Data AM-Mode | |
| 2703 | OSO-3 | TLM, Tracking Beacon 57 oder 570mW | ||
| 3338 | Explorer-40 / Injun-5 | 250mW | ||
| 3663 | OSO-5 | TLM, Tracking Beacon 57 oder 570mW | ||
| 5491 | OSO-7 | TLM, Tracking Beacon 57 oder 570mW | ||
| 7325 | Explorer-52 / Hawkeye | TLM 100/200bps, Tracking Beacon 1W | ||
| 136.300 | 7298 | SMS-1 | ||
| 136.319 | 728 | Poppy-3C / GGSE-1 / Gravity Gradient-1 | ||
| 136.320 | 564 | Explorer-17 / AE-A | TLM 500mW | |
| 2183 | Explorer-32 / AE-B | TLM 500mW | ||
| 3067 | TTS-1 / TETR-1 | 100mW | ||
| 3093 | Explorer-36 / GEOS-2 | TLM, Tracking Beacon 400mW | ||
| 4066 | PAC-A | TLM 250mW | ||
| 5681 | Poppy-7C | |||
| 6142 | Explorer-46 / MTS | Tracking Beacon 500mW, TLM | ||
| 7734 | GEOS-3 | Tracking Beacon 400mW, TLM 1,5W | ||
| 136.34827 | 3054 | WreSat-1 | 100mW | |
| 136.350 | 870 | Explorer-20 / IE-A | TLM 2W | |
| 1814 | FR-1 | Tracking Beacon 1W, TLM | ||
| 3307 | Explorer-38 / RAE-1 | 250mW | ||
| 4801 | Peole | 1536bps 250mW oder 1W | ||
| 5435 | EOLE-1 / CAS-A | TLM 250mW | ||
| 26873 | Coronas-F | 65,5kBit/s PSK/FSK (Backup für 1,7GHz) | ||
| 136.380 | 1806 | Explorer-31 / ISIS-X | 2W | |
| 2769 | OV5-1 / ERS-27 | |||
| 3951 | OV5-6 / ERS-26 | |||
| 4690 | OFO-1 | Tracking Beacon 50mW | ||
| 5317 | Solrad-10 / Explorer-44 / SE-3 | 250mW | ||
| 7298 | SMS-1 | TLM, Tracking Beacon 2/8W | ||
| 7648 | SMS-2 | |||
| 8366 | GOES-1 / SMS-C | |||
| 10061 | GOES-2 | |||
| 10953 | GOES-3 | |||
| 12472 | GOES-5 | |||
| 14050 | GOES-6 | |||
| 17561 | GOES-7 | |||
| 10973 | Kosmos-1025 (Zelina-D-Serie) | |||
| 136.408 | 285 | Ariel-1 / UK-1 | PFM-PM 250mW | |
| 136.410 | 1381 | Pegasus-2 | 1W | |
| 1467 | Pegasus-3 | 1W | ||
| 3141 | Solrad-9 / Explorer-37 / SE-2 | 500mW | ||
| 3669 | ISIS-1 | Tracking Beacon 60mW | ||
| 5104 | ISIS-2 | Tracking Beacon 60mW | ||
| 136.415 | 608 | ERS-6 / TRS-3 | ||
| 136.430 | 11392 | Bhaskara-1 / SAMIR | ||
| 12968 | Bhaskara-2 | |||
| 136.440 | 1085 | Pegasus-1 | 1W | |
| 1317 | Early Bird / Intelsat 1-F1 | TLM 1,8W | ||
| 1738 | Solrad-8 / Explorer-30 / SE-1 | 100mW | ||
| 2142 | OAO-1 | Tracking Beacon 100mW | ||
| 2411 | Secor-7 / EGRS-7 | |||
| 2639 | Intelsat 2-F2 | |||
| 2717 | Intelsat 2-F3 | |||
| 2969 | Intelsat 2-F4 | |||
| 3597 | OAO-2 / Stargazer | Tracking Beacon 160mW | ||
| 6153 | OAO-3 / Copernikus | Tracking Beacon 560mW | ||
| 136.470 | 553 | Syncom-1 | TLM 1.5W | |
| (136.468) | 634 | Syncom-2 | TLM 1,5W | |
| 858 | Syncom-3 | TLM 1.5W | ||
| 2608 | ATS-1 | TLM 2,1W | ||
| 2743 | ATS-2 | TLM 2,1W | ||
| 3029 | ATS-3 | TLM 1,6W | ||
| 3344 | ATS-4 | TLM 2W | ||
| 4068 | ATS-5 | TLM 2W | ||
| 136.500 | 116 | Transit-4A | ||
| 872 | Nimbus-1 | Tracking Beacon 350mW | ||
| 2173 | Nimbus-2 | Tracking Beacon 350mW | ||
| 3890 | Nimbus-3 | Tracking Beacon 300mW | ||
| (136.504 / 136.499) | 4362 | Nimbus-4 |
TRK, TLM Seitenbänder auf ±5kHz 500mW |
07.03.07 gehört |
| 6305 | Nimbus-5 | Tracking Beacon 500mW | ||
| 7924 | Nimbus-6 | Tracking Beacon 500mW | ||
| 136.520 | 3141 | Solrad-9 / Explorer-37 / SE-2 | 150mW | |
| 136.530 | 1738 | Solrad-8 / Explorer-30 / SE-1 | 100mW | |
| 1778 | A-1 / Asterix | TLM, Tracking Beacon 100mW | ||
| 2767 | ERS-18 / ORS-4 | PAM/FM/FM, 16 Channel 1W | ||
| 3952 | OV5-9 | 17W | ||
| 5382 | Cannon Ball-2 / OAR-901 | |||
| 8749 | Solrad-11B | TLM 5W | ||
| 136.536 | 957 | San Marco-1 | TLM 250mW | |
| 136.5575 | 771 | Ariel-2 / UK-2 | 250mW | |
| 136.560 | 564 | Explorer-17 / AE-A | Tracking Beacon 25mW | |
| 2183 | Explorer-32 / AE-B | Tracking Beacon 25mW | ||
| 2773 | Ariel-3 / UK-3 | 200mW | ||
| 4221 | Azur / GRS-A (erster deutscher Satellit) | TLM 500mW | ||
| 4344 | Wika | TLM 500mW | ||
| 136.575 | 6686 | Explorer-49 / RAE-2 | Tracking Beacon 1,2W | |
| 136.590 | 424 | Alouette-1 | TLM 250mW | |
| 1804 | Alouette-2 | TLM 1W | ||
| 3669 | ISIS-1 | TLM 2W | ||
| 5104 | ISIS-2 | TLM 3W | ||
| 136.610 | 7801 | D-5A / Pollux | TLM, Tracking Beacon 100mW | |
| 12546 | CAT-3 (Capsule Ariane Technologique) | |||
| 136.620 | 503 | Relay-1 | TLM, Tracking Beacon 250mW | |
| 3337 | Explorer-39 / Air Density-4 | 50mW | ||
| 3428 | OV2-5 / DG7-2 | 2W | ||
| 5492 | TTS-4 / TETR-4 | TLM, Tracking Beacon 100mW | ||
| 10294 | Sirio | TLM, Tracking Beacon 6W | ||
| 136.621 | 737 | Relay-2 | Tracking Beacon 250mW | |
| 136.630 | 10064 | D-2B / Signe-3 | ||
| 136.631 | 5128 | D-2A / Tournesol | Tracking Beacon | |
| 136.650 | 202 | Transit-4B / TRAAC | ||

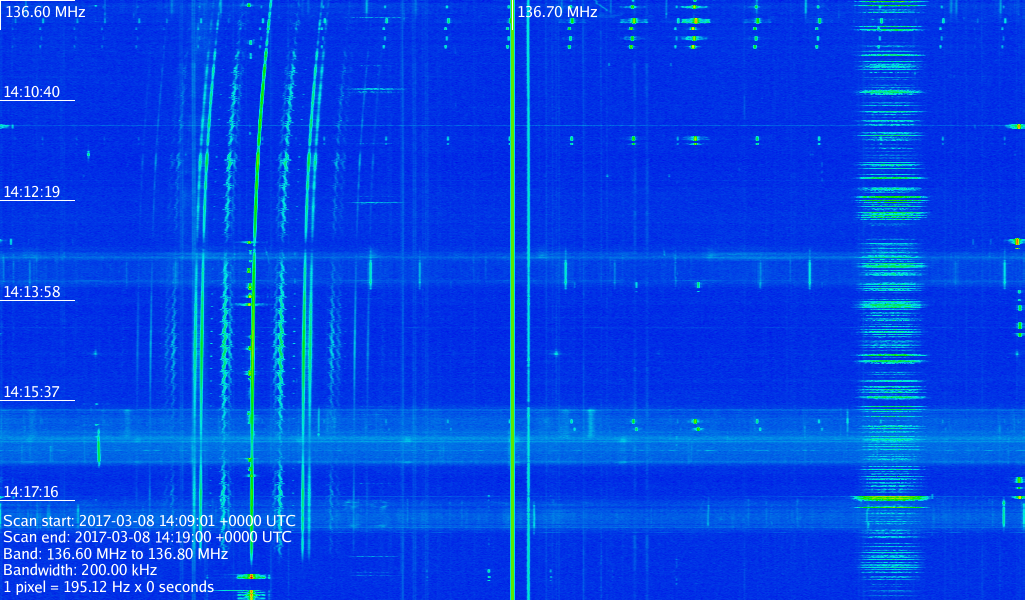

| 965 | Transit-5B-5 |
TRK, TLM
Seitenbänder auf ±6kHz, ±10kHz [funktioniert nur noch im Sonnenlicht][Heatmap] |
11.02.18 gehört | |
| 3595 | Heos-A1 | 6W | ||
| 3950 | OV5-5 / ERS-29 | |||
| 6142 | Explorer-46 / MTS | 75mW | ||
| 136.651 | 670 | Transit-5B-1 / SN-39 | ||
| 671 | Transit 5E-1 / Radiation Satellite | |||
| 959 | Transit-5E-5 / SN-43 | |||
| 136.680 | 870 | Explorer-20 / IE-A | TLM 75mW | |
| 2632 | BioSat-1 | TLM 3,5W | ||
| 2935 | BioSat-2 | TLM 2W | ||
| 4000 | BioSat-3 | TLM 2W | ||
| 4797 | Explorer-42 / SAS-1 | TLM 2W, Tracking Beacon 200mW | ||
| 5814 | Heos-A2 | TLM 5,9W | ||
| 6282 | Explorer-48 / SAS-2 | TLM 1000bps PCM-PM, Tracking Beacon 250mW | ||
| 7788 | Explorer-53 / SAS-3 | TLM 1,5W, Tracking Beacon 250mW | ||
| 24701 | Bion-11 | |||

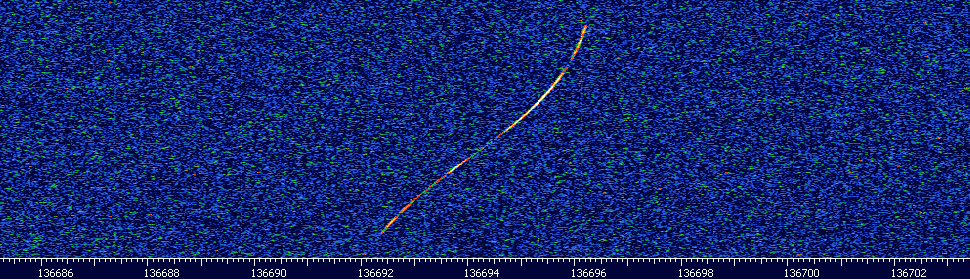

| 136.694 | 5485 | Shinsei / MS-F2 |
Tracking Beacon 90mW [funktioniert nur noch im Sonnenlicht] |
28.11.15 gehört |
| 136.695 | 6152 | Denpa / REXS | Tracking Beacon 90mW | |
| 11027 | EXOS-B / Jikiken | Tracking Beacon 100/500mW | ||
| 136.6952 | 4952 | MS-T1 / Tansei-1 | Tracking Beacon 90mW | |
| 136.700 | 10064 | D-2B / Signe-3 | 256bps PCM-PM 500mW | |
| 136.709 | 931 | Explorer-24 / Air Density-3 | Tracking Beacon 50mW | |
| 136.710 | 3000 | OSO-4 | TLM, Tracking Beacon 500mW | |
| 4065 | OSO-6 | TLM, Tracking Beacon 540mW | ||
| 7531 | Intasat-1 | TLM, Tracking Beacon 100mW | ||
| 136.712 | 987 | OSO-2 | TLM, Tracking Beacon 570mW | |
| 136.725 | 7122 | MS-T2 / Tansei-2 | Tracking Beacon 100mW | |
| 7671 | Taiyo / SRATS | Tracking Beacon 100mW | ||
| 9841 | MS-T3 / Tansei-3 | Tracking Beacon | ||
| 10664 | EXOS-A / Kyokko | Tracking Beacon 100mW | ||
| 11272 | Corsa-B / Hakucho | TLM 500mW | ||
| 11706 | MS-T4 / Tansei-4 | Tracking Beacon | ||
| 12307 | Astro-1 / Hinotori | Tracking Beacon | ||
| 136.738 | 957 | San Marco-1 | Tracking Beacon 40mW | |
| 136.739 | 1244 | Poppy-4C / GGSE-2 / Gravity Grandient-2 | ||
| 136.740 | 1328 | Explorer-27 / BE-3 | Tracking Beacon 300mW | |
| 2761 | San Marco-2 | |||
| 4221 | Azur (erster deutscher Satellit) | TLM 500mW | ||
| 5176 | San Marco-3 | |||
| 7154 | San Marco-4 | |||
| 8332 | D-2B / Aura | TRK, TLM 256bps Real-Time-Data, 11kBit/s Stored-Data 5W | ||
| 136.744 | 255 | OSO-1 | ||
| 136.770 | 2091 | ESSA-2 / OT-2 | Tracking Beacon 250mW | |
| 2435 | ESSA-3 / TOS-A | |||
| 2657 | ESSA-4 / TOS-B | |||
| 2757 | ESSA-5 / TOS-C | |||
| 3035 | ESSA-6 / TOS-D | |||
| 3345 | ESSA-7 / TOS-E | |||
| 3615 | ESSA-8 / TOS-F | |||
| 3764 | ESSA-9 / TOS-G | |||
| 4320 | ITOS-1 / TIROS-M | |||
| 4793 | NOAA-1 / ITOS-A | |||
| 6235 | NOAA-2 / ITOS-D | |||
| 6920 | NOAA-3 / ITOS-F | |||
| 7529 | NOAA-4 / ITOS-G | |||
| 9057 | NOAA-5 / ITOS-H | |||
| 11416 | NOAA-6 / NOAA-A |
DSB (Direct Sounder Broadcast) TRK, TLM Seitenbänder auf ±8kHz 8320bps PSK Split-Phase/PM 1W |
||
| 12553 | NOAA-7 / NOAA-C | |||
| 13923 | NOAA-8 / NOAA-E | |||
| 15427 | NOAA-9 / NOAA-F |
stiller Träger 1W [funktioniert nur noch im Sonnenlicht] |
04.03.16 gehört | |
| 16969 | NOAA-10 / NOAA-G |
DSB (Direct Sounder Broadcast) TRK, TLM Seitenbänder auf ±8kHz 8320bps PSK Split-Phase/PM 1W |
||
| 19531 | NOAA-11 / NOAA-H | |||
| 21263 | NOAA-12 / NOAA-D | 03.01.07 gehört | ||
| 22739 | NOAA-13 / NOAA-I | |||
| 23455 | NOAA-14 / NOAA-J | |||
| 13736 | DMSP F6 | |||
| 21798 | DMSP F11 / USA 73 | |||
| 136.771 | 838 | ERS-13 / TRS-6 | ||
| 136.776 | 1292 | Poppy-4D / GGSE-3 / Gravity Grandient-3 | ||
| 136.797 | 4362 | Nimbus-4 | ||
| 136.800 | 202 | Transit-4B / TRAAC | ||
| 1814 | FR-1 | TLM, Tracking Beacon 250mW | ||
| 2412 | ERS-15 / ORS-1 | |||
| 2867 | DODGE | |||
| 3891 | Secor-13 / EGRS-13 / S69-2 | TLM 2W | ||
| 5678 | Poppy-7A | |||
| 6893 | Explorer-50 / IMP-8 | TLM 32kBit/s, Tracking Beacon 8W | ||
| 8132 | Symphonie-2 | TLM, Tracking Beacon 900mW/5,2W | ||
| 8709 | ISS-A / UME | TLM 1W, Tracking Beacon 100mW | ||
| 10061 | GOES-2 | |||
| 136.801 | 1291 | Solrad-7B / Poppy-4A |
Tracking Beacon 100mW,
TLM Seitenbänder [funktioniert nur noch im Sonnenlicht] |
16.03.15 gehört |
| 136.804 | 729 | Secor-1 / EGRS-1 | ||
| 1208 | Secor-4 / EGRS-4 | |||
| 136.8097 | 10674 | ISS-B / UME-2 | TLM 1W, Tracking Beacon 100mW | |
| 136.810 | 8197 | ETS-1 / Kiku-1 | TLM, Tracking Beacon 1W | |
| 136.830 | 1726 | Explorer-29 / GOES-1 | TLM, Tracking Beacon 400mW | |
| 2520 | Secor-8 / EGRS-8 | |||
| 3429 | ERS-28 / OV5-2 | |||
| 5598 | Explorer-45 / SSS-A | TLM, Tracking Beacon 500mW | ||
| 136.840 | 1250 | Secor-2 / EGRS-2 | ||
| 2861 | Secor-9 / EGRS-9 / P67-1 | |||
| 4363 | Topo-1 | Tracking Beacon | ||
| 136.857 | 924 | Explorer-23 / S 55C | TLM 200mW | |
| 136.860 | 180 | Explorer-13 / S 55A | ||
| 506 | Explorer-16 / S 55B | 200mW | ||
| 932 | Explorer-25 / Injun-4 | TLM Tape-Recorder-Data PM-Mode 3W | ||
| 3430 | ERS-21 / OV5-4 | |||
| 3534 | TTS-2 / TETR-2 | 100mW | ||
| 4692 | RMS | Tracking Beacon 50mW | ||
| 5382 | Cannon Ball-2 / OAR-901 | |||
| 6686 | Explorer-49 / RAE-2 | TLM 6W | ||
| 10637 | IUE (International Ultraviolet Explorer) | TLM, Tracking Beacon 6W | ||
| 13367 | Landsat-4 | |||
| 14780 | Landsat-5 | |||
| 136.870 | 504 | Injun-3 | ||
| 136.887 | 730 | Solrad-7A / GREB-5 | 100mW | |
| 136.890 | 599 | Solrad-6 / Sunray-5 | 100mW | |
| 1085 | Pegasus-1 | TLM, Tracking Beacon 100mW | ||
| 1381 | Pegasus-2 | TLM, Tracking Beacon 100mW | ||
| 1467 | Pegasus-3 | TLM, Tracking Beacon 100mW | ||
| 3233 | Esro-2 / Iris | 200mW | ||
| 6197 | Explorer-47 / IMP-7 | TLM 8W | ||
| 10143 | GMS-1 / Himawari-1 | 7,4W | ||
| 12677 | GMS-2 / Himawari-2 | |||
| 20479 | Orizuru / Debut | |||
| 136.891 | 635 | ERS-9 / TRS 4 | ||
| 136.892 | 579 | ERS-5 / TRS-2 | ||
| 136.920 | 226 | TIROS-4 | Tracking Beacon 50mW | |
| 309 | TIROS-5 | |||
| 397 | TIROS-6 | |||
| 604 | TIROS-7 | |||
| 716 | TIROS-8 | |||
| 978 | TIROS-9 | |||
| 1430 | TIROS-10 / OT-1 | |||
| 1982 | ESSA-1 / OT-3 | Tracking Beacon 50mW | ||
| (136.928) | 4327 | SERT-2 | ||
| 7970 | OSO-8 | TLM, Tracking Beacon 2W | ||
| 136.950 | 716 | TIROS-8 | APT 5W | |
| 872 | Nimbus-1 | APT 5W | ||
| 2173 | Nimbus-2 | APT 5W | ||
| 3459 | ESRO-1A / Aurorae | TLM 1,2W | ||
| 3890 | Nimbus-3 | APT 5W | ||
| 4114 | ESRO-1B / Boreas | TLM 1,2W | ||
| 4362 | Nimbus-4 | APT 5W | ||
| 5598 | Explorer-45 / SSS-A | 3W | ||
| 8062 | COS-B | TLM, Tracking Beacon 6,5W | ||
| 136.980 | 424 | Alouette-1 | Tracking Beacon 50mW | |
| 553 | Syncom-1 | TLM 1.5W | ||
| 634 | Syncom-2 | TLM 1,5W | ||
| 858 | Syncom-3 | TLM 1.5W | ||
| 1317 | Early Bird / Intelsat 1-F1 | TLM 1,8W | ||
| 1804 | Alouette-2 | Tracking Beacon 100mW | ||
| 2016 | D-1A / Diapason | 250mW | ||
| 2639 | Intelsat 2-F2 | |||
| 2674 | D1-C / Diademe-1 | TLM 250mW | ||
| 2680 | D1-D / Diademe-2 | TLM 250mW | ||
| 2717 | Intelsat 2-F3 | |||
| 2969 | Intelsat 2-F4 | |||
| 136.992 | 604 | TIROS-7 | APT 2W | |
|
137-138 MHz internationales Satellitenband |
||||
| 137.020 | 7578 | Symphonie-1 | 900mW/5,2W | |
| 137.035 | 19467 | Feng Yun-1A (1-1) | APT | |
| 20788 | Feng Yun-1B (1-2) | APT | ||
| 137.050 | 5675 | Ariel-4 / UK-4 | TLM, Tracking Beacon 250mW | |
| 5682 | Poppy-7D | |||
| 10855 | OTS-2 | TLM, Tracking Beacon 5W | ||
| 21576 | Orbcomm-X | 4800bps SDPSK 20W, DCS-1, VSUME | ||
| 137.080 | ? | SSU Precursor-2 | ||
| 5680 | Poppy-7B | |||
| 10489 | Meteosat-1 | TLM, Tracking Beacon 6W | ||
| 12544 | Meteosat-2 | |||
| 19215 | Meteosat-3 | |||
| 137.100 | 11251 | Meteor 1-29 | APT 5W | |
| 28654 | NOAA-18 / NOAA-N | APT 5W | 08.02.08 gehört | |
| 29499 | MetOp-A | LRPT Auflösung 1,09km, 72kBit/s QPSK, BW:100kHz | 16.01.07 gehört | |
| 33591 | NOAA-19 / NOAA-N2 | APT 5W | 28.02.16 gehört | |
| (137.096) | 35865 | Meteor M1 | LRPT 72/80kBit/s QPSK/OQPSK, BW:100kHz, 4W | 18.03.16 gehört |
| 40069 | Meteor M2 | 30.11.15 gehört | ||
| 44387 | Meteor M2-N2 | 24.07.19 gehört | ||
| 137.110 | 7318 | ATS-6 | TLM 2W | |
| 137.130 | 27841 | MIMOSA (Micro Measurements Of Satellite Acceleration) | TLM
1200bps PM bi-phase 5000bps 50mW Kontrollstation in Panska Ves, Tschechien |
03.06.10 gehört |
| 137.140 | 2876 | Aurora-1 | ||
| 6920 | NOAA-3 / ITOS-F | TLM, Tracking Beacon 250mW | ||
| 7529 | NOAA-4 / ITOS-G | TLM, Tracking Beacon 250mW | ||
| 9057 | NOAA-5 / ITOS-H | TLM, Tracking Beacon 250mW | ||
| 15158 | ECS-2 / Eutelsat 1-F2 | |||
| 137.142 | 18351 | ECS-4 / Eutelsat 1-F4 | TRK,
TLM Seitenbänder auf ±2,56kHz 160bps BPSK 8W im unregelmäßigen
Intervall im Friedhofs-GEO (Drift -5.76°/d westlich) [funktioniert nur noch im Sonnenlicht] |
17.03.15 gehört |
| 137.150 | 8799 | Meteor 1-24 | APT Auflösung 2km, 5W | |
| 8845 | Meteor 1-25 | |||
| 9481 | Meteor 1-26 | |||
| 9903 | Meteor 1-27 | |||
| 10113 | Meteor 1-28 | |||
| 11848 | Meteor 1-30 | |||
| 12585 | Meteor 1-31 / Priroda | |||
| 11110 | Magion-1 | TLM 250mW | ||
| 21835 | Magion-3 | |||
| 24292 | Magion-5 | |||
| 137.170 | 5043 | Explorer-43 / IMP-6 | TLM, Tracking Beacon 8W | |
| 13010 | Marecs-A | |||
| 15386 | Marecs-B2 | |||
| 137.175 | 12968 | Bhaskara-2 | ||
| 137.192 (137.292) | 12545 | Apple | TLM PCM/FM/PM (nur während des GTO) | |
| 137.200 | 6285 | ESRO-4 | TLM 640/10240bps PCM/PM 2,8W, Tracking Beacon 300mW | |
| 9931 | ESA-GEOS-1 | 186/744bps 6W | ||
| 10981 | ESA-GEOS-2 | 186/744bps 6W | ||
| 12968 | Bhaskara-2 | |||
| - | Orbcomm | 4800bps SDPSK 20W Kanal S-1 | ||
| 28650 | VUsat / VO-52 / Hamsat | TRK, TLM Seitenbänder auf ±25,5kHz, ±51kHz | 18.03.15 gehört | |
| 137.215 | 746 | Elektron-1 | 11.12.13 gehört | |
| 137.220 | 12968 | Bhaskara-2 | ||
|
137.225 (137.175 - 137.275) |
25399 |
SAFIR-R02 (Satellite for Information Relay) |
300/600/1200/2400/4800bps BPSK (Manchester Code) | 05.10.05 gehört |
| - | Orbcomm | 4800bps SDPSK 20W Kanal S-2 | ||
| 137.230 | 6977 | Explorer-51 / AE-C | TLM 1W, Tracking Beacon 250mW | |
| 8353 | Explorer-54 / AE-D | TLM 1W, Tracking Beacon 250mW | ||
| 8440 | Explorer-55 / AE-E | TLM 1W, Tracking Beacon 250mW | ||
| 11392 | Bhaskara-1 | |||
| 12968 | Bhaskara-2 | |||
| 137.250 | - | Orbcomm | 4800bps SDPSK 20W Kanal S-3 | |

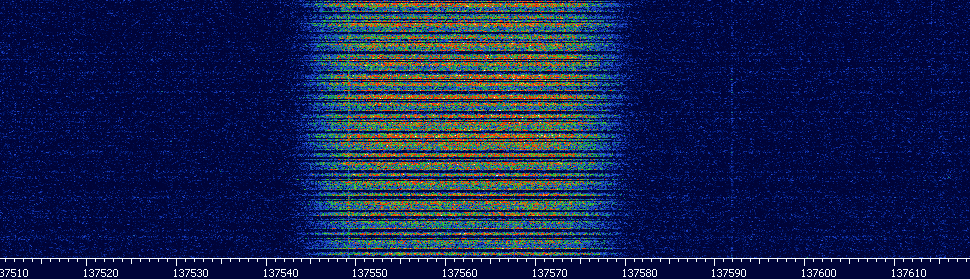

| - | OG2 (Orbcomm Generation 2) | (simultaner Downlink auf 137.315) | ||
| 137.260 (137.250) | 6315 | Aeros-1 | TLM 1,5W, Tracking Beacon 150mW | |
| 137.280 | 15331 | Kosmos-1602 / Okean OE-2 | ||
| 137.2875 | - | Orbcomm | 4800bps SDPSK 20W Kanal S-11 | |
| 137.290 | 3307 | Explorer-38 / RAE-A | 1,5W | |
| 7371 | Aeros-2 | TLM 1,5W, Tracking Beacon 150mW | ||
| 137.300 | 8519 | Meteor 1-23 | APT 5W | |
| 9661 | Meteor 2-2 | |||
| 10514 | Meteor 2-3 | |||
| 11251 | Meteor 1-29 | |||
| 11288 | Meteor 2-4 | |||
| 11605 | Meteor 2-5 | |||
| 11962 | Meteor 2-6 | |||
| 12456 | Meteor 2-7 | |||
| 13113 | Meteor 2-8 | |||
| 13718 | Meteor 2-9 | |||
| 15099 | Meteor 2-11 | |||
| 16735 | Meteor 2-14 | |||
| 18820 | Meteor 2-17 | |||
| 19851 | Meteor 2-18 | |||
| 21232 | Meteor 3-4 | |||
| 21655 | Meteor 3-5 | 15.11.02 gehört | ||
| 12968 | Bhaskara-2 | |||
| 137.3125 | - | Orbcomm | 4800bps SDPSK 20W Kanal S-12 | |
| 137.315 | - | OG2 (Orbcomm Generation 2) | (simultaner Downlink auf 137.250) | |
| 137.330 | 15331 | Kosmos-1602 / Okean OE-2 | ||
| 137.350 | 2608 | ATS-1 | TLM | |
| 2743 | ATS-2 | TLM 2,1W | ||
| 3029 | ATS-3 | TLM 1,6W | ||
| 3344 | ATS-4 | TLM 2W | ||
| 4068 | ATS-5 | TLM 2W | ||
| 25338 | NOAA-15 / NOAA-K |
DSB (Direct Sounder Broadcast) TRK, TLM Seitenbänder auf ±8kHz 8320bps PSK Split-Phase/PM 1W |
19.08.14 gehört | |
| 26536 | NOAA-16 / NOAA-L | |||
| 27453 | NOAA-17 / NOAA-M | |||
| 28654 | NOAA-18 / NOAA-N | 19.08.14 gehört | ||
| 33591 | NOAA-19 / NOAA-N2 | |||
| 29157 | COMPASS-2 | TRK, TLM Seitenbänder auf ±65kHz, ±130kHz 64kBit/s PCM-FM 8W | 11.04.07 gehört | |
| 137.380 (137.383) | 4256 | Timation-2 | TRK, Seitenbänder auf ±10kHz | 06.05.15 gehört |
| 12968 | Bhaskara-2 | |||
| 137.3975 | - | Orbcomm | 4800bps SDPSK 20W | |
| 137.400 | 6920 | NOAA-3 / ITOS-F | TLM, Tracking Beacon 250mW | |
| 11266 | Kosmos-1076 | |||
| 11671 | Kosmos-1151 | |||
| 11962 | Meteor 2-6 | APT 5W | ||
| 12456 | Meteor 2-7 | APT 5W | ||
| 14002 | Rohini-3 | |||
| 14372 | Kosmos-1500 | |||
| 14452 | Meteor 2-10 | APT 5W | ||
| 15331 | Kosmos-1602 | |||
| 15516 | Meteor 2-12 | APT 5W | ||
| 16191 | Meteor 3-1 | |||
| 16408 | Meteor 2-13 | |||
| 16881 | Kosmos 1766 / Okean O1-1 | |||
| 17290 | Meteor 2-15 | |||
| 18214 | Kosmos 1869 / Okean O1-2 | |||
| 18312 | Meteor 2-16 | |||
| 18820 | Meteor 2-17 | |||
| 19274 | Okean O1-3 | |||
| 20510 | Okean O1-5 | |||
| 20670 | Meteor 2-19 | |||
| 21397 | Okean O1-6 | |||
| 22782 | Meteor 2-21 | |||
| 23317 | Okean O1-7 | |||
| 23657 | Sich-1 | |||
| 25394 | Resurs O1-N4 | |||
| 28505 | Sich-1M | 04.03.05 gehört | ||
| 34808 | ANUSAT | Tracking Beacon, TLM Seitenbänder auf ±25kHz, ±51kHz 512bps PSK-PM 500mW / 4W | 11.04.11 gehört | |
| 137.410 (137.440) | 1738 | Solrad-8 / Explorer-30 / SE-1 | 1W | |
| 4237 | Poppy-6B | Tracking Beacon | ||
| 137.420 | 11899 | Rohini-1B | ||
| 12491 | Rohini-2 | |||
| 7213 | Miranda / X-4 | |||
| 7752 | Aryabhata (erste indische Satellit) | 256bps PCM-FM/PM 1,2W | ||
| 8748 | Solrad-11A | TLM 5W | ||
| - | Orbcomm | 4800bps SDPSK 20W Kanal S-4 | ||
| 137.445 | 20281 | Magion-2 | ||
| 137.450 | 2608 | ATS-1 | 2,1W | |
| 11251 | Meteor 1-29 | |||
| 11605 | Meteor 2-5 | |||
| 14207 | Kosmos-1484 (Resurs OE-1) | |||
| 20261 | Interkosmos-24 | |||
| 137.460 | - | Orbcomm | 4800bps SDPSK 20W Kanal S-5 | |
| 137.500 | 2091 | ESSA-2 / OT-2 | APT 5W | |
| 2657 | ESSA-4 / TOS-B | APT 5W | ||
| 3035 | ESSA-6 / TOS-D | APT 5W | ||
| 4320 | ITOS-1 / TIROS-M | APT 5W | ||
| 4345 | DIAL-MIKA / P068 | Tracking Beacon | ||
| 4793 | NOAA-1 / ITOS-A | APT 5W | ||
| 6235 | NOAA-2 / ITOS-D | APT 5W | ||
| 6920 | NOAA-3 / ITOS-F | APT 5W | ||
| 7529 | NOAA-4 / ITOS-G | APT 5W | ||
| 9057 | NOAA-5 / ITOS-H | APT 5W | ||
| 11060 | TIROS-N | APT 5W stiller Träger im Zyklus 5s aktiv -> 2s Pause in der Trägerwelle einen Impuls gehört |
03.01.07 gehört 05.12.13 gehört |
|
| 11416 | NOAA-6 / NOAA-A | APT 5W | ||
| 12553 | NOAA-7 / NOAA-C | APT 5W | ||
| 13923 | NOAA-8 / NOAA-E | APT 5W | ||
| (137.505) | 15427 | NOAA-9 |
frequenzmodulierte Trägerfrequenz im Zyklus 25s aktiv -> 25s Pause [funktioniert nur noch im Sonnenlicht] |
15.08.10 gehört |
| 16969 | NOAA-10 / NOAA-G | APT 5W | ||
| 19531 | NOAA-11 / NOAA-H | APT 5W | ||
| 21263 | NOAA-12 / NOAA-D | APT 5W | 03.01.07 gehört | |
| 22078 | S80/T | Messages-System | ||
| 22739 | NOAA-13 / NOAA-I | APT 5W | ||
| 23455 | NOAA-14 / NOAA-J | APT 5W | ||
| 25338 | NOAA-15 / NOAA-K | APT 5W | 13.08.10 gehört | |
| 26536 | NOAA-16 / NOAA-L | APT 5W | ||
| 27453 | NOAA-17 / NOAA-M | APT 5W | 07.03.13 gehört | |
| 137.530 | 7910 | SRET-2 / MAS-2 | TLM, Tracking Beacon 250mW | |
| 137.560 | 5580 | Prospero / Black Arrow | 2048bps PCM/PM 300 oder 350mW | |
| 11382 | Ariel-6 / UK-6 | |||
| - | Orbcomm | 57,6kBit/s OQPSK BW:50kHz, aller 900ms ein Durchgang von 100ms zur Kontrollstation 5W | ||
| 137.590 | 3141 | Solrad-9 / Explorer-37 / SE-2 | 150mW | |
| 137.620 | 3615 | ESSA-8 / TOS-F | APT 5W | |
| 4793 | NOAA-1 / ITOS-A | APT 5W | ||
| 6235 | NOAA-2 / ITOS-D | APT 5W | ||
| 6920 | NOAA-3 / ITOS-F | APT 5W | ||
| 7529 | NOAA-4 / ITOS-G | APT 5W | ||
| 9057 | NOAA-5 / ITOS-H | APT 5W | ||
| 11060 | TIROS-N | APT 5W | ||
| 11416 | NOAA-6 / NOAA-A | APT 5W | ||
| 12553 | NOAA-7 / NOAA-C | APT 5W | ||
| 13736 | DMSP F6 | |||
| 13923 | NOAA-8 / NOAA-E | APT 5W | ||
| 15427 | NOAA-9 / NOAA-F | APT 5W | ||
| 16969 | NOAA-10 / NOAA-G | APT 5W | ||
| 19531 | NOAA-11 / NOAA-H | APT 5W | ||
| 21263 | NOAA-12 / NOAA-D | APT 5W | ||
| 21798 | DMSP F11 / USA 73 | |||
| 22739 | NOAA-13 / NOAA-I | APT 5W | ||
| 23455 | NOAA-14 / NOAA-J | APT 5W | 30.07.05 gehört | |
| 25338 | NOAA-15 / NOAA-K | APT 5W | 27.11.15 gehört | |
| 26536 | NOAA-16 / NOAA-L | APT 5W | ||
| 27453 | NOAA-17 / NOAA-M | APT 5W | 12.08.10 gehört | |
| 137.6275 | - | Orbcomm | 4800bps SDPSK 20W | |
| 137.6625 | - | Orbcomm | 4800bps SDPSK 20W Kanal S-6 | |
| 137.676 | 8860 | Wideband / P76-5 | Beacon Experiment 600mW | |
| 14154 | HiLat (High Latitude Reseach Satellite) / P83-1 | Beacon Experiment | ||
| 17070 | Polar BEAR (Beacon Experiment and Auroral Research) / P87-1 | Beacon Experiment | ||
| 137.6775 | - | Orbcomm | 4800bps SDPSK 20W Kanal S-7 | |
| 137.680 | 7471 | Ariel-5 / UK-5 | TLM, Tracking Beacon 80mW | |
| 137.6875 | - | Orbcomm | 4800bps SDPSK 20W | |
| 137.7075 | - | Orbcomm | 4800bps SDPSK 20W | |
| 137.710 | 5317 | Solrad-10 / Explorer-44 / SE-3 | TLM, Tracking 250mW | |
| 137.7125 | - | Orbcomm | 4800bps SDPSK 20W Kanal S-8 | |
| 137.720 | 22783 |
Temisat (Telespazio Micro Satellite) |
||
| 137.7375 | - | Orbcomm | 4800bps SDPSK 20W Kanal S-9 | |
| 137.740 | 2828 | Poppy-5B / GGSE-4 / Gravity Gradient-4 | ||
| 5879 | TD-1A | TLM 5W | ||
| 23099 | SROSS-C2 | |||
| 137.770 | 11060 | TIROS-N |
stiller Träger im Zyklus 5s aktiv -> 2s Pause mit durchgehenden Träger [funktioniert nur noch im Sonnenlicht] |
09.08.10 gehört 18.03.15 gehört |
| 11416 | NOAA-6 / NOAA-A |
DSB (Direct Sounder Broadcast) TRK, TLM Seitenbänder auf ±8kHz 8320bps PSK Split-Phase/PM 1W |
||
| 12553 | NOAA-7 / NOAA-C | |||
| 13923 | NOAA-8 / NOAA-E | |||
| 15427 | NOAA-9 / NOAA-F | |||
| 16969 | NOAA-10 / NOAA-G | |||
| 19531 | NOAA-11 / NOAA-H | |||
| 21263 | NOAA-12 / NOAA-D | |||
| 22739 | NOAA-13 / NOAA-I | |||
| 23455 | NOAA-14 / NOAA-J | 30.07.05 gehört | ||
| 25338 | NOAA-15 / NOAA-K | |||
| 26536 | NOAA-16 / NOAA-L | 05.03.13 gehört | ||
| 27453 | NOAA-17 / NOAA-M | 12.08.10 gehört | ||
| 28654 | NOAA-18 / NOAA-N | 20.05.05 gehört | ||
| 33591 | NOAA-19 / NOAA-N2 | 07.03.13 gehört | ||
| 137.795 | 19467 | Feng Yun-1A | APT | |
| 20788 | Feng Yun-1B | APT | ||
| 137.800 | - | Orbcomm | 4800bps SDPSK 20W Kanal S-10 | |
| 137.820 | 4132 | SOICAL Cone / S69-4 | ||
| 137.850 | 11082 | Interkosmos-18 | ||
| 11285 | Interkosmos-19 | |||
| 13113 | Meteor 2-8 | APT 5W | ||
| 15099 | Meteor 2-11 | APT 5W | ||
| 16191 | Meteor 3-1 | APT 5W | ||
| 16735 | Meteor 2-14 | APT 5W | ||
| 17241 | Kosmos-1809 | |||
| 17290 | Meteor 2-15 | APT 5W | ||
| 18312 | Meteor 2-16 | APT 5W | ||
| 18820 | Meteor 2-17 | APT 5W | ||
| 19336 | Meteor 3-2 | APT 5W | ||
| 19851 | Meteor 2-18 | APT 5W | ||
| 20305 | Meteor 3-3 | APT 5W | ||
| 20670 | Meteor 2-19 | APT 5W | ||
| 20826 | Meteor 2-20 | APT 5W | ||
| 22782 | Meteor 2-21 | APT 5W | ||
| 21655 | Meteor 3-5 | APT 5W | ||
| 21835 | Magion-3 | |||
| 22969 | Meteor 3-6 | APT 5W | ||
| 25394 | Resurs O1-N4 | APT 5W | ||
| 26873 | Coronas-F | 65,5kBit/s PSK/FSK (Backup für 1.7GHz) | ||
| 137.860 | 6126 | Landsat-1 / ERTS-1 | TLM 2W, Tracking Beacon 300mW | |
| 7615 | Landsat-2 / ERTS-2 | TLM 2W, Tracking Beacon 300mW | ||
| 10702 | Landsat-3 | TLM 2W, Tracking Beacon 300mW | ||
| 13367 | Landsat-4 | TLM 2W, Tracking Beacon 300mW | ||
| 137.890 | 4692 | RMS | TLM 2W | |
| 7427 | ANS-1 | TLM 2W, Tracking Beacon 250mW | ||
| 137.900 | 15666 | NUSat | ||
| 35865 | Meteor M1 | LRPT 72/80kBit/s QPSK/OQPSK BW:100kHz, 4W | ||
| 40069 | Meteor M2 | 19.07.19 gehört | ||
| 44387 | Meteor M2-N2 | 21.07.19 gehört | ||
| 137.905 | 26546 | MegSat-1 | 1200bps PCM/PM | 13.08.10 gehört |
| 137.9125 | 28654 | NOAA-18 / NOAA-N | APT 5W | 30.11.15 gehört |
| 29499 | MetOp-A | LRPT Auflösung 1,09km, 72kBit/s QPSK, BW:100kHz (Backup Frequenz) | ||
| 33591 | NOAA-19 / NOAA-N2 | APT 5W | 10.02.09 gehört | |
| 137.920 | 6197 | Explorer-47 / IMP-7 | TLM 12W | |
| 20546 | Pegsat | |||
| 43139 | SpaceBEE-4 | 5,47kBit/s 125kHz BW 200mW | ||
| 43140 | SpaceBEE-3 | |||
| 43141 | SpaceBEE-2 | |||
| 43142 | SpaceBEE-1 | |||
| 137.930 | 25722 | MegSat-0 | 1200bps PCM/PM | 10.07.03 gehört |
| 137.950 | 3669 | ISIS-1 | Tracking Beacon 60mW | |
| 5104 | ISIS-2 | |||
| 23547 | Microlab-1 / OrbView-1 | |||
| 24291 | Microsat / MuSat-1 | Morse-Kode "HI HI DE MUSAT" | ||
| 137.955 | 23607 | UPMsat / UPM-LBSat | ||
| 137.9622 | 24645 | HETE (High-Energy Transient Experiment) | Sekundär Downlink in CPFSK | |
| 26561 | HETE-2 | |||
| 137.980 | 2834 | Poppy-5D / GGSE-5 / Gravity Gradient-5 | ||
| 6893 | Explorer-50 / IMP-8 | TLM 32kBit/s 12W | ||
|
|
||||
| 143.075 | 21577 | TUBSAT-A | 1200bps FFSK ASCII 2W im Zyklus 8s aktiv -> 4½min Pause | 16.11.06 gehört |
| 22970 | TUBSAT-B | |||
| 25389 | TUBSAT-N | |||
| 25390 | TUBSAT-N1 | |||
| 25757 | DLR-TUBSAT | |||
| 143.625 | 27003 | BADR-2 (B) | 1200bps FSK | |
|
|
||||
| 144.028 | 20685 | BADR-1 (erster pakistanischer Satellit) | 150/300/600/1200bps FSK, 32 Telemetrie Kanäle | |
| 144.050 | 4320 | AO-5 | Beacon PMW 50mW | |
| 144.100 | 27004 | TUBSAT-C (MAROC) | Morse-Kode, 1200/2400bps FFSK ASCII 3,5W | |
| 144.200 | 41170 | Galassia | Ionospheric Beacon | |
|
144.3-144.5 MHz 2-m AFu Satellitenband (IARU Region 2&3 / OSCAR Sub-Band) |
||||
| 144.390 | 26931 | NO-44 / PCSat | 1200bps AFSK AX.25 APRS-Digipeater und TLM 3W | 08.01.07 gehört |
| 40908 | LilacSat -2 / CAS-3H | 1200bps AFSK AX.25 APRS-Digipeater | ||
| 42983 | QIKcom-1 / SIMPL / HISat | 1200bps AFSK AX.25 APRS-Digipeater | ||
|
|
||||
| 144.983 | 214 | Oscar-1 | Morse-Kode "HI" 100mW | |
| 305 | Oscar-2 | Morse-Kode "HI" 100mW | ||
|
|
||||
| 145.000 | 41170 | Galassia | Ionospheric Beacon | |
|
|
||||
| 145.475 | 40912 | DCBB / CAS-3G | 9600bps GMSK | 23.09.15 gehört |
| 145.640 | 40903 | XW-2A (Xi Wang-2A) / CAS-3A | 9600/19200bps GMSK 100mW | 23.09.15 gehört |
| 145.660 | Morse-Kode 22wpm 50mW | 23.09.15 gehört | ||
| 145.665 - 145.685 | Lineartransponder 100mW | |||
| 145.705 | 40911 | XW-2B (Xi Wang-2B) / CAS-3B | 9600/19200bps GMSK 100mW | 23.09.15 gehört |
| 145.725 | Morse-Kode 22wpm 50mW | 23.09.15 gehört | ||
| 145.730 - 145.750 | Lineartransponder 100mW | |||

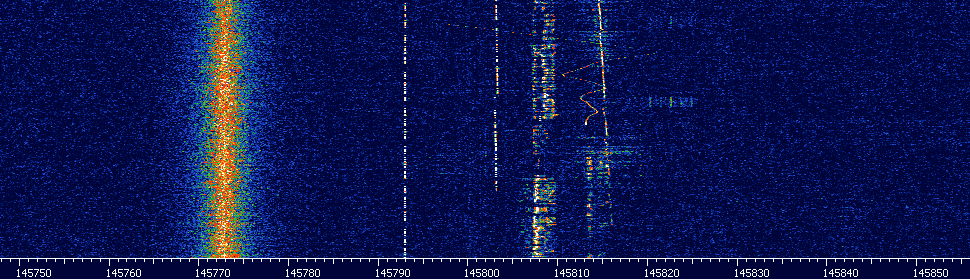

| 145.770 | 40906 | XW-2C (Xi Wang-2C) / CAS-3C | 9600/19200bps GMSK 100mW | 15.04.16 gehört |
| 145.790 | Morse-Kode 22wpm 50mW | 15.04.16 gehört | ||
| 145.795 - 145.815 | Lineartransponder 100mW | 15.04.16 gehört | ||
|
145.80-146.00 MHz 2-m AFu Satellitenband |
||||
| 145.800 | 21087 | AO-21 / RS-14 / Informator | 1200bps BPSK AX.25 | |
| 41170 | Galassia | Ionospheric Beacon | ||
| 145.805 - 145.955 | 26609 | AO-40 / Phase-3D | Lineartransponder | |
| 145.810 | 14129 | AO-10 / Phase-3B | Tracking Beacon 2W | |
| 145.812 | 19216 | AO-13 / Phase-3C | Tracking Beacon | |
| 145.8125 | 25533 | RS-18 / Sputnik-41 | Innentemperatur als Funktion über das NF-Signal und 6 digitalisierte Sprachbotschaften 150mW | |
| 145.8142 | 40025 | EO-79 / QB50p1 / FUNcube-3 | Morse-Kode 15wpm, 1200bps BPSK AX.25 | 17.02.17 gehört |
| 145.815 | 25685 | RS-19 / Sputnik-42 | 10 digitalisierte Sprachbotschaften mit 7s Pause (Wurde wegen einer nicht genehmigten Werbeaktion von der Firma Swatch nicht zum senden freigegeben.) 200mW | |
| 145.818 | 39427 | Triton-1 | 9600bps RC-BPSK | 29.11.13 gehört |
| 145.820 | 24958 | RS-17 / Sputnik-40 | Innentemperatur als Funktion über das NF-Signal 250mW | 27.12.97 gehört |
| 27394 | RS-21 / Kolibri-2000 | Morse-Kode, Datenpakete | ||
| 145.822 | 21087 | AO-21 / RS-14 / Informator | Morse-Kode | |
| 145.825 | 12888 | UO-9 / UoSat-1 | 1200bps AFSK Bell-202 ASCII 7Bit 350mW | |
| 14781 | UO-11 / UoSat-2 | 1200bps AFSK Bell-202 ASCII 7Bit 400mW im Zyklus 10,3d aktiv -> 10,4d Pause | 26.07.15 gehört | |
| 20440 | DO-17 / Dove | 1200bps AFSK AX.25 2-4W | 25.01.98 gehört | |
| 20685 | BADR-1 (erster pakistanischer Satellit) | 150/300/600/1200bps FSK, 32 Telemetrie Kanäle, FM 2400Hz Audioton | ||
| 25636 | SO-35 / Sunsat | FM-Phonie-Transponder, Parrot-Transponder (Papagei) 5W | ||
| 26929 | SO-43 / Starshine-3 | 9600bps FSK AX.25 Output der Solarzellen im 2min Intervall 1,25W | ||
| 26931 | NO-44 / PCSat | 1200bps AFSK AX.25, 9600bps FSK AX.25 3W, APRS-Digipeater und Telemetrie | 31.01.16 gehört | |
| 27605 | AO-49 / SAFIR-M / RUBIN-2 | 9600bps FSK AX.25 aller 60s 2W | 05.01.03 gehört | |
| 25544 | PCSat-2 / ISS | 1200bps AFSK, 9600bps FSK AX.25 2W | 28.03.06 gehört | |
| 29661 | NO-60
/ RAFT-1 (RAdar Fence Transponder) |
1200bps AFSK AX.25, PSK-31 im 60s Intervall | 07.03.07 gehört | |
| 29664 | NO-61 / ANDE-1 (Atmospheric Neutral Drag Experiment) | 1200bps AFSK AX.25 mit APRS-Digipeater 2W | 21.12.07 gehört | |
| 29712 | PO-63 / PehuenSat-1 | 1200bps AFSK AX.25, 3 digitalisierte Sprachbotschaften | ||
| 35693 | ANDE-2 / Castor ANDE-2 / Pollux | 1200bps AFSK AX.25, 9600bps FSK FX.25 1W | 31.07.09 gehört | |
| 37380 | FO-70 / FASTRAC 2 "Emma" / USA 228 | 1200bps AFSK AX.25 im 3min Intervall | ||
| 39143 | Dove-1 | 1200bps AFSK AX.25 1W | ||
| 39382 | LO-75 / CAPE-2 | |||
| 40021 | Duchifat-1 | 1200bps AFSK AX.25 APRS-Digipeater | ||

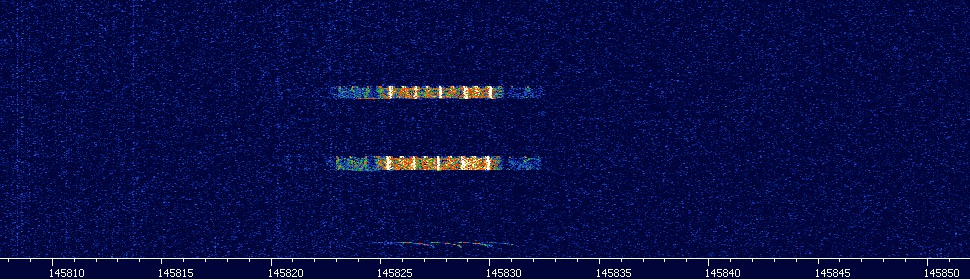

| 40654 | NO-84 / PSat (ParkinsonSat) | 1200bps AFSK AX.25 APRS-Digipeater | 01.02.16 gehört | |
| 40931 | IO-86 / LAPAN-A2 | 1200bps AFSK AX.25 APRS-Digipeater 5W | ||
| 42983 | QIKcom-1 / SIMPL / HISat | 1200bps AFSK AX.25 APRS-Digipeater 4W | ||
| 43589 | BIRD-MY / UiTMSat-1 | 1200bps AFSK AX.25 APRS-Digipeater | ||
| 43590 | BIRD-PH / MAYA-1 | 1200bps AFSK AX.25 APRS-Digipeater | ||
| 43591 | BIRD-BT / BHUTAN-1 | 1200bps AFSK AX.25 APRS-Digipeater | ||
| 145.825 - 145.975 | 14129 | AO-10 / Phase-3B | Lineartransponder 50W | |
| 19216 | AO-13 / Phase-3C | |||
| 145.828 (145.818) | 27560 | RS-20 / Moshaez-3 | Morse-Kode, Datenpakete 2W | |
| 145.835 | 39092 | UniBRITE / CanX 3A | Morse-Kode | |
| 40907 | XW-2D (Xi Wang-2D) / CAS-3D | 9600/19200bps GMSK 100mW | 23.09.15 gehört | |
| 42730 | SUSat / QB50 AU01 | Morse-Kode, 9600bps GMSK oder BPSK (Backup für 70-cm) | ||
| 42761 | Zhuhai-1 01 / OVS-1A / CAS-4A | 4800bps GMSK AX.25 | 25.02.18 gehört | |
| 145.838 | 21087 | AO-21 / RS-14 / Informator | 1200bps BPSK AX.25 | |
| 27422 | BO-47
/ IDEFIX CU-1 (befindet sich an einer Ariane 42P Oberstufe) |
400bps BPSK, 18 digitalisierte Sprachbotschaften 120mW | ||
| 145.840 | 27939 | RS-22 / Moshaez-4 | Morse-Kode, Datenpakete | |
| 39442 | PUCP-Sat-1 | 1200bps AFSK | ||
| 40032 | EO-80 / QB50p2 | 9600bps FSK FX25 | ||
| 2018-099 | JO-97 / JY1Sat / FUNcube-6 | 1200bps BPSK | ||
| 145.845 | 40074 | UKube-1 / FUNcube-2 | Morse-Kode, 1200/9600bps BPSK | 17.02.17 gehört |
| 145.850 | 1293 | Oscar-3 | Morse-Kode 25mW | |
| 39570 | LitSat-1 | AX.25 | ||
| 2018-084 | Proiteres-2 | Morse-Kode, 1200bps AFSK | ||
| 145.852 - 145.932 | 21087 | AO-21 / RS-14 / Informator | Lineartransponder 10W | |
| 145.855 | 40907 | XW-2D (Xi Wang-2D) / CAS-3D | Morse-Kode 22wpm 50mW | 23.09.15 gehört |
| 42761 | Zhuhai-1 01 / OVS-1A / CAS-4A | Morse-Kode | 25.02.18 gehört | |
| 145.855 - 145.875 | 2018-099 | JO-97 / JY1Sat / FUNcube-6 | Lineartransponder | |
| 145.857 | 18129 | RS-10 / Kosmos-1861 | Morse-Kode | |
| 145.860 | 28650 | VO-52 / VUsat / Hamsat | Dutch Beacon Morse-Kode 12wpm ~20mW | 26.04.12 gehört |
| 39427 | Triton-1 | 9600bps RC-BPSK | ||
| 42778 | Max Valier Sat | 9600bps GMSK AX.25 5W | ||
| 2018-099 | ITASAT-1 | 1200bps BPSK AX.25 | ||
| 145.860 - 145.880 | 40907 | XW-2D (Xi Wang-2D) / CAS-3D | Lineartransponder 100mW | |
| 42761 | Zhuhai-1 01 / OVS-1A / CAS-4A | Lineartransponder Invertiert | 25.02.18 gehört | |
| 145.860 - 145.900 | 18129 | RS-10 / Kosmos-1861 | Lineartransponder | |
| 21089 | RS-13 / Kosmos-2123 | Lineartransponder | 27.07.02 gehört | |
| 145.8622 | 21089 | RS-13 / Kosmos-2123 | Morse-Kode | 27.07.02 gehört |
| 145.862 (145.865) | 40024 | NanoSatC-BR1 | 1200/9600bps BPSK | 20.08.14 gehört |
| 145.868 - 145.948 | 21087 | AO-21 / RS-14 / Informator | Lineartransponder 10W | |
| 145.870 | 32789 | DO-64 / Delfi-C3 | Morse-Kode 40mW, 1200bps BPSK AX.25 400mW [funktioniert nur im Sonnenlicht] | 26.07.15 gehört |
| 39383 | DragonSat-1 | 9600bps FSK AX.25 | ||
| 39428 | Delfi-n3Xt | Morse-Kode, 2400bps BPSK AX.25 200mW | ||
| 41466 | SamSat-218/D | Morse-Kode | ||
| 145.870 - 145.930 | 28650 | VO-52 / VUsat / Hamsat | Indian Lineartransponder 1W | |
| 145.875 - 145.925 | 1293 | Oscar-3 | Lineartransponder 800mW | |
| 28650 | VO-52 / VUsat / Hamsat | Dutch Lineartransponder 1W | 26.04.12 gehört | |
| 145.880 | 40032 | EO-80 / QB50p2 | Morse-Kode 15wpm, 1200bps BPSK AX.25 | 10.12.14 gehört |
| 43137 | AO-92 / Fox-1D | FM-Phonie-Transponder + DUV (Data Under Voice) 200bps FSK unterhalb von 200Hz (Slow Speed TLM), 9600bps FSK (High Speed TLM) | 25.02.18 gehört | |
| 145.880 - 145.920 | 32789 | DO-64 / Delfi-C3 | Lineartransponder 400mW [funktioniert nur im Sonnenlicht] | |
| 39428 | Delfi-n3Xt | Lineartransponder 200mW | ||
| 145.890 | 32790 | CanX-2 | Morse-Kode 15wpm | |
| 39091 | TUGsat-1 / BRITE-Austria / CanX-3B | Beacon 100mW | ||
| 39431 | BRITE-PL1 / CanX-3C | Beacon 100mW | ||
| 40020 | BRITE-CA1 / BRITE-Toronto / CanX 3E | Beacon 100mW | ||
| 40119 | BRITE-PL2 / CanX-3D | Beacon 100mW | ||
| 40909 | XW-2E (Xi Wang-2E) / CAS-3E | 9600bps GMSK 100mW | 23.09.15 gehört | |
| 42759 | Zhuhai-1 02 / OVS-1B / CAS-4B | 4800bps GMSK AX.25 | 25.02.18 gehört | |
| 2018-073 | RSP-00 | Morse-Kode, 1200bps AFSK, 38400bps pi/4QPSK | ||
| 145.895 | 2018-099 | ESEO / FUNcube 4 | FM-Phonie-Transponder, 1200/4800bps BPSK | |
| 145.898 | 26609 | AO-40 / Phase-3D | Ingenieur Beacon 400bps BPSK | |
| 145.900 | 41557 | LO-87 / NuSat-1 | Morse-Kode 70mW | |
| 43678 | Diwata-2B | Morse-Kode 120WPM, FM-Phonie-Transponder, 1200bps AFSK AX.25 APRS-Digipeater 800mW | ||
| 2018-099 | VO-96 / ExseedSat-1 | FM-Phonie-Transponder, 45.45bd RTTY | ||
| 145.900 - 145.930 | 38083 | PW-Sat | Lineartransponder | |
| 145.903 | 18129 | RS-10 / Kosmos-1861 | Morse-Kode | |
| 145.907 | 18129 | RS-11 / Kosmos-1861 | Morse-Kode | |
| 145.9083 | 21089 | RS-13 / Kosmos-2123 | Morse-Kode | |
| 145.910 | 40909 | XW-2E (Xi Wang-2E) / CAS-3E | Morse-Kode 22wpm 50mW | 23.09.15 gehört |
| 42759 | Zhuhai-1 02 / OVS-1B / CAS-4B | Morse-Kode | 25.02.18 gehört | |
| 145.910 - 145.950 | 18129 | RS-11 / Kosmos-1861 | Lineartransponder | |
| 21089 | RS-12 / Kosmos-2123 | Lineartransponder | ||
| 145.9125 | 21089 | RS-12 / Kosmos-2123 | Morse-Kode | |
| 145.915 | 40074 | UKube-1 / FUNcube-2 | 1200bps BPSK | 17.02.17 gehört |
| 145.915 - 145.935 | 40909 | XW-2E (Xi Wang-2E) / CAS-3E | Lineartransponder 100mW | 23.09.15 gehört |
| 42759 | Zhuhai-1 02 / OVS-1B / CAS-4B | Lineartransponder Invertiert | 25.02.18 gehört | |
| 145.919 | 37772 | ARISSat-1 / RadioSkaf-V | Morse-Kode Beacon-2 RS01S 25mW (aktiv bei TLM in 1000bps BPSK1000) | 03.01.12 gehört |
| 145.920 | 37772 | ARISSat-1 / RadioSkaf-V | 400bps BPSK400, 1000bps BPSK1000 100mW | 03.01.12 gehört |
| 2018-099 | AO-95 / Fox-1C / Cliff | FM-Phonie-Transponder, 9600bps FSK 600mW | ||
| 145.922 - 145.938 | 37772 | ARISSat-1 / RadioSkaf-V | Lineartransponder 125mW | |
| 145.925 - 145.975 | 7530 | AO-7 | Lineartransponder 2,5/8W | 08.02.16 gehört |
| 145.930 | 32789 | DO-64 / Delfi-C3 | 1200bps BPSK AX.25 400mW (Backup-Downlink)[funktioniert nur im Sonnenlicht] | 19.05.08 gehört |
| 39428 | Delfi-n3Xt | 1200bps AFSK | ||
| 39438 | VELOX-P2 | Morse-Kode | 10.02.17 gehört | |
| 41171 | VELOX-2 | 1200bps BPSK | ||
| 145.930 - 145.950 | 40074 | UKube-1 / FUNcube-2 | Lineartransponder 400mW | 17.02.17 gehört |
| 145.935 | 39444 | AO-73 / FUNcube-1 | 1200bps BPSK 300mW (bei aktiven TPX nur 30mW) TPX Abschaltung | 25.02.18 gehört |
|
145.935 - 145.965 (145.946 - 145.971) |
40025 | EO-79 / QB50p1 / FUNcube-3 |
Lineartransponder 400mW (wird 27min nach Erdschattenaustritt aktiviert, danach für 25min aktiv) |
04.02.17 gehört |
| 41557 | LO-87 / NuSat-1 | Lineartransponder 250mW | ||
| 145.936 | 28650 | VO-52 / VUsat / Hamsat | Indian Beacon, digitalisierte Sprachbotschaften | |
| 145.939 | 37772 | ARISSat-1 / RadioSkaf-V | Morse-Kode Beacon-1 RS01S 25mW (aktiv bei TLM in 400bps BPSK400) | |
| 145.940 | 38082 | XaTcobeo | SSR Downlink | |
| 42017 | EO-88 / Nayif-1 / FUNcube-5 | 1200bps BPSK 50mW | 05.03.17 gehört | |
| 145.947 | 39432 | ICube-1 | 1200bps BPSK | |
| 145.948 | 21087 | AO-21 / RS-14 / Informator | Morse-Kode 250mW | |
| 145.950 | 1293 | Oscar-3 | Tracking Beacon 25mW | |
| 37772 | ARISSat-1 / RadioSkaf-V | FM-Downlink mit 25 digitalisierte Sprachbotschaften in 15 Sprachen, gesprochene Telemetriewerte und SSTV-Bilder in Robot36 250mW |
11.02.11 gehört (von Bord der ISS) 03.01.12 gehört |
|
| 41458 | OUFTI-1 | 9600bps FSK AX.25, D-STAR (4,8kBit/s GMSK) | ||
| 2018-099 | MOVE-II | Morse-Kode "DP0MVE" im 30s Intervall, 12500bps BPSK im 60s Intervall | ||
| 145.950 - 145.970 | 39444 | AO-73 / FUNcube-1 | Lineartransponder 300mW | 25.02.18 gehört |
| 145.952 | 21087 | AO-21 / RS-14 / Informator | 1200bps BPSK AX.25 3W | |
| 39570 | LitSat-1 | Lineartransponder | ||
| 43134 | SIGMA / KHUSat-3 | |||
| 145.953 | 18129 | RS-11 / Kosmos-1861 | Morse-Kode | |
| 145.955 | 21578 | SARA (Satellite Amateur de Radio-Astronomie) | 300bps AFSK ASCII 1W (2:48min pro Paket) | |
| 40910 | XW-2F (Xi Wang-2F) / CAS-3F | 9600bps GMSK 100mW | 02.10.15 gehört | |
| 145.955 - 145.990 | 26609 | AO-40 / Phase-3D | Lineartransponder | |
| 145.9587 | 21089 | RS-12 / Kosmos-2123 | Morse-Kode | |
| 145.960 | 42778 | Max Valier Sat | Morse-Kode 500mW | 25.02.18 gehört |
| 43017 | AO-91 / RadFxSat / Fox-1B |
FM-Phonie-Transponder + DUV (Data Under Voice) 200bps FSK unterhalb
von 200Hz (Slow
Speed TLM), 9600bps FSK (High Speed TLM) 400mW |
||
| 145.960 - 145.990 | 42017 | EO-88 / Nayif-1 / FUNcube-5 | Lineartransponder 500mW | |
| 145.970 | 41732 | 3CAT-2 | 9600bps BPSK | |
| 145.971 | 39439 | First-MOVE | Morse-Kode, 1200bps BPSK | 26.07.15 gehört |
| 145.975 | 22654 | AO-24 / Arsene | 1200bps AFSK AX.25 | |
| 40719 | DeOrbitSail | 1200bps BPSK AX.25 im 15s Intervall | 26.08.15 gehört | |
| 40910 | XW-2F (Xi Wang-2F) / CAS-3F | Morse-Kode 22wpm 50mW | 02.10.15 gehört | |
| 145.9775 (145.972) | 7530 | AO-7 | Morse-Kode 200mW | 18.07.02 gehört |
| 145.980 | 36799 | TIsat-1 | AFSK und PSK | |
| 38855 | F-1 | AFSK 1200bps AX.25 im 60s Intervall 1W | ||
| 39131 | OSSI-1 | Morse-Kode 12wpm | ||
| (145.985) | 39438 | VELOX-P2 | Morse-Kode, 1200bps BPSK | 29.11.13 gehört |
| 40021 | Duchifat-1 |
Morse-Kode 15wpm im 60s Intervall 1200bps BPSK AX.25, DSB Phonie |
||
| 40057 | VELOX-1 | Morse-Kode | 27.08.15 gehört | |
| DeepSpace | 4M-LXS (Manfred Memorial Moon Mission) | JT65B 1W | ||
| 40897 | Serpens | 9600bps GFSK AX.25 | ||
| (145.978) | 40967 | AO-85 / Fox-1A |
FM-Phonie-Transponder + DUV (Data Under Voice) 200bps FSK unterhalb
von 200Hz (Slow
Speed TLM), 9600bps FSK (High Speed TLM) 750mW |
31.10.17 gehört |
| 41458 | OUFTI-1 | Morse-Kode "HI HI DE E" | 05.05.16 gehört | |
| 41600 | SathyabamaSat (SB Sat) | 2400bps BPSK 200mW | ||
| 41783 | Pratham | Morse-Kode 35wpm 200mW | ||
| 145.980 - 146.000 | 40910 | XW-2F (Xi Wang-2F) / CAS-3F | Lineartransponder 100mW | 02.10.15 gehört |
| 145.983 | 21087 | AO-21 / RS-14 / Informator | RUDAK 3W | |
| 145.985 | 19216 | AO-13 / Phase-3C | Ingenieur Beacon Morse-Kode, RTTY, 400bps BPSK | |
| 145.987 | 14129 | AO-10 / Phase-3B | Ingenieur Beacon 400bps BPSK 4W | |
| 145.990 | 28933 | AO-54
/ SuitSat-1 / RadioSkaf-1 (ausgedienter Orlan-M Nr.14) |
6 digitalisierte Sprachbotschaften, gesprochene Telemetriewerte, SSTV im Robot-36 500mW (nach Problemen geschätzte 2mW) | |
|
|
||||
| 148.800 | 2018-104 | NMTSat | GMSK 2W | |
|
149.90-150.05 MHz Satellitenband für Navigation |
||||
| 149.910 | 15398 | Kosmos-1610 (Parus-Serie) | NRZ 50bps | |
| 16368 | Kosmos-1709 (Parus-Serie) | |||
| 20577 | Kosmos-2074 (Parus-Serie) | |||
| 21937 | Kosmos-2184 (Parus-Serie) | |||
| 23526 | Kosmos-2310 (Parus-Serie) | |||
| 24772 | Kosmos-2341 (Parus-Serie) | |||
| 27818 | Kosmos-2398 (Parus-Serie) | 02.02.08 gehört | ||
| 149.940 | 13033 | Kosmos-1333 (Parus-Serie) | NRZ 50bps | |
| 14546 | Kosmos-1513 (Parus-Serie) | |||
| 14679 | Kosmos-1535 (Parus-Serie) | |||
| 15292 | Kosmos-1598 (Parus-Serie) | |||
| 15597 | Kosmos-1634 (Parus-Serie) | |||
| 16291 | Kosmos-1704 (Parus-Serie) | |||
| 16798 | Kosmos-1759 (Parus-Serie) | |||
| 17239 | Kosmos-1808 (Parus-Serie) | |||
| 19826 | Kosmos-2004 (Parus-Serie) | |||
| 20527 | Kosmos-2061 (Parus-Serie) | |||
| 21666 | Kosmos-2154 (Parus-Serie) | |||
| 21875 | Kosmos-2180 (Parus-Serie) | |||
| 21979 | Kosmos-2190 (Parus-Serie) | |||
| 22207 | Kosmos-2218 (Parus-Serie) | |||
| 22875 | Kosmos-2265 (Parus-Serie) | |||
| 23092 | Kosmos-2279 (Parus-Serie) | |||
| 25892 | Kosmos-2366 (Parus-Serie) | |||
| 26818 | Kosmos-2378 (Parus-Serie) | 23.11.07 gehört | ||
| 35635 | Kosmos-2454 (Parus-Serie) | 19.09.11 gehört | ||
| 36519 | Kosmos-2463 (Parus-Serie) | 27.02.17 gehört | ||
| 149.970 | 2016 | D-1A / Diapason | Tracking Beacon 150mW | |
| 2674 | D1-C / Diademe-1 | |||
| 2680 | D1-D / Diademe-2 | |||
| 15359 | Kosmos-1605 (Parus-Serie) | NRZ 50bps | ||
| 15505 | Kosmos-1627 (Parus-Serie) | |||
| 16727 | Kosmos-1745 (Parus-Serie) | |||
| 17159 | Kosmos-1802 (Parus-Serie) | |||
| 20045 | Kosmos-2026 (Parus-Serie) | |||
| 20804 | Kosmos-2100 (Parus-Serie) | |||
| 21130 | Kosmos-2135 (Parus-Serie) | |||
| 21796 | Kosmos-2173 (Parus-Serie) | |||
| 22006 | Kosmos-2195 (Parus-Serie) | |||
| 22590 | Kosmos-2239 (Parus-Serie) | |||
| 22888 | Kosmos-2266 (Parus-Serie) | |||
| 23773 | Kosmos-2327 (Parus-Serie) | |||
| 24677 | Kosmos-2336 (Parus-Serie) | 09.01.03 gehört | ||
| 27436 | Kosmos-2389 (Parus-Serie) | 17.11.03 gehört | ||
| 28380 | Kosmos-2407 (Parus-Serie) | 27.02.17 gehört | ||
| 28521 | Kosmos-2414 (Parus-Serie) | 19.09.11 gehört | ||
| 149.978 | 18362 | Transit O-29 / NIMS-29 | 750mW | |
| 19071 | Transit O-32 / NIMS-32 | 1W | 23.12.06 gehört | |
| 19420 | Transit O-31 / NIMS-31 | 1W | 02.02.08 gehört | |
| 149.980 | 10457 | Transat | ||
| 149.988 | 6173 | TRIAD | 3W | |
| 8361 | TIP-2 (Transit Improvement Program) | 3W | ||
| 9403 | TIP-3 (Transit Improvement Program) | |||
| 12458 | NOVA-I | 3W | ||
| 14154 | HiLat / P83-1 | |||
| 15362 | NOVA-III | 3W | ||
| 17070 | Polar BEAR / P87-1 | 750mW | ||
| 18361 | Transit O-27 / NIMS-27 | 750mW | ||
| 19070 | Transit O-23 / NIMS-23 | 750mW | 10.08.10 gehört | |
| 19071 | Transit O-32 / NIMS-32 | 1W | 04.02.09 gehört | |
| 19223 | NOVA-II | 3W | ||
| 19419 | Transit O-25 / NIMS-25 | 750mW | 10.08.10 gehört | |
| 150.000 | 9637 | Kosmos-887 (Parus-Serie) | NRZ 50bps | |
| 10137 | Kosmos-926 (Parus-Serie) | |||
| 10776 | Kosmos-1000 (Parus-Serie) | |||
| 11326 | Kosmos-1092 (Parus-Serie) | |||
| 11735 | Kosmos-1168 (Parus-Serie) | |||
| 12091 | Kosmos-1226 (Parus-Serie) | |||
| 12803 | Kosmos-1304 (Parus-Serie) | |||
| 13065 | Kosmos-1339 (Parus-Serie) | |||
| 13301 | Kosmos-1383 (Parus-Serie) | |||
| 13916 | Kosmos-1447 (Parus-Serie) | |||
| 14450 | Kosmos-1506 (Parus-Serie) | |||
| 14973 | Kosmos-1553 (Parus-Serie) | |||
| 15055 | Kosmos-1574 (Parus-Serie) | |||
| 15751 | Kosmos-1655 (Parus-Serie) | |||
| 16510 | Kosmos-1727 (Parus-Serie) | |||
| 17066 | Kosmos-1791 (Parus-Serie) | |||
| 17359 | Kosmos-1816 (Parus-Serie) | |||
| 18129 | Kosmos-1861 (Parus-Serie) / RS-10 / RS-11 | |||
| 21089 | Kosmos-2123 (Parus-Serie) / RS-12 / RS-13 | 31.05.03 gehört | ||
| 21902 | Kosmos-2181 (Parus-Serie) | |||
| 21980 | Kosmos-2191 (Parus-Serie) | |||
| 22307 | Kosmos-2230 (Parus-Serie) | |||
| 23603 | Kosmos-2315 (Parus-Serie) | |||
| 20103 | Nadeshda-1 (Zikada-Serie) | |||
| 20508 | Nadeshda-2 (Zikada-Serie) | |||
| 21152 | Nadeshda-3 (Zikada-Serie) | |||
| 23179 | Nadeshda-4 (Zikada-Serie) | |||
| 25567 | Nadeshda-5 (Zikada-Serie) | |||
| 26384 | Nadeshda-6 (Zikada-Serie) | |||
| 27534 | Nadeshda-7 (Zikada-Serie) | |||
| 23463 | Zikada (Zikada-Serie) | 04.06.02 gehör | ||
| 25735 | Terriers | |||
| 150.012 | - | CERTO (Coherent Electromagnetic Radio Tomography) | ||
| 22698 | RADCAL / P92-1 | Tracking Beacon 1W | ||
| 25157 | GFO 1 / Geosat Follow-On | |||
| 25991 | DMSP F15 / USA 147 | 08.12.13 gehört | ||
| 26930 | Picosat-9 / P97-1 | |||
| 29047 | FormoSat-3A / COSMIC-3A | |||
| 29048 | FormoSat-3B / COSMIC-3B | |||
| 29049 | FormoSat-3C / COSMIC-3C | 31.03.07 gehört | ||
| 29050 | FormoSat-3D / COSMIC-3D | |||
| 29051 | FormoSat-3E / COSMIC-3E | |||
| 29052 | FormoSat-3F / COSMIC-3F | |||
| 30775 | STPSat-1 | |||
| 32765 | C/NOFS / P00-3 | |||
| 39265 | Cassiope-1 | 30.08.15 gehört | ||
| 150.013 | 25634 | Argos / P91-1 | 720-2560bps | |
| 150.150 | 15595 | Geosat | Tracking Beacon | |
| 150.030 | 14084 | Kosmos-1464 (Parus-Serie) | NRZ 50bps | |
| 15077 | Kosmos-1577 (Parus-Serie) | |||
| 16493 | Kosmos-1725 (Parus-Serie) | |||
| 21230 | Kosmos-2142 (Parus-Serie) | |||
| 22487 | Kosmos-2233 (Parus-Serie) | |||
| 24304 | Kosmos-2334 (Parus-Serie) | |||
| 24953 | Kosmos-2346 (Parus-Serie) | |||
| 25590 | Kosmos-2361 (Parus-Serie) | 27.01.05 gehört | ||
| 32052 | Kosmos-2429 (Parus-Serie) | 19.09.11 gehört | ||
|
150.05-154.00 MHz russisches Satellitenband |
||||
| 150.300 | 12879 | Kosmos-1312 (Geo-IK-Serie) | ||
| 13589 | Kosmos-1410 (Geo-IK-Serie) | |||
| 14521 | Kosmos-1510 (Geo-IK-Serie) | |||
| 15171 | Kosmos-1589 (Geo-IK-Serie) | |||
| 15821 | Kosmos-1660 (Geo-IK-Serie) | |||
| 16593 | Kosmos-1732 (Geo-IK-Serie) | |||
| 17177 | Kosmos-1803 (Geo-IK-Serie) | |||
| 19195 | Kosmos-1950 (Geo-IK-Serie) | |||
| 20196 | Kosmos-2037 (Geo-IK-Serie) | |||
| 20720 | Kosmos-2088 (Geo-IK-Serie) | |||
| 22282 | Kosmos-2226 (Geo-IK-Serie) | |||
| 25167 | Kosmos-2349 (Kometa-Serie) | PCM-TMS (Puls-Code-Modulation/Time-Multiplexed Switch) BW:ca.70kHz (Rückkehrfähiger Spionage-Foto-Satellit mit Filmkapsel, Funktionsende nach ca.45 Tagen) | ||
| 26552 | Kosmos-2373 (Kometa-Serie) | |||
| 28841 | Kosmos-2415 (Kometa-Serie) | 14.10.05 gehört | ||
| 150.400 | 25735 | Terriers | Tracking Beacon 500mW | |
| 153.420 | 11331 | Kosmos-1093 (Zelina-Serie) | Tracking Beacon 1W | |
| 14699 | Kosmos-1536 (Zelina-Serie) | |||
| 15494 | Kosmos-1626 (Zelina-Serie) | |||
| 15592 | Kosmos-1633 (Zelina-Serie) | |||
| 15944 | Kosmos-1674 (Zelina-Serie) | |||
| 16262 | Kosmos-1703 (Zelina-Serie) | |||
| 16326 | Kosmos-1707 (Zelina-Serie) | |||
| 16611 | Kosmos-1733 (Zelina-Serie) | |||
| 16986 | Kosmos-1782 (Zelina-Serie) | |||
| 19210 | Kosmos-1953 (Zelina-Serie) | |||
| 28352 | Kosmos-2406 (Zelina-2-Serie) | |||
| 153.480 | 10973 | Kosmos-1025 (Zelina-Serie) | Tracking Beacon 1W | |
| 13120 | Kosmos-1346 (Zelina-Serie) | |||
| 14819 | Kosmos-1544 (Zelina-Serie) | |||
| 15592 | Kosmos-1633 (Zelina-Serie) | |||
| 15889 | Kosmos-1666 (Zelina-Serie) | |||
| 16495 | Kosmos-1726 (Zelina-Serie) | |||
| 16719 | Kosmos-1743 (Zelina-Serie) | |||
| 16791 | Kosmos-1758 (Zelina-Serie) | |||
| 28352 | Kosmos-2406 (Zelina-2-Serie) | |||
| 153.600 | 13148 | Kosmos-1354 (Strela-2M-Serie) | Tracking Beacon 1W | |
| 14759 | Kosmos-1538 (Strela-2M-Serie) | |||
| 15031 | Kosmos-1570 (Strela-2M-Serie) | |||
| 15482 | Kosmos-1624 (Strela-2M-Serie) | |||
| 16011 | Kosmos-1680 (Strela-2M-Serie) | |||
| 16681 | Kosmos-1741 (Strela-2M-Serie) | |||
| 153.660 | 23431 | Kosmos-2298 (Strela-2M-Serie) | Tracking Beacon 1W | |
| 28419 | Kosmos-2408 (Strela-3-Serie) | |||
| 28420 | Kosmos-2409 (Strela-3-Serie) | |||
| 153.900 | 40358 | Kosmos 2502 (Lotos-S1-Serie) | 27.11.18 gehört | |
|
|
||||
| 162.000 | 31 | Transit-1B | ||
| 45 | Transit-2A | 140mW | ||
| 87 | Transit-3B / SN-4 / Lofti-1 | |||
| 446 | Anna-1B | 225mW | ||
| 670 | Transit-5B-1 / SN-39 | |||
| 705 | Transit 5E-3 | |||
| 899 | Explorer-22 / BE-2 | Ionospheric Beacon 100mW | ||
| 959 | Transit-5E-5 / SN-43 | |||
| 1328 | Explorer-27 / BE-3 | Ionospheric Beacon 100mW | ||
| 1726 | Explorer-29 / GEOS-1 | Ionospheric Beacon 250mW | ||
| 3093 | Explorer-36 / GEOS-2 | Ionospheric Beacon 300mW | ||
| 7734 | GEOS-3 | 400mW | ||
| 11604 | Magsat | |||
| 12843 | Shi Jian 2A | Sender für Studien der Ionosphäre | ||
|
|
||||
| 166.000 | 12319 | Kosmos-1249 (US-A-Serie) | ||
| 12409 | Kosmos-1266 (US-A-Serie) | |||
| 12783 | Kosmos-1299 (US-A-Serie) | |||
|
174-184 MHz chinesischer Bereich für Weltraumfunk |
||||
| 179.952 | 26481 | Zi Yuan-2A / Jiang Bing 3-1 | TRK, TLM Seitenbänder auf -25kHz,+15kHz | 09.06.03 gehört |
| 28470 | Zi Yuan-2C / Jiang Bing 3-3 | 18.11.04 gehört | ||
| 179.985 | - | FSW (Fanhui Shi Weixing) | Tracking Beacon (Rückkehrfähiger Spionage-Foto-Satellit mit Filmkapsel) | |
| 179.990 | 27550 | Zi Yuan-2B / Jiang Bing 3-2 | ||
| 180.000 | 5 | Vanguard-1 | ||
| 180.005 | 27431 | Feng Yun-1D | TRK, TLM Seitenbänder auf ±5kHz | 28.01.07 gehört |
| 180.006 | 25730 | Feng Yun-1C | TRK, TLM Seitenbänder auf ±5kHz | |
| 180.008 | 24834 | Feng Yun-2A | ||
| 26382 | Feng Yun-2B | |||
| 180.015 | 25940 | Zi Yuan-1A / CBERS-1 | TRK, TLM Seitenbänder auf -25kHz,+15kHz | 09.06.03 gehört |
| 28057 | Zi Yuan-1B / CBERS-2 | 15.01.05 gehört | ||
| 32062 | Zi Yuan-1B2 / CBERS-2B | 20.09.07 gehört | ||
| 180.030 | 5 | Vanguard-1 | ||
|
|
||||
| 183.538 | DeepSpace | Luna-9 | ||
| 183.600 | DeepSpace | Luna-4 | ||
| DeepSpace | Lunik-1 | |||
| DeepSpace | Lunik-2 | |||
| DeepSpace | Lunik-3 | |||
| DeepSpace | Luna-3 | |||
| DeepSpace | Mars-1 | |||
|
200-205 MHz russisches Satellitenband |
||||
| 204.560 | 11331 | Kosmos-1093 (Zelina-Serie) | ||
| 19210 | Kosmos-1953 (Zelina-Serie) | |||
| 204.640 | 10973 | Kosmos-1025 (Zelina-Serie) | ||
| 13120 | Kosmos-1346 (Zelina-Serie) | |||
| 204.800 | 13148 | Kosmos-1354 (Strela-2M-Serie) | ||
| 14759 | Kosmos-1538 (Strela-2M-Serie) | |||
| 15031 | Kosmos-1570 (Strela-2M-Serie) | |||
| 15482 | Kosmos-1624 (Strela-2M-Serie) | |||
| 16011 | Kosmos-1680 (Strela-2M-Serie) | |||
| 16681 | Kosmos-1741 (Strela-2M-Serie) | |||
|
215-260 MHz amerikanischer Bereich für Weltraumfunk |
||||
| 216.000 | 31 | Transit-1B | ||
| 45 | Transit-2A | 140mW | ||
| 87 | Transit-3B / Lofti-1 | |||
| 446 | Anna-1B | 225mW | ||
| 1310 | Surcal-2 | |||
|
|
||||
| 226.930 | - | Strela 3-Serie | 2400bps BPSK ID-Beeps 10W | |
|
|
||||
| 228.200 | 444 | Star Rad-1 | ||
| 590 | KH 4-21 | (Rückkehrfähiger Spionage-Foto-Satellit mit Filmkapsel) | ||
| 228.430 | 2866 | LES-5 | Beacon | |
| 231.500 | - | Resurs F1 | PCM-FM (Rückkehrfähiger Spionage-Foto-Satellit mit Filmkapsel) | |
| 232.000 | - | Resurs F1 | PPM-AM (Rückkehrfähiger Spionage-Foto-Satellit mit Filmkapsel) | |
| 232.400 | 192 | MIDAS-4 | ||
| 232.900 | 1941 | LES-3 | Beacon 10W | |
|
235-238 MHz Satellitenband |
||||
| 235.000 | 29 | TIROS-1 | Sender für TV-Bilder , 2s pro 500-Zeilen-Bild, BW:62,5kHz, 2W | |
| 63 | TIROS-2 | |||
| 162 | TIROS-3 | |||
| 226 | TIROS-4 | |||
| 309 | TIROS-5 | |||
| 397 | TIROS-6 | |||
| 604 | TIROS-7 | |||
| 716 | TIROS-8 | |||
| 978 | TIROS-9 | |||
| 1430 | TIROS-10 | |||
| 1982 | ESSA-1 / OT-3 | 2W | ||
| 2435 | ESSA-3 / TOS-A | 5W | ||
| 2757 | ESSA-5 / TOS-C | 5W | ||
| 3345 | ESSA-7 / TOS-E | 5W | ||
| 4345 | DIAL-MIKA / P068 | TLM | ||
| 235.150 | - | Gonez M-Serie | 18.05.15 gehört | |
| 236.010 | - | Gonez M-Serie | 18.05.15 gehört | |
| 236.750 | 2866 | LES-5 | TLM 800mW | |
| 8746 | LES-8 | TLM 800mW | ||
| 236.755 | 3431 | LES-6 | TLM 800mW | |
| 236.930 | - | Strela 3-Serie | 2400bps BPSK ID-Beeps 10W | |
| 236.997 | 1002 | LES-1 | (TLM)
stiller Träger 800mW [funktioniert nur noch im Sonnenlicht] |
27.11.18 gehört |
| 237.000 | 1360 | LES-2 | TLM 800mW | |
| 237.200 | - | unbk. Satellit im HEO | ||
| 237.800 | 63 | TIROS-2 | Sender für Infrarot-Daten 2W | |
| 162 | TIROS-3 | |||
| 226 | TIROS-4 | |||
|
|
||||
| 239.500 | 25902 | Foton-12 | 256kBit/s PCM-FM BW:ca.±250kHz, Signalspitzen auf ±130kHz | |
| 28686 | Foton M-2 | 15.06.05 gehört | ||
| 32058 | Foton M-3 | 25.09.07 gehört | ||
| 240.200 | 2935 | BioSat-2 | Rückkehrkapsel 2W | |
| 240.500 | 27382 | Kosmos-2387 (Kobalt-Serie) | PCM-FM (Rückkehrfähiger Spionage-Foto-Satellit mit Filmkapsel, Funktionsende nach ca.60 Tagen) | |
| 241.290 | - | Strela 3M/Rodnik-Serie | 2400bps BPSK ID-Beeps 10W | |
| 241.920 | - | Strela 3M/Rodnik-Serie | 2400bps BPSK ID-Beeps 10W | |
|
240-280 MHz UHF-MilSat im GEO, HEO und LEO |
||||
|
244.30-248.58 MHz russisches Wolna Satellitenband |
||||
| 244.5125 | 25364 | Kosmos-2353 (Strela 3-Serie) | 2400bps BPSK ID-Beeps 10W | |
| 27055 | Kosmos-2384 (Strela 3-Serie) | |||
| 27056 | Kosmos-2385 (Strela 3-Serie) | |||
| 27059 | Kosmos-2386 (Strela 3-Serie) | |||
| 27464 | Kosmos-2390 (Strela 3-Serie) | |||
| 27465 | Kosmos-2391 (Strela 3-Serie) | |||
| 27868 | Kosmos-2400 (Strela 3-Serie) | |||
| 27869 | Kosmos-2401 (Strela 3-Serie) | |||
| 28419 | Kosmos-2408 (Strela 3-Serie) | |||
| 28420 | Kosmos-2409 (Strela 3-Serie) | |||
| 32954 | Kosmos-2437 (Strela 3-Serie) | |||
| 32955 | Kosmos-2438 (Strela 3-Serie) | |||
| 32956 | Kosmos-2439 (Strela 3-Serie) | |||
| 28909 | Kosmos-2416 (Strela 3M/Rodnik-Serie) | |||
| 35498 | Kosmos-2451 (Strela 3-Serie) | |||
| 35499 | Kosmos-2452 (Strela 3M/Rodnik-Serie) | |||
| 35500 | Kosmos-2453 (Strela 3-Serie) | |||
| 37153 | Kosmos-2467 (Strela 3-Serie) | |||
| 38733 | Kosmos-2481 (Strela 3-Serie) | |||
| 245.000 | 37153 | Kosmos-2467 (Strela 3-Serie) | 2400bps BPSK ID-Beeps 10W | |
| 37154 | Kosmos-2468 (Strela 3M/Rodnik-Serie) | |||
| 38734 | Gonez D1M-3 | |||
| 38736 | Gonez D1M-4 | |||
| 245.1525 | 39059 | Kosmos-2484 (Strela 3M/Rodnik-Serie) | 2400bps BPSK ID-Beeps 10W | 21.01.13 gehört |
| 245.1575 | 23787 | Gonez D1-1 | 2400bps BPSK ID-Beeps 10W | |
| 23788 | Gonez D1-2 | |||
| 23789 | Gonez D1-3 | |||
| 24725 | Gonez D1-4 | |||
| 24726 | Gonez D1-5 | |||
| 24727 | Gonez D1-6 | |||
| 27058 | Gonez D1-7 | |||
| 27057 | Gonez D1-8 | |||
| 27060 | Gonez D1-9 | |||
|
|
||||
| 249.360 | 8747 | LES-9 | Beacon | |
| 250.150 |
21799 21808 21809 |
NOSS 2-2
(C) / USA 74 NOSS 2-2 (D) / USA 76 NOSS 2-2 (E) / USA 77 |
PSK BW:ca.60kHz | 04.04.05 gehört |
|
23862 23908 23936 |
NOSS 2-3
(D) / USA 120 NOSS 2-3 (C) / USA 121 NOSS 2-3 (E) / USA 122 |
22.10.03 gehört | ||
| 250.325 | - | unbk. Satellit | ||
| 250.775 | - | unbk. Satellit | ||
| 253.975 |
2015-058 GRACE_45 |
SNaP-3 (SMDC Nanosatellite Program) | Datenpakete, FM-Phonie | |
| 254.140 | 3431 | LES-6 | Beacon | |
| 258.150 | 21949 | Singleton-3 / USA 81 | PSK BW:ca.25kHz | 11.06.07 gehört |
| 258.480 | 2389 | OV3-3 |
stiller Träger 2W [Heatmap] [funktioniert nur noch im Sonnenlicht] |
02.12.18 gehört |
| 259.700 | 5492 | TTS-4 / TETR-4 | Tracking Beacon 500mW | |
|
|
||||
| 261.035 | 25364 | Kosmos-2353 (Strela 3-Serie) | 2400bps BPSK 10W | |
| 27055 | Kosmos-2384 (Strela 3-Serie) | |||
| 27056 | Kosmos-2385 (Strela 3-Serie) | |||
| 27059 | Kosmos-2386 (Strela 3-Serie) | |||
| 27464 | Kosmos-2390 (Strela 3-Serie) | |||
| 27465 | Kosmos-2391 (Strela 3-Serie) | |||
| 27868 | Kosmos-2400 (Strela 3-Serie) | |||
| 27869 | Kosmos-2401 (Strela 3-Serie) | |||
| 28419 | Kosmos-2408 (Strela 3-Serie) | |||
| 28420 | Kosmos-2409 (Strela 3-Serie) | |||
| 32954 | Kosmos-2437 (Strela 3-Serie) | |||
| 32955 | Kosmos-2438 (Strela 3-Serie) | |||
| 32956 | Kosmos-2439 (Strela 3-Serie) | |||
| 28909 | Kosmos-2416 (Strela 3M/Rodnik-Serie) | |||
| 35498 | Kosmos-2451 (Strela 3-Serie) | |||
| 35499 | Kosmos-2452 (Strela 3M/Rodnik-Serie) | |||
| 35500 | Kosmos-2453 (Strela 3-Serie) | |||
| 37153 | Kosmos-2467 (Strela 3-Serie) | |||
| 38733 | Kosmos-2481 (Strela 3-Serie) | |||
| 261.0375 | 24726 | Gonez D1-5 | 2400bps BPSK 10W | 07.03.10 gehört |
| 32956 | Kosmos-2439 (Strela 3-Serie) | 16.08.08 gehört | ||
|
262.85-263.15 MHz russisches Wolna Satellitenband |
||||
| 262.9125 | 23787 | Gonez D1-1 | 2400bps BPSK 10W | 10.08.12 gehört |
| 24727 | Gonez D1-6 | |||
| 27058 | Gonez D1-7 | 10.08.12 gehört | ||
| 27060 | Gonez D1-9 | 01.04.08 gehört | ||
| 263.000 | 23788 | Gonez D1-2 | 2400bps BPSK 10W | 10.08.12 gehört |
| 23789 | Gonez D1-3 | 10.08.12 gehört | ||
| 27058 | Gonez D1-7 | 07.01.10 gehört | ||
| 263.0875 | 27058 | Gonez D1-7 | 2400bps BPSK 10W | |
| 27060 | Gonez D1-9 | |||
| 263.090 | 24725 | Gonez D1-4 | 2400bps BPSK 10W | 08.11.05 gehört |
|
264.25-265.15 MHz russisches Wolna Satellitenband |
||||
| 264.150 | 24725 | Gonez D1-4 | 2400bps BPSK 10W | |
| 264.395 | - | Gonez D1-? | 2400bps BPSK 10W | |
| 264.400 | 24725 | Gonez D1-4 | 2400bps BPSK 10W | |
| 24726 | Gonez D1-5 | 02.03.06 gehört | ||
| 264.575 | 24727 | Gonez D1-6 | 2400bps BPSK 10W | 10.08.12 gehört |
| 264.600 | 23788 | Gonez D1-2 | 2400bps BPSK 10W | 28.07.01 gehört |
| 264.750 | 23787 | Gonez D1-1 | 2400bps BPSK 10W | |
| 27057 | Gonez D1-8 | |||
| 264.7875 | 27058 | Gonez D1-7 | 2400bps BPSK 10W | |
| 27060 | Gonez D1-9 | |||
| 264.825 | 23787 | Gonez D1-1 | 2400bps BPSK 10W | 31.01.08 gehört |
| 264.900 | 23789 | Gonez D1-3 | 2400bps BPSK 10W | |
| 24727 | Gonez D1-6 | 07.03.10 gehört | ||
| 27057 | Gonez D1-8 | 09.08.12 gehört | ||
| 264.980 | 27060 | Gonez D1-9 | 2400bps BPSK 10W | 09.08.12 gehört |
| 265.0625 | 23788 | Gonez D1-2 | 2400bps BPSK 10W | 26.01.08 gehört |
| 265.1375 | 23789 | Gonez D1-3 | 2400bps BPSK 10W | |
|
|
||||
| 265.9125 | 28909 | Kosmos-2416 (Strela 3M/Rodnik-Serie) | 9600bps GMSK 10W | |
| 265.950 | 35499 | Kosmos-2452 (Strela 3M/Rodnik-Serie) | 9600bps GMSK 10W | 16.02.13 gehört |
| 37154 | Kosmos-2468 (Strela 3M/Rodnik-Serie) | 16.02.13 gehört | ||
|
290.00-291.20 MHz russisches Satellitenband |
||||
| 290.150 | - | Strela 3M/Rodnik-Serie | 2400bps BPSK ID-Beeps 10W | 15.05.15 gehört |
| 290.8875 | - | Strela 3M/Rodnik-Serie | ID-Beeps | |
| 290.950 | 39761 | Kosmos 2496 (Strela 3M/Rodnik-Serie) | Daten (Sendedauer von 7 min) | 05.11.18 gehört |
| 39762 | Kosmos 2497 (Strela 3M/Rodnik-Serie) | 07.08.18 gehört | ||
| 39763 | Kosmos 2498 (Strela 3M/Rodnik-Serie) | |||
| 40920 | Kosmos 2507 (Strela 3M/Rodnik-Serie) | |||
| 40921 | Kosmos 2508 (Strela 3M/Rodnik-Serie) | 07.08.18 gehört | ||
| 40922 | Kosmos 2509 (Strela 3M/Rodnik-Serie) | |||
| 290.9875 | - | Strela 3M/Rodnik-Serie | ID-Beeps | |
| 291.050 | - | Strela 3M/Rodnik-Serie | 2400bps BPSK ID-Beeps 10W | 15.05.15 gehört |
|
|
||||
